7

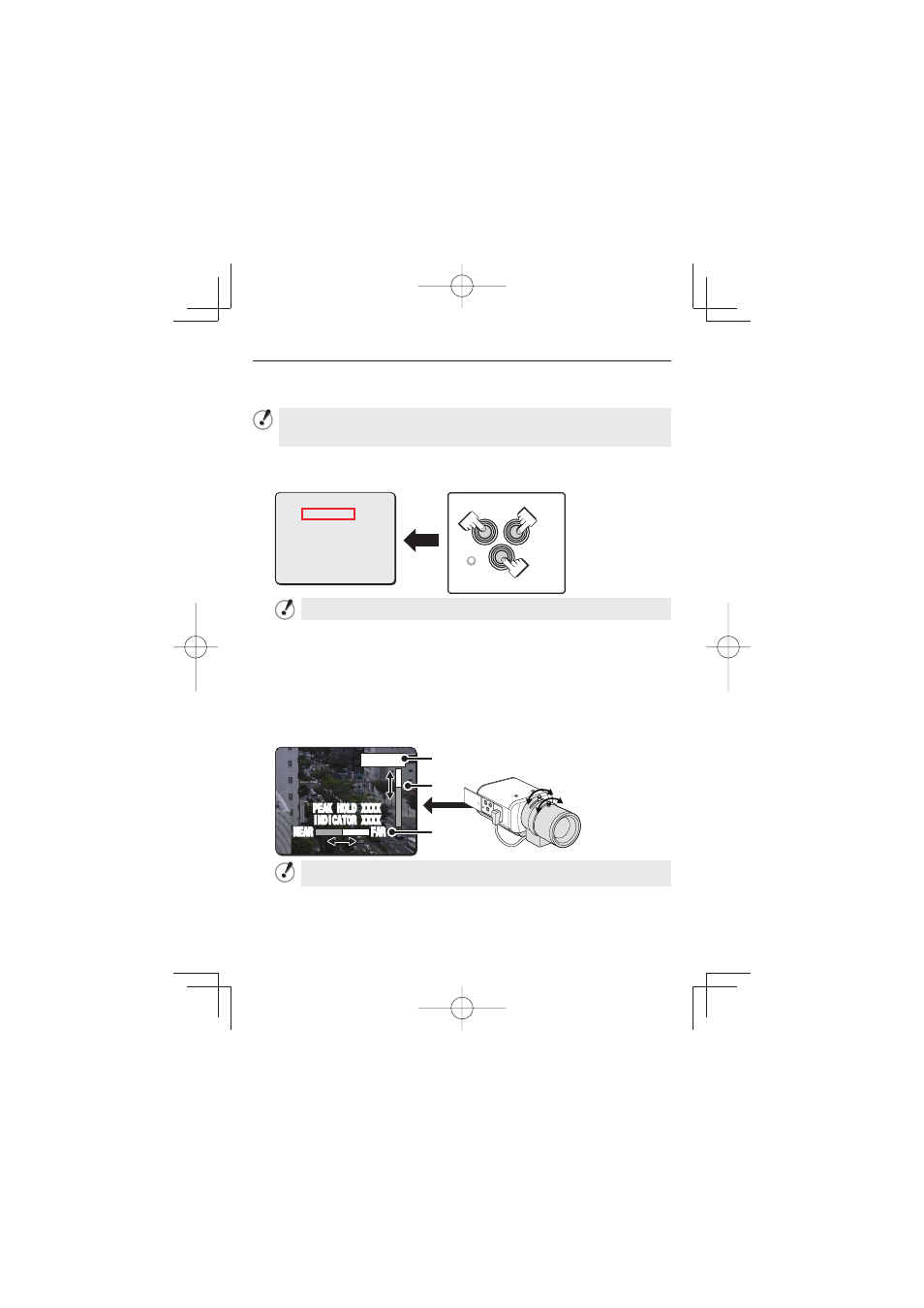

Lens Adjustment
For high-resolution megapixel images, the focus assist function is useful to obtain a
precise focus because otherwise it is extremely difficult.
If you are using a varifocal lens, adjust the focus using the following procedure.
If the focus assist function does not work properly because the camera
produces too dark or too bright video images, perform iris adjustment in
advance.
Press the SET button for 2 seconds or more.
The monitor now shows the SELECT MENU screen.
NEAR FAR
SET
RESET
SELECT MENU
FOCUS ASSIST
IRIS
FIRMWARE VERSION
NEAR UP
FAR DOWN
SET SELECT
On the SELECT MENU screen, all information is displayed in English.
Select [FOCUS ASSIST] using the NEAR/FAR button and press the SET
button.
The monitor now shows the focus adjustment screen.
Use the zoom lever of the lens to adjust the angle of view and the focus
lever of the lens to set the FA bar
to the maximum level.
When the subject comes into focus, the color of the status indicator
“FOCUSING” turns from black to orange.
If the use of the focus lever does not provide precise focusing, follow the “Fine-
adjusting focus” procedure on the next page.
FOCUSING
PEAK HOLD XXXX
INDICATOR XXXX
NEAR FAR
FOCUSING
PEAK HOLD XXXX
INDICATOR XXXX
NEAR FAR
PEAK HOLD: Shows the value of the maximum focus level.
INDICATOR: Shows the value of the current focus level.
