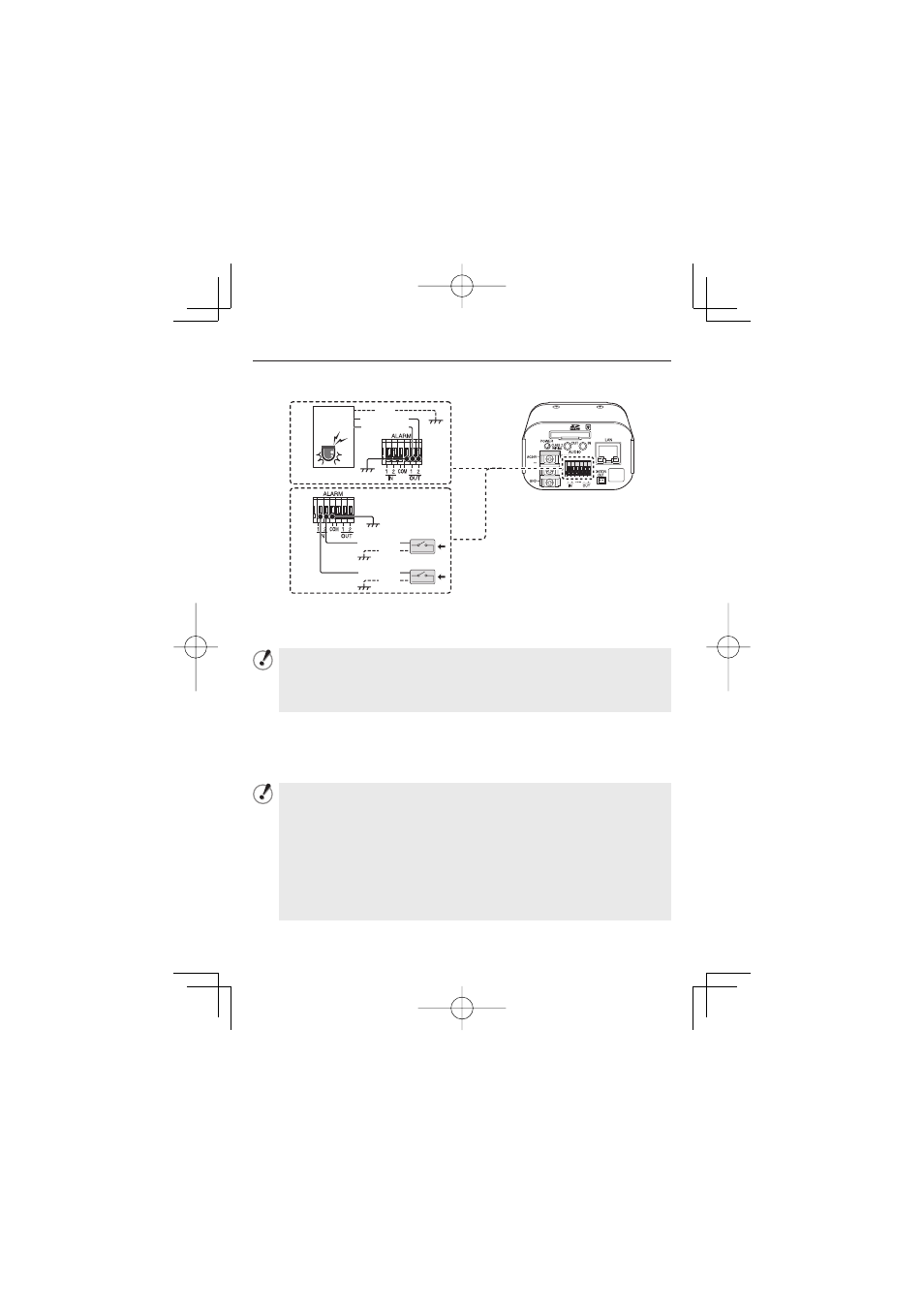

To connect a cable, while pushing the protrusion of the terminal, insert the cable into
the opening and then release it.

External
peripheral
device

Alarm input

signal

Alarm input

signal

(COM)

(COM)

(COM)

(ALARM OUT 1)

(ALARM OUT 2)

(ALARM IN 1)

(ALARM IN 2)

Alarm Output Terminal Connection

Connect a buzzer, lamp, or other alarm device to one of the alarm output terminals
(ALARM OUT 1 or 2).

After connecting an alarm device, configure the output conditions
for the corresponding alarm output terminal (ALARM OUT 1 or 2) via
network operation on the ALARM SETTINGS screen.
Alarm output terminal configuration is also possible via remote
operation.

Alarm Input Terminal Connection

Connect an alarm switch, infrared sensor, or other external device to one of the
alarm input terminals (ALARM IN 1 or 2).

After connecting an alarm device, configure the input conditions for
the corresponding alarm input terminal (ALARM IN 1 or 2) via network
operation on the ALARM SETTINGS screen.

VCC-HD2500P/HD2500/HD2300P/HD2300:
To use the alarm input terminals as Day/Night switching terminals, follow
the steps below.

Under [DAY/NIGHT], set [DAY/NIGHT] to “COLOR” and select the
terminal you want to use in [EXT ALARM].
On the ALARM SETTINGS screen, in [POLARITY], select the signal
polarity of the alarm input terminal.
