9
Mode Setting

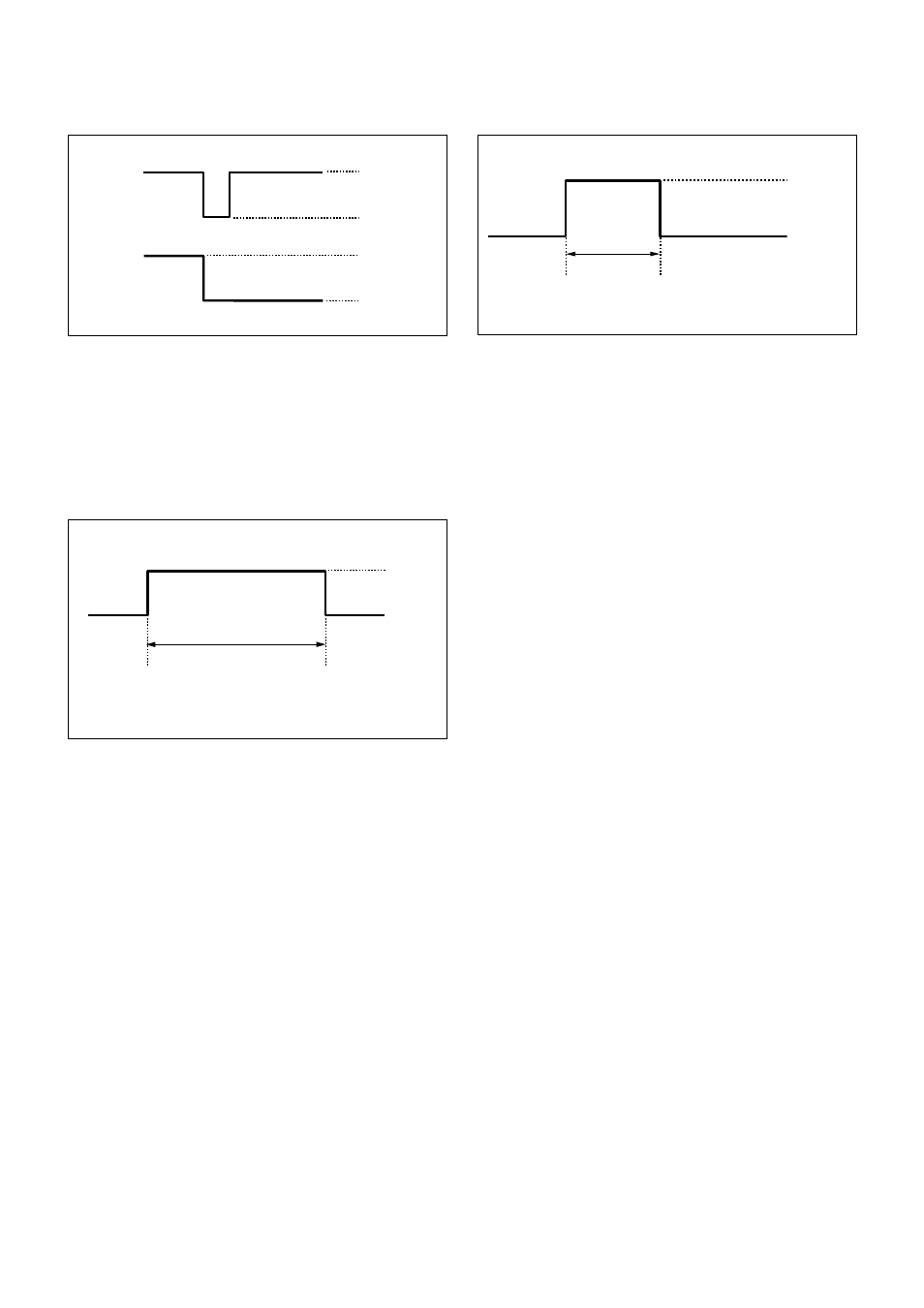

Specifications of the External
HD/VD Outputs
The amplitude level is the typical value when
terminated with 10 k
Ω. The external HD and VD can
be output when you set the INT/EXT switch to INT.
Specifications of the WEN
Output
The amplitude level is the typical value when
terminated with 10 k
Ω. When the partial scanning is
used, the pulse width is less than the above value.
4.5V
0V
625 H(1N)
312.5 H(2I)
2 µ sec to 1/4 sec
4 to 5.0V
0 to 1.0V
4.5V
0V
4.5V
0V
HD
VD
Specifications of the Trigger
Pulse
• Input impedance; 10 k
Ω or more.
• The voltage and pulse width used are measured at pin
11 of a 12-pin multi-connector on the rear panel.
