Example of usage of the partial scanning mode, 12 mode setting – Sony XC-HR300 User Manual
Page 12
12
Mode Setting
Example of Usage of the Partial
Scanning Mode

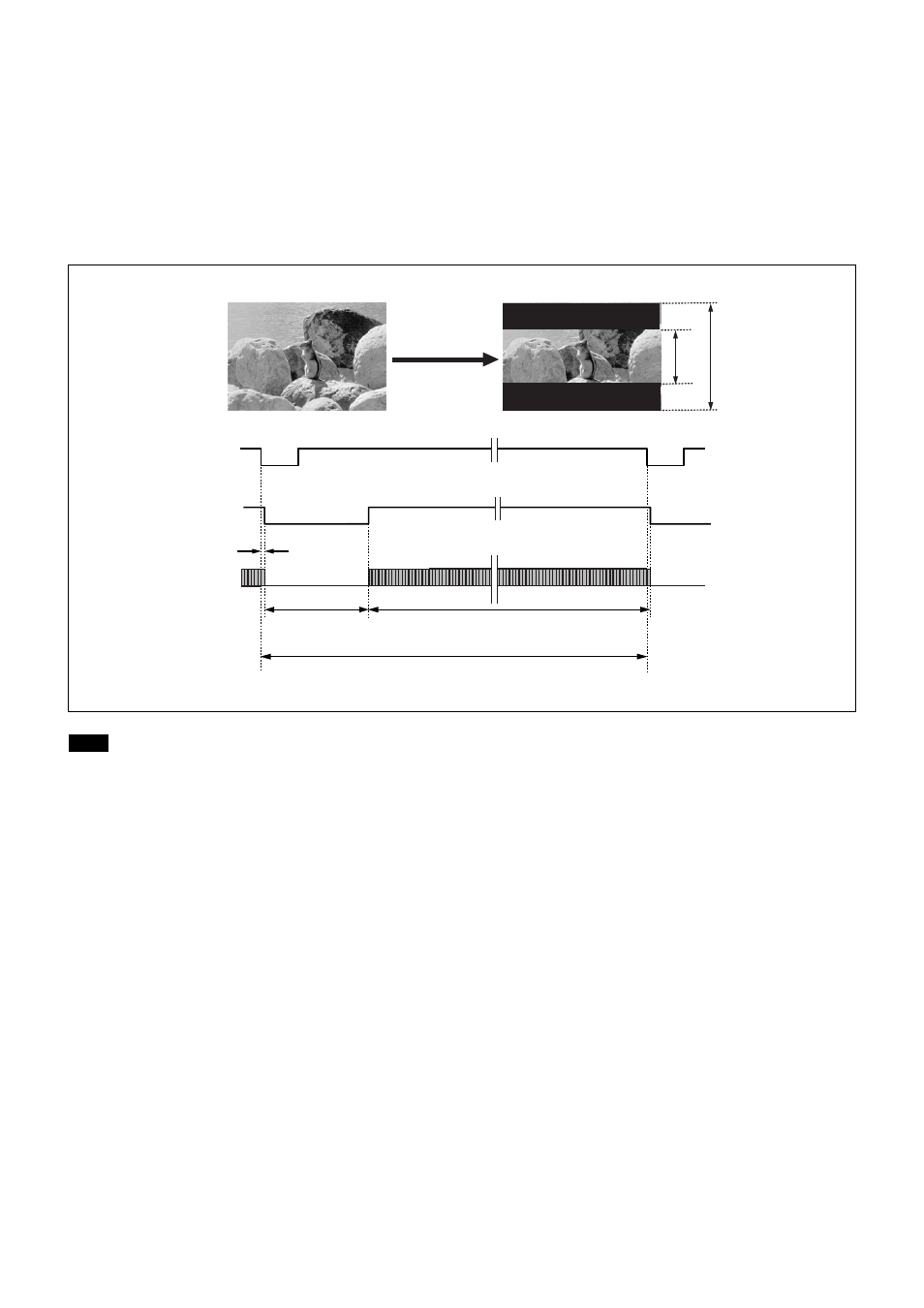

As shown in the table on the next page, you can
increase the frame rate by setting the partial scanning
mode switch and the external VD frequency. The
image obtained is centered as shown below.
Note
In the Restart/Reset mode, the video out signals are
output about 1H later than the external VD.
External VD
VBLKG
1 H
580 line
X line
BLKG interval
Tb [line]
Effective image interval X [line]
External VD frequency Tv [line]
Video out
