Overview

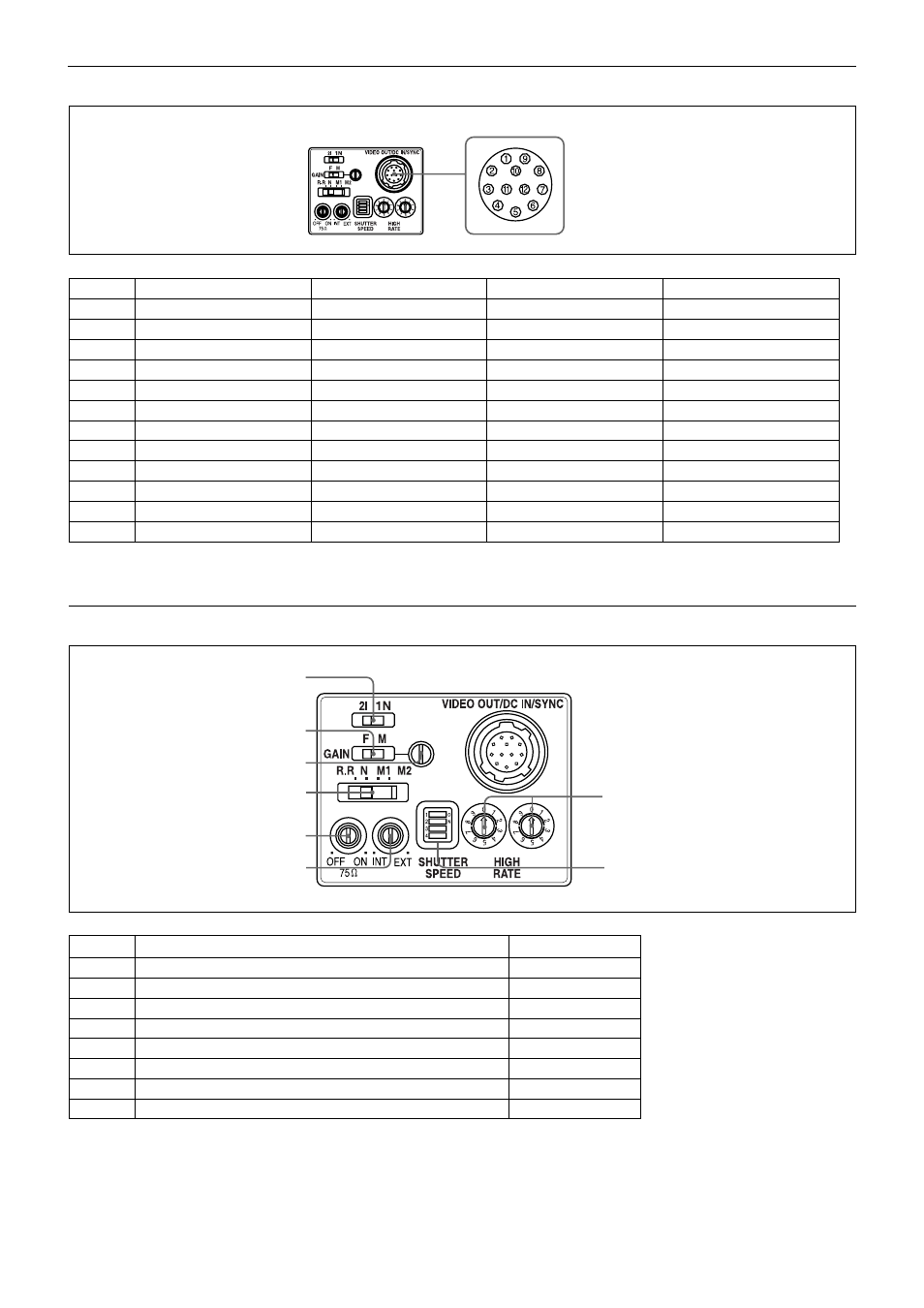

VIDEO OUT/DC IN/SYNC connector pin assignment
Pin No. Camera sync output External Sync (HD/VD) Restart/Reset External trigger shutter
1 Ground Ground Ground Ground
2 +12V DC +12V DC +12V DC +12V DC
3 Video output 1 (Ground) Video output 1 (Ground) Video output 1 (Ground) Video output 1 (Ground)
4 Video output 1 (Signal) Video output 1 (Signal) Video output 1 (Signal) Video output 1 (Signal)
5 HD output (Ground) HD input (Ground) HD input (Ground) HD input (Ground)
6 VD output (Signal) HD input (Signal) HD input (Signal) HD input (Signal)
7 VD output (Signal) VD input (Signal) Reset (Signal) VD input (Signal)
8 Video output 2 (Ground) Video output 2 (Ground) Video output 2 (Ground) Video output 2 (Ground)
9 Video output 2 (Signal) Video output 2 (Signal) Video output 2 (Signal) Video output 2 (Signal)
10 WEN output 2 (Signal) — — WEN output (Signal)
11 Trigger pulse input (Signal) — — Trigger pulse input (Signal)
12 Ground VD input (Ground) Ground* Ground*
Rear panel
Factory setting mode of rear panel
Number Switch name Factory-setting mode
1 Read mode selector 2I
2 GAIN switch F
3 Manual gain control –**
4 Restart reset/External Trigger Shutter mode switch N
5 75 Ω termination switch ON
6 HD/VD signal input/output switch EXT
7 SHUTTER SPEED setting DIP switch OFF (All set to the left)
8 HIGH RATE (Partial scanning) controls 0
1
2
3
4
5
6 7
8
* The common grounds for 7, 10 and 11 pins.
** The factory setting is set to constant sensitivity for a standard subject.
When the GAIN switch is set to “M” (Manual), you can change the gain level in a range from 0 to 18 dB.
