24
Mode Setting

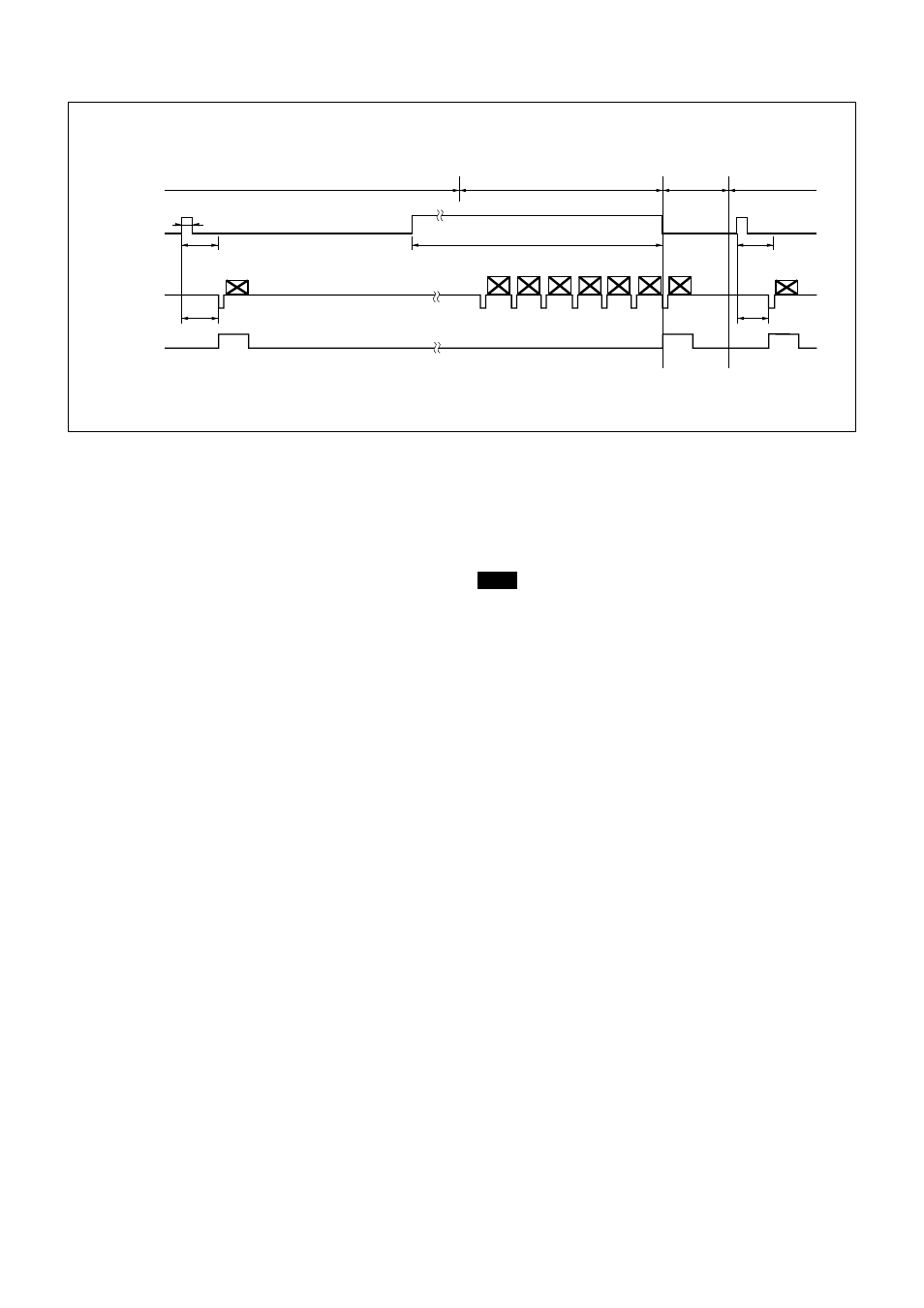

For setting the shutter speed using the DIP switches
*1 This is a signal input from outside.
*2 The exposure time (Te) is determined by the
setting of the DIP switches.
For details, see Page 14.
*3 The normal operation state is carried out when the
trigger pulse width is 1/3 s or more. The trigger
falling edge restores the external trigger shutter
operation. In this case, the area between the falling
edge of a trigger pulse and the subsequent 50 ms
period is an external trigger input inhibition area.
There is no guarantee of operation for any triggers
input in this period.
T* 4
External trigger shutter operation Normal operation* 3
Mode transition state
External input
inhibition area
(50 ms)
External trigger
shutter operation
Exposure time (Te)* 2
Exposure time
(Te)*
2
Trigger pulse width* 3
312.5 H (2I mode)
625 H (1N mode)
Trigger* 1
Video out 1* 5
Video out 2
WEN
250 H (EIA)
293 H (CCIR)
T* 4
2 µ s to 250 ms
*4 The image is output at the shortest timing from the
trigger rising edge according to the DIP switch
setting.
*5 Video out 2 is output only in the 2I mode.
Note
An image is not output correctly when the next trigger
is input before the image for the previous trigger is
output.
