Southbend 6" x 18" SURFACE GRINDER SB1029 - Manual (Page 50)

-48-

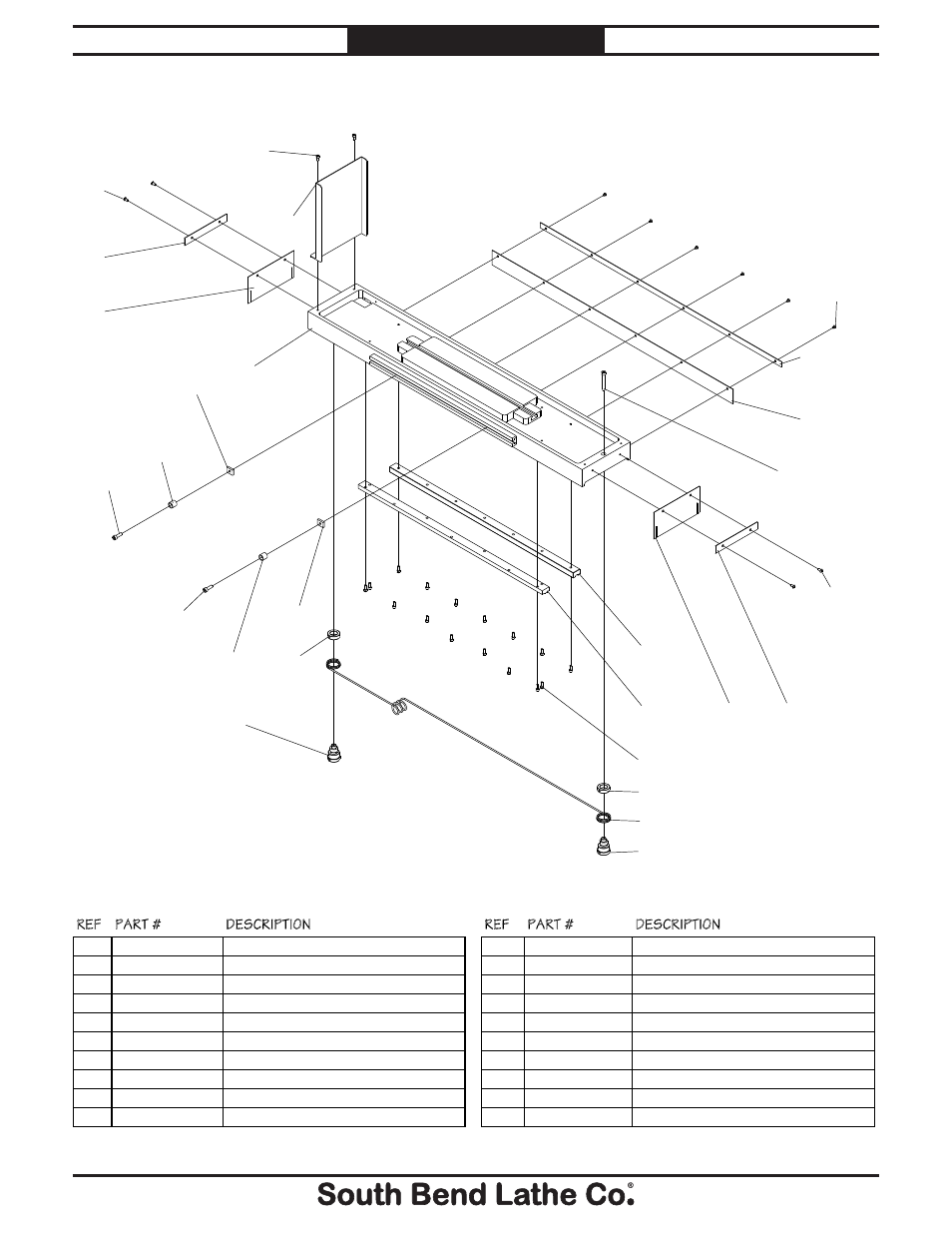

For Machines Mfg. Since 8/09 Model SB1029 P A R T S
Table
101
102
103
104
105
105
106
107
108
108
109
109
110
110
111
111
112
113
121
122
123
123
124
125
125
126
127
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 PSB1029101 TABLE 111 PSB1029111 STOP PIN
102 PSB1029102 FRONT RAIL 112 PSB1029112 RIGHT CABLE SPOOL
103 PSB1029103 REAR RAIL 113 PSB1029113 DUST GUARD
104 PSB1029104 LEFT CABLE SPOOL 121 PCAP26M CAP SCREW M6-1 X 12
105 PSB1029105 CABLE PULLEY COLLAR 122 PCAP01M CAP SCREW M6-1 X 16
106 PSB1029106 WIPER 123 PCAP31M CAP SCREW M8-1.25 X 25
107 PSB1029107 FIXED PLATE 124 PCAP35M CAP SCREW M8-1.25 X 60
108 PSB1029108 RUBBER PLATE 125 PFH30M FLAT HD SCR M5-.8 X 8
109 PSB1029109 FIXED PLATE 126 PBHS09M BUTTON HD CAP SCR M6-1 X 12
110 PSN03M SQUARE NUT M8-1.25 127 PSB1029127 CABLE
