-17-
Table
The table can be adjusted for height, rotation,
and angle. The W1670 adds the fourth adjust-
ment of table distance from column.
Note: Table or table support parts are not
interchangeable between the W1669 and the
W1670 drill presses (see Figures.27.and.28).
To.adjust.the.table,.do.these.steps:
1... Loosen the table lock lever.
2. Turn the hand crank to raise or lower the
table.
3. Tighten the table lock lever.
4. For the W1670, loosen the table tilt lock
bolt (see Figure.29); or for the W1669,
loosen the cap screw.
5. Turn the index pin draw nut clockwise and
draw the index pin out of the casting until
you can rotate the table to your desired
angle (see Figure.29).
Note: Use this index pin only for indexing
the table to the “Zero degree” position.
Note: To index the table back to the zero
position, back off the draw nut, turn the
table to zero, tap the index pin back into
the casting, and tighten the table tilt lock
bolt.
6. Tighten the tilt table lock bolt or cap
screw, and double check your angle.

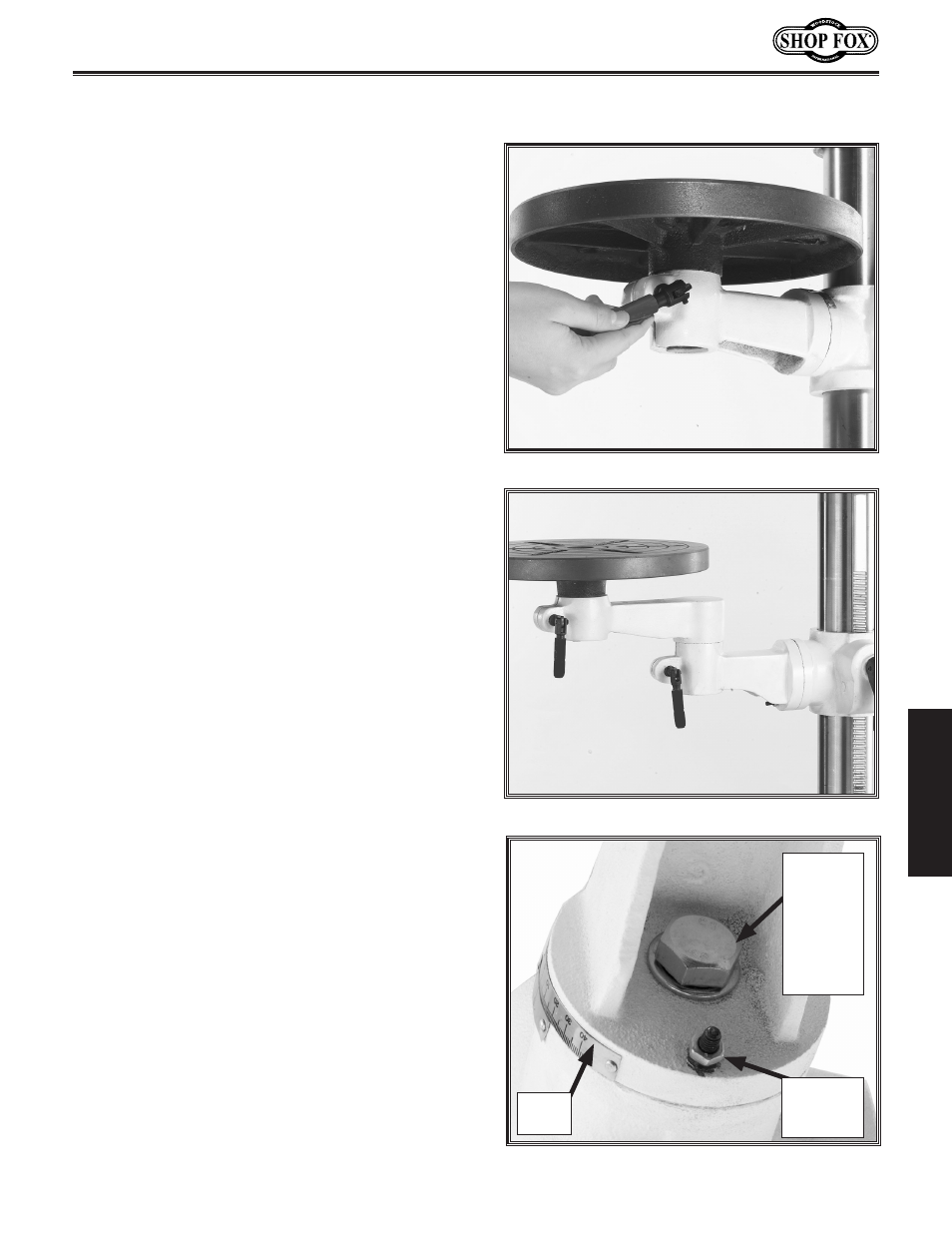

Figure.27..W1669 Table support assembly.
Figure.28..W1670 Table support assembly.
Figure.29..Tilt mechanism and lock bolt.
Table-Tilt
Lock Bolt
(W1670)
or
Table-Tilt
Lock Cap
Screw
(W1669)
Index Pin
and
Draw Nut
Tilt
Scale
ADJUSTMENTS
