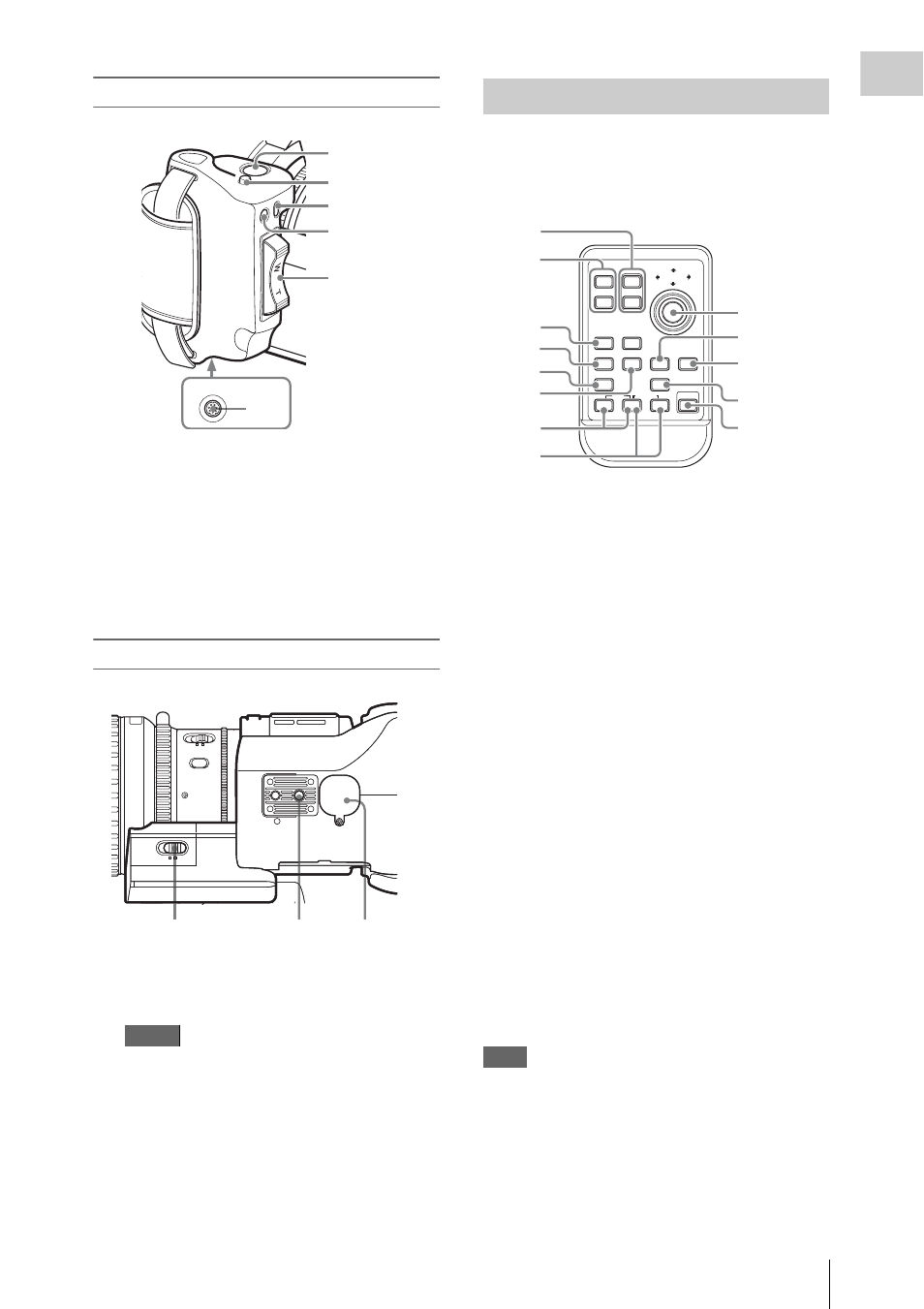

Controls on the grip
76. REC START/STOP button (page 33)
77. RELEASE (grip release) button (page 27)
78. REC REVIEW button (page 56)
79. EXPANDED FOCUS button (page 47)
80. Servo zoom lever (page 45)
81. LENS REMOTE connector (page 46)
Bottom
82. ZOOM switch (page 45)
83. Tripod receptacle
Check that the size of the hole matches the
screw of the tripod. If they do not match, the
camcorder cannot be attached to the tripod
securely.
84. Backup battery holder (page 118)
The buttons without remarks can be used in the
same manner as the corresponding buttons on the
camcorder.
1. ZOOM T/W (telephoto/wide-angle)
button
2. SHOTMARK 1 and 2 buttons (page 55,
page 86)
3. THUMBNAIL button
4. PREV (previous clip jump) button
5. F REV (fast reverse) button
6. PLAY/PAUSE button
7. REC (record) buttons
Press the z button together with the unmarked
button (safety button) to start recording.
8. REC PAUSE buttons
Press the X button together with the unmarked
button (safety button) to pause recording.
9. PUSH SET button (four-way arrow key)
It functions the same as the SEL/SET button
(joystick) on the camcorder.
10. NEXT button
11. STOP button
12. F FWD (fast forward) button
13. PUSH AF button
Note
The SUB CLIP button does not function with this
camcorder.
When you use the remote commander, see “Using the
IR Remote Commander” on page 27.
Note
COMPO
NENT OUT
EXP AND ED
FO CUS
REC
REV IEW
RELE ASE
STAR
T/
STOP
LENS
REMOTE
81
76
77
78
79
80
MANU AUTO
FOCUS
MANU SERV O
ZOOM
PUSH AF
MANU SERV O
ZOOM
82 83 84
