_ using the DVR
using the DVR
IP, Gateway, Subnet Mask, and DNS
- For : You can directly input IP address,
Gateway, Subnet Mask and DNS.
- For : IP address, Gateway, and Subnet
Mask are set automatically.
- For : IP address, Gateway, and Subnet Mask
are set automatically.
User ID, Password : In case you selected ADSL, provide the
“user id” and its “password”.
DNS server for < Dynamic IP> and can be set by user only if you selected .
When the connection setup is done, press .
setting the protocol
Use the up/down buttons (▲▼) in window to
move to , and press [enter]
button.
Select .
Use direction buttons (▲▼_ +) to move to a desired
item, and set the value.
Protocol Type : Select the protocol type between TCP and
UDP.
If selected UDP, selections of Port (TCP), Port (UDP), and Unicast/
Multicast are activated.
Port (TCP) : Initially, <554~557> is set. It increases / decreases by 4.
- TCP: It has better stability and lower speed when compared to UDP, and recommended for internet
environments.
Port (UDP) : Initially, <8000~8159> is set. It increases / decreases by 160.
- UDP : It has less stability and faster speed when compared to TCP, and recommended for local area
network (LAN) environments.
Unicast, Multicast : Select one between Unicast and Multicast.
If selected Multicast, Multicast IP and TTL are activated.
- Unicast : Transfers data (UDP, TCP) individually to each connecting client.
- Multicast : Multiple client can receive the data (only in UDP) without putting additional traffi c load to the
network.
Multicast IP : User can directly input.
TTL : Select from 0 ~ 255. Initial value for the TTL is set to <5>.
Webviewer Port : Enter the port number for the Web Viewer. Initially, it is set to <80>.
When the protocol setup is done, press .
~
~
M `
.
.
.
.
~
`
~
~
~
~
~
~
.

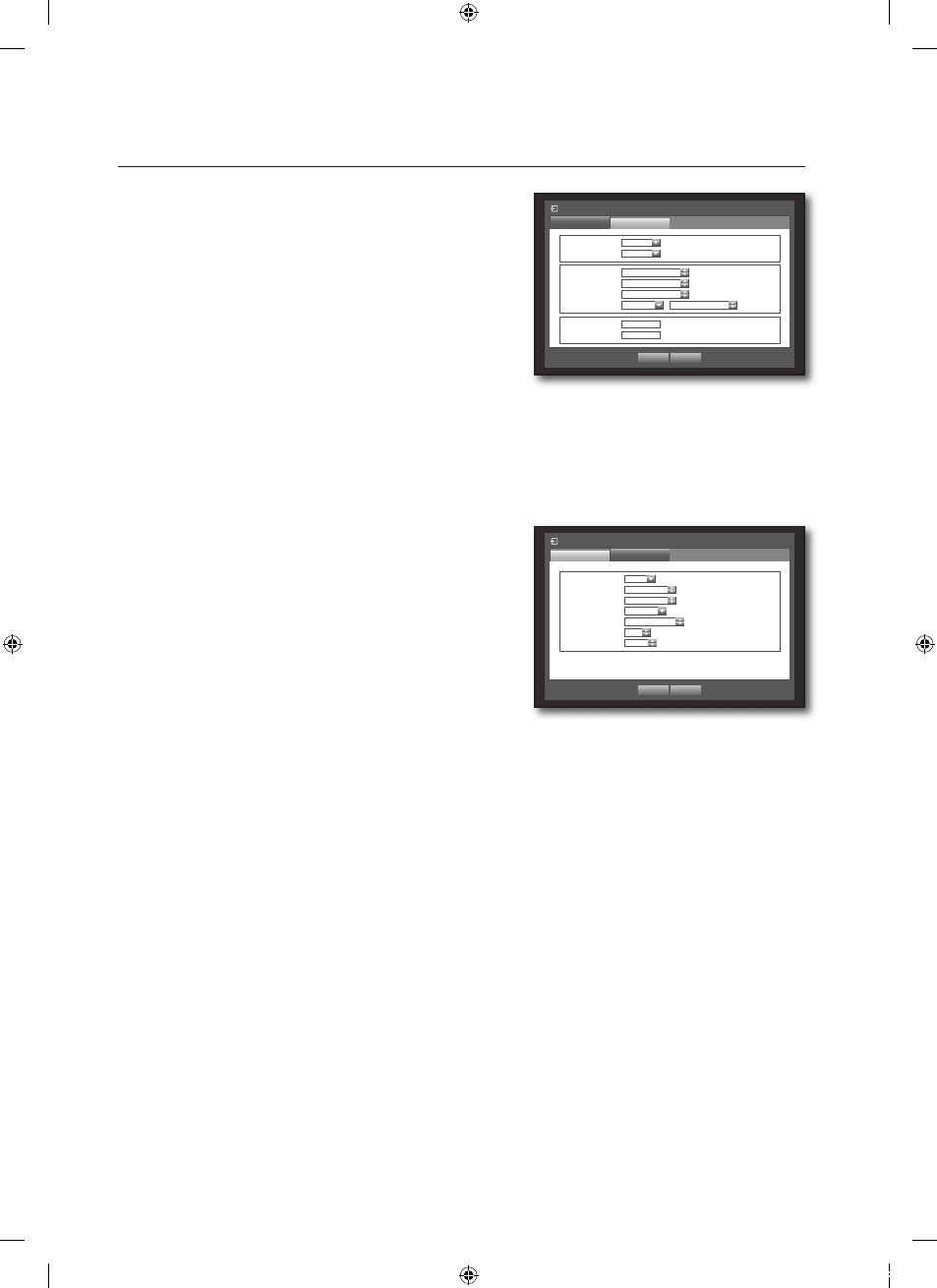

Connection Mode
Connection Protocol
 Connection Mode ADSL
 Bandwidth 600kbps
OK Cancel
 IP 192.168. 1.200
 Gateway 192.168. 1. 1
 Subnet Mask 255.255.255. 0
 DNS Manual 168.126. 63. 1
 User ID ID
 Password ********
Connection Mode
Protocol Connection
 Protocol Type TCP
 Port(TCP) 554 ~ 557
 Port(UDP) 8000 ~ 8159
 Unicast/Multicast Unicast
 Multicast IP 224.126. 63. 1
 TTL 5
 Webviewer Port 80
OK Cancel
