English _1
using the dvr

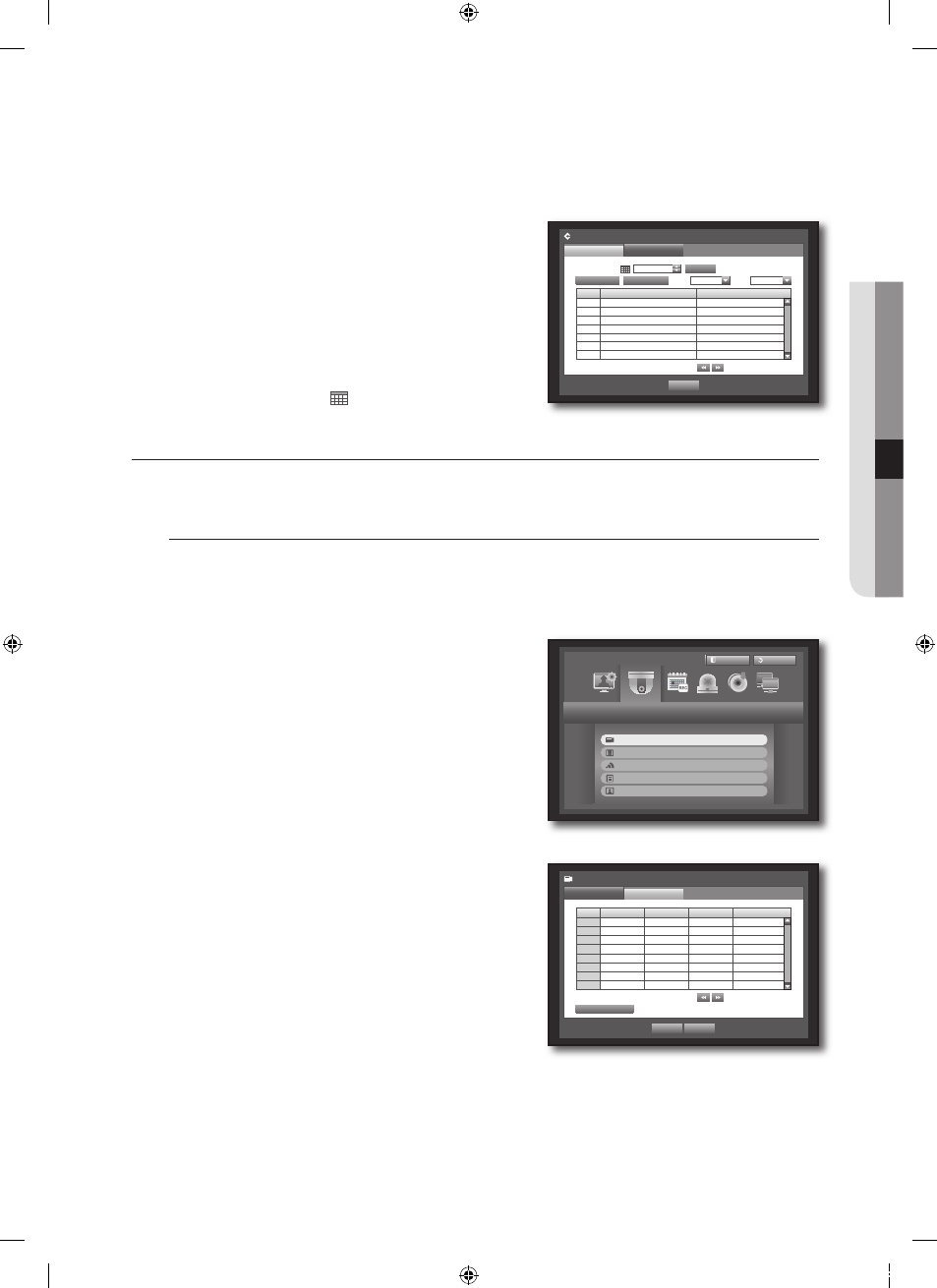

event Log
Event log shows recorded events on alarms, motion detections and video loss.
It also shows the log and its timestamp.
Using the mouse may help easy setup.
Use the up/down buttons (▲▼) in window to
move to , and press [enter] button.
Select .
Use direction buttons (▲▼_ +) to move to the desired
item.
Set Search Day, Channel and Type and the press
Refer to “ Using the Calendar”. (Page 35)
Click on the calendar < > to display the calendar window.
setting the device
You can setup Camera, Storage Device, Remote Device, POS Device and Monitor.
camera
setting the camera
You can set Video, Audio, Channel Name and Dwell Time of a Camera.
Using the mouse may help easy setup.
Press the [menu] button on the remote control or front
panel.
Use the left/right button (_ +) to select .
Device setting menu is selected.
Use the up/down buttons (▲▼) to move to ,
and press [enter] button.
Select .
A window for setting Video, Audio, Channel Name and
Dwell Time of a Camera appears.
Use direction buttons (▲▼_ +) to move to a desired
item, and set the value.
Video
- : You can turn ON/OFF the selected
channel’s camera.
- : Shows information other than the video of
the selected channel.
For privacy protection, it does not display the video while the recording continues.
- : Shows nothing but an empty screen while the recording continues.
.
.
.
.
`
1.
.
.
.
.
~
`
No. Log List Date/Time
7 Motion Detection [CH 7] 2009-01-01 00:02:18
6 Motion Detection [CH 6] 2009-01-01 00:02:18
5 Motion Detection [CH 5] 2009-01-01 00:02:18
4 Motion Detection [CH 4] 2009-01-01 00:02:18
3 Motion Detection [CH 3] 2009-01-01 00:02:18
2 Motion Detection [CH 2] 2009-01-01 00:02:18
1 Motion Detection [CH 1] 2009-01-01 00:02:18
Log Information
Event Log
System Log
First Page
Search Day 2009-01-01
Previous
Previous/Next Page
CH All CHs Type View all
Search
Last Page
Device
Logout Exit
Camera
Storage Device
Remote Device
POS Device
Monitor
CH Video  Audio  CH Name SEQ-Dwell Time 
1 ON  OFF  CAM 01 5 sec 
2 ON  OFF  CAM 02 5 sec 
3 ON  OFF  CAM 03 5 sec 
4 ON  OFF  CAM 04 5 sec 
5 ON  OFF  CAM 05 5 sec 
6 ON  OFF  CAM 06 5 sec 
7 ON  OFF  CAM 07 5 sec 
8 ON  OFF  CAM 08 5 sec 
Camera
Camera PTZ
Previous/Next Page
Screen Setup
OK Cancel
