ASUS A8V-X 1-27
Never connect a 1394 cable to the USB connectors. Doing so will
damage the motherboard!

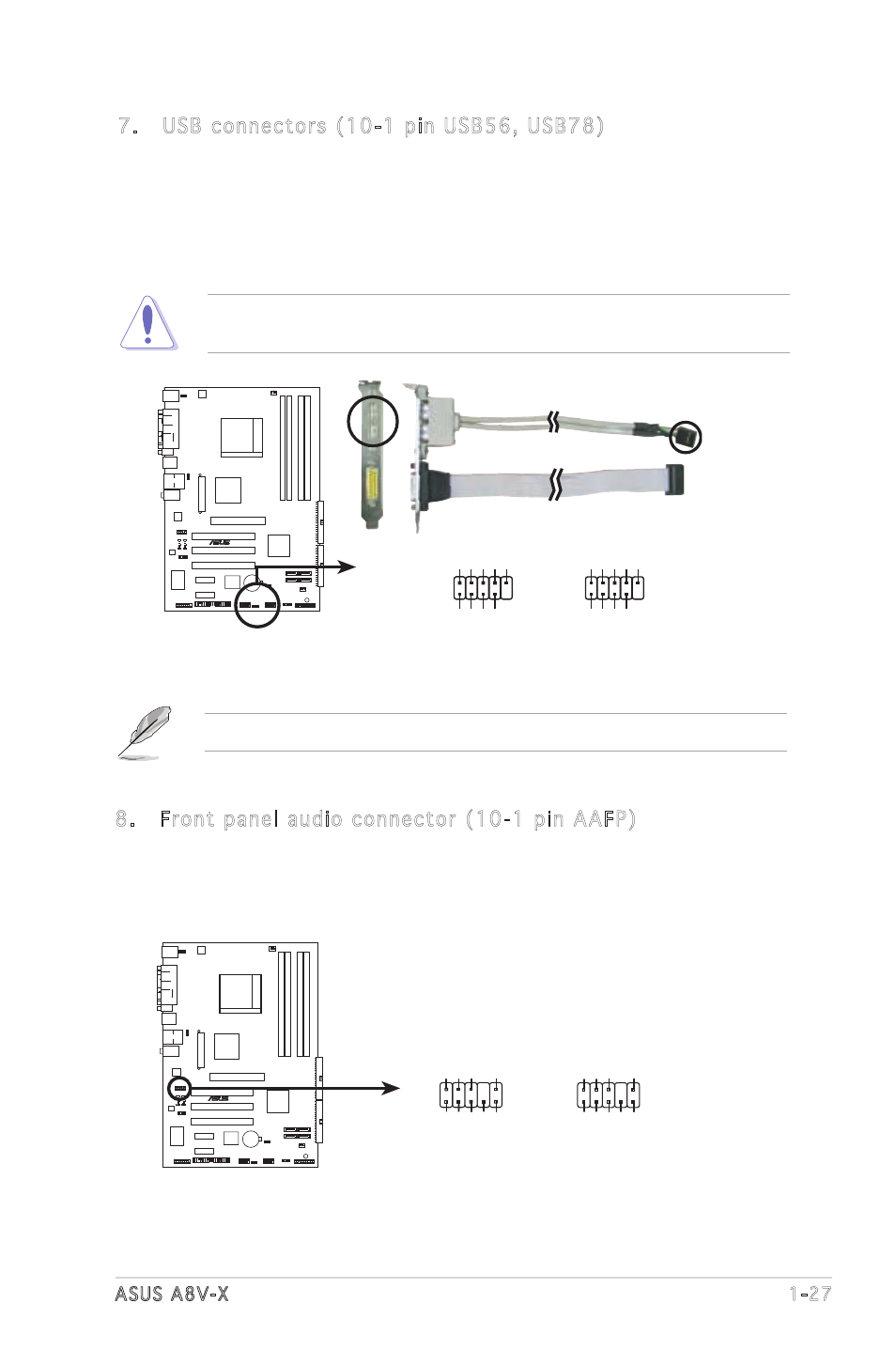

7. USB connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB/GAME
module cable to any of these connectors, then install the module to a
slot opening at the back of the system chassis. These USB connectors
comply with USB 2.0 specification that supports up to 480 Mbps
connection speed.
The USB/GAME port module is purchased separately.
8. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module
that supports high-definition audio standard. Connect one end of the
front panel audio I/O module cable to this connector.
A
8
V
-X
®
A8V-X USB 2.0 Connectors
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V USB_P5- USB_P5+
GND
1
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V USB_P7- USB_P7+
GND
1
A
8
V
-X
®
A8V-X Analog Front Panel Connector
AAFP
Legacy AC 97
compliant definition
Azalia
compliant definition
SENSE2_RETU
R
POR
T1 L
POR
T2 R
POR
T2 L
SENSE1_RETU
R
SENSE_SEND
POR
T1 R
PRESENCE# GND BLINE_OUT_L
MIC2
Line out_R Line out_L
BLINE_OUT_R
NC
MICPWR
+5V
A
AGND
