1-22

Chapter 1: Product introduction

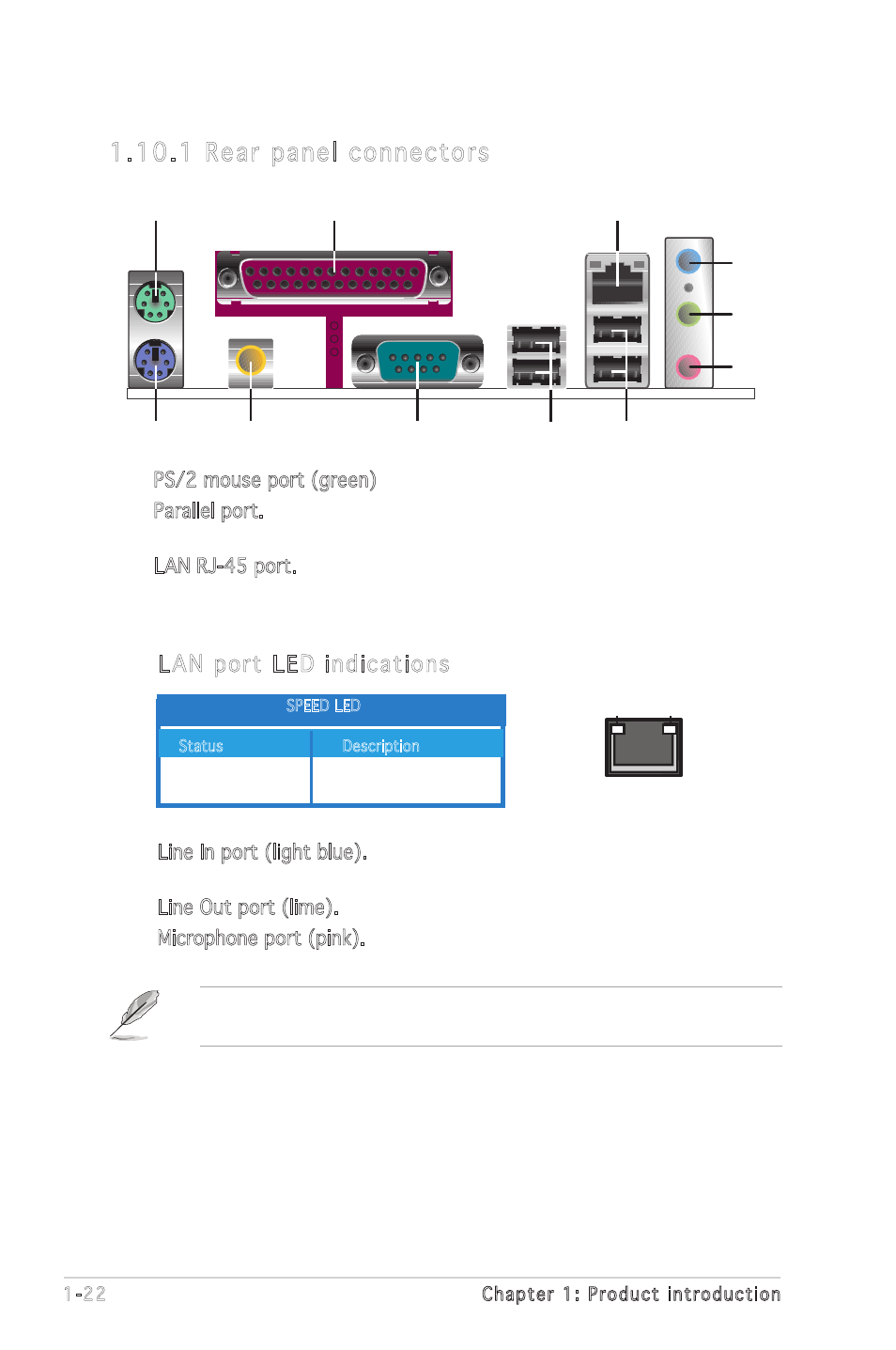

1.10 Connectors

1.10.1 Rear panel connectors

1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or

other devices.

3. LAN RJ-45 port. This port allows Gigabit connection to a Local Area

Network (LAN) through a network hub. Refer to the table below for

the LAN port LED indications.

SPEED

LED

LED

LAN port

SPEED

LAN port LED indications

4. Line In port (light blue). This port connects the tape, CD, DVD player,

or other audio sources.

5. Line Out port (lime). This port connects a headphone or a speaker.
6. Microphone port (pink). This port connects a microphone.

SPEED LED

Status

Description

GREEN(Right) 10 Mbps connection
ORANGE(Left) 100 Mbps connection

Refer to the audio configuration table on the next page for the function

of the audio ports 2, 4, or 6-channel configuration.

1

11

4

5

6

7

2

3

9

10

8
