1-24 Chapter 1: Product introduction
2. IDE connectors (40-1 pin PRI_IDE, SEC_IDE)
These connectors are for Ultra DMA 133/100/66 signal cables.
The Ultra DMA 133/100/66 signal cable has three connectors: a
blue connector for the primary IDE connector on the motherboard,
a black connector for an Ultra DMA 133/100/66 IDE slave device
(optical drive/hard disk drive), and a gray connector for an Ultra
DMA 133/100/66 IDE master device (hard disk drive). If you install
two hard disk drives, you must configure the second drive as a slave
device by setting its jumper accordingly. Refer to the hard disk
documentation for the jumper settings.
• The Pin 20 on the IDE connector is removed to match the covered
hole on the Ultra DMA cable connector. This prevents incorrect
insertion when you connect the IDE cable.
• Use the 80-conductor IDE cable for UltraDMA133/100/66 IDE
devices.

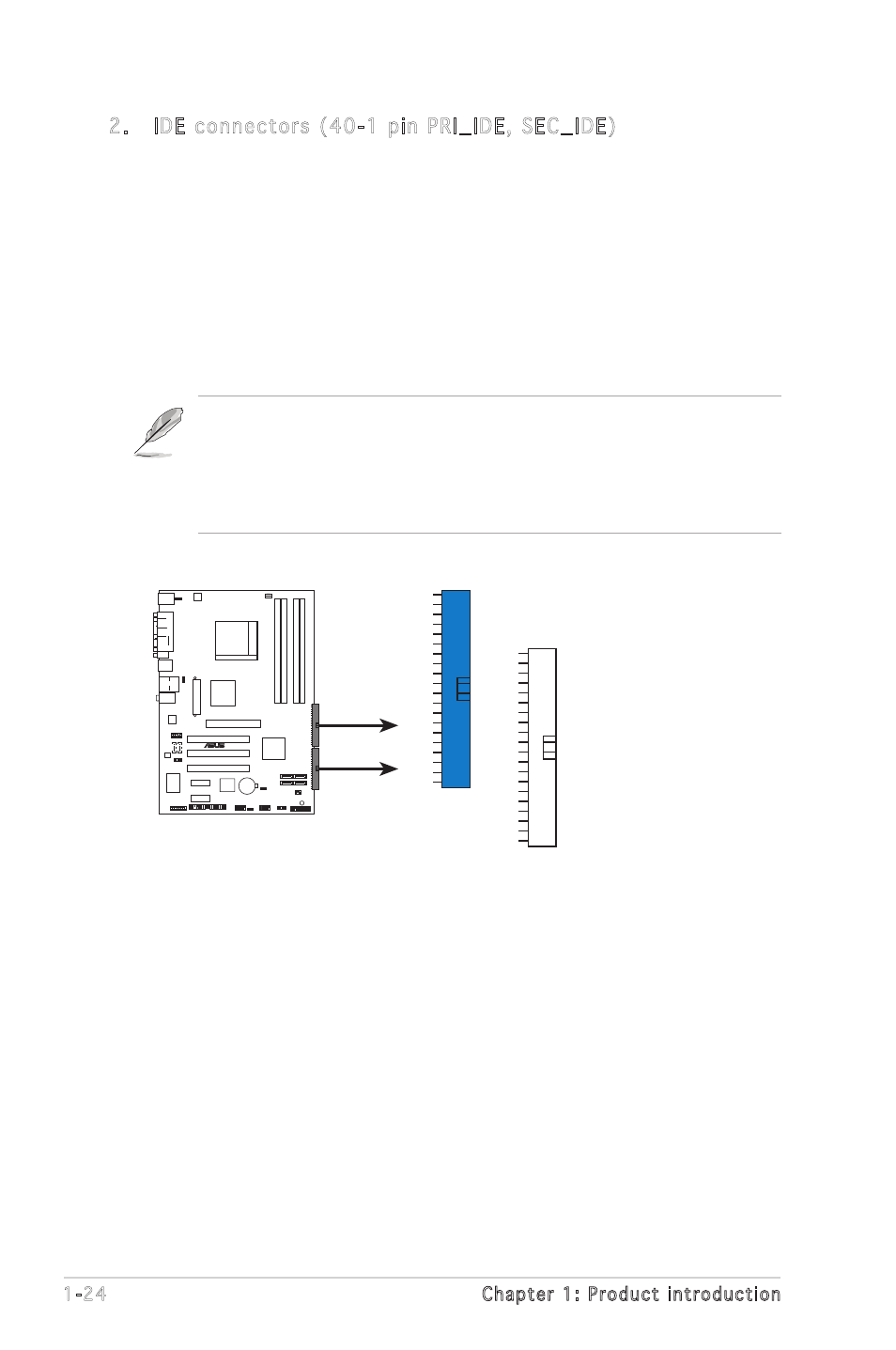

A8V-X IDE Connectors
SEC_ID
E PRI_ID
E NOTE: Orient the red markings
(usually zigzag) on the IDE
ribbon cable to PIN 1.
A
8
V
-X
®
