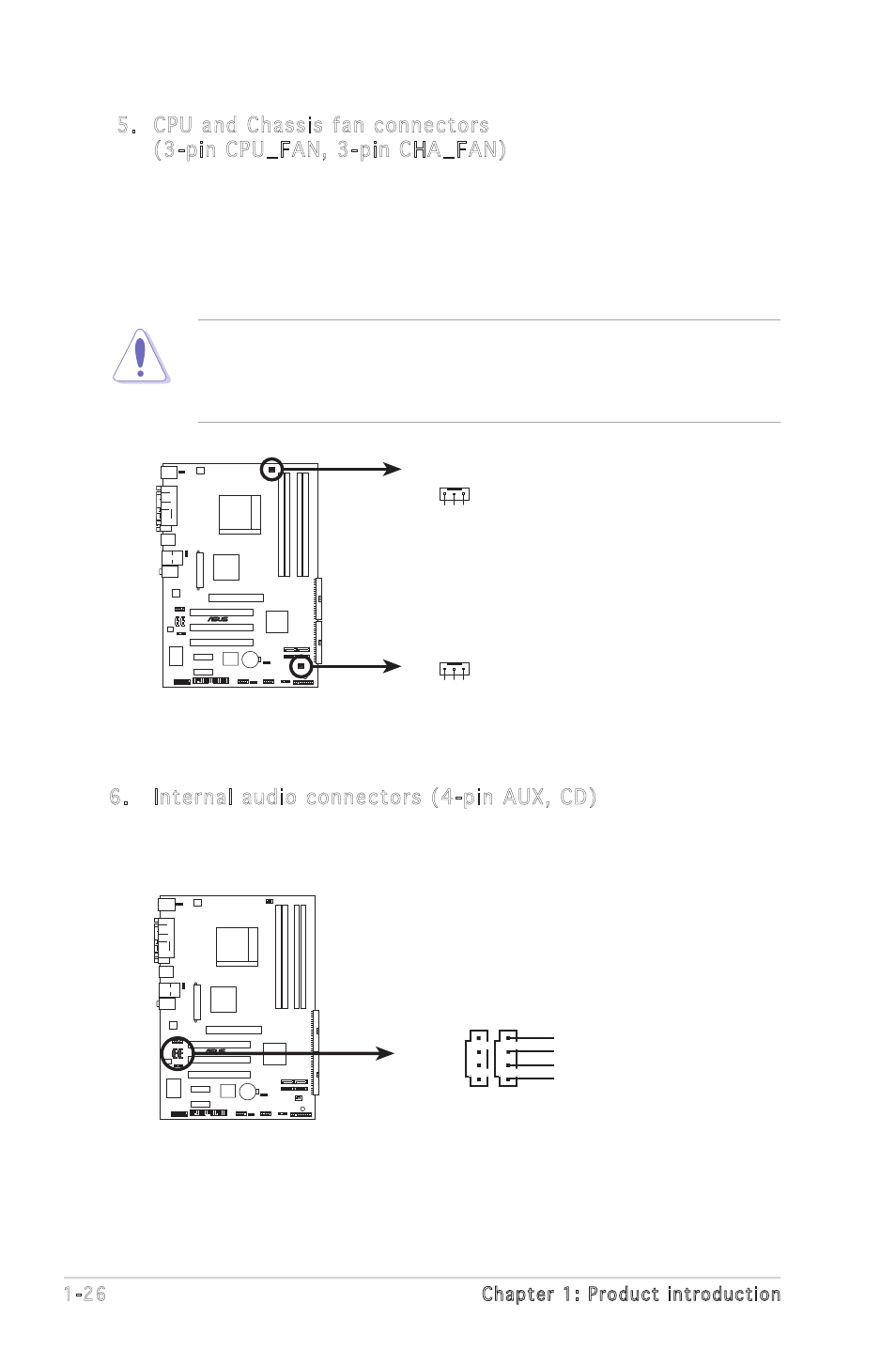

1-26 Chapter 1: Product introduction
6. Internal audio connectors (4-pin AUX, CD)
These connectors allow you to receive stereo audio input from sound
sources such as a CD-ROM, TV-tuner, or MPEG card.
5. CPU and Chassis fan connectors
(3-pin CPU_FAN, 3-pin CHA_FAN)
The fan connectors support cooling fans of 350mA~2000mA (24
W max.) or a total of 1A~3.48A (41.76 W max.) at +12V. Connect
the fan cables to the fan connectors on the motherboard, making
sure that the black wire of each cable matches the ground pin of the
connector.
Do not forget to connect the fan cables to the fan connectors. Lack
of sufficient air flow inside the system may damage the motherboard
components. These are not jumpers! DO NOT place jumper caps on the
fan connectors!
A
8
V
-X
®
A8V-X Fan Connectors
CHA_FAN
GND
Rotation
+12V
CPU_FAN
GND
Rotatio
n
+12
V
A
8
V
-X
®
Right Audio Channel
Left Audio Channel
Ground
Ground
A8V-X Internal Audio Connectors
AUX (White) CD (Black)
