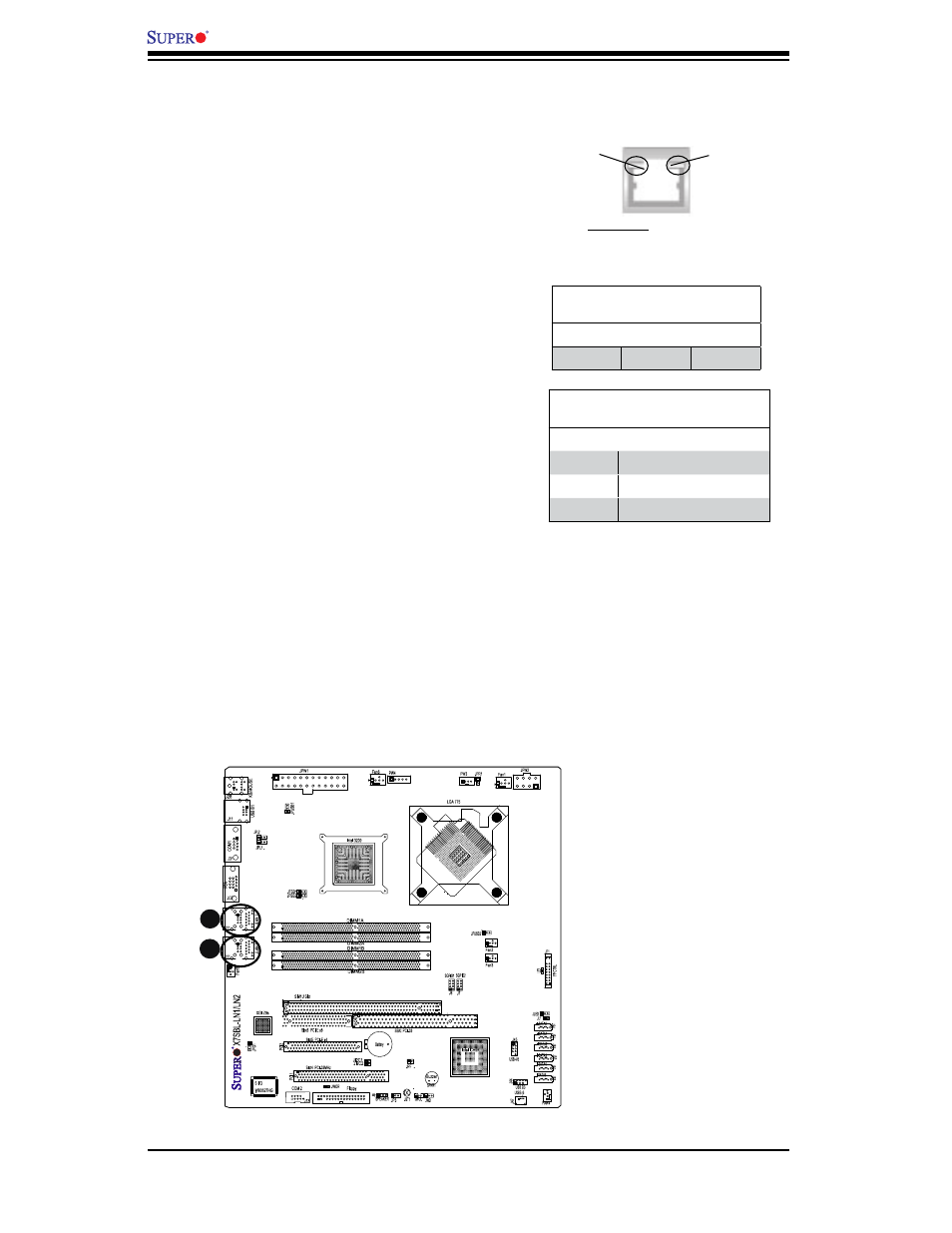

2-8 Onboard Indicators
A. GLAN1
B. GLAN2
GLAN LEDs
There are two GLAN ports on the
motherboard. Each Gigabit Ether-
net LAN port has two LEDs. The
yellow LED indicates activity, while
the Link LED may be green, amber
or off to indicate the speed of the
connection. See the tables at right
for more information.
A c t i v i t y
LED
GLAN Activity Indicator
Color Status Defi nition
Yellow
Flashing
Active
GLAN Link Indicator
LED Color Defi nition
Off
No Connection or 10 Mbps
Green
100 Mbps
Amber
1 Gbps
L i n k
LED
(*Rear View: When viewing it from
the rear side of the chassis)
A
B
