Wake-On-Ring
The Wake-On-Ring header is located
at JWOR. This feature allows your
computer to be awakened by an incom-
ing call to the modem when the system
is in the suspend state. See the table
on the right for pin defi nitions. You
must have a Wake-On-Ring card and
a cable to use this feature.
Wake-On-LAN
The Wake-On-LAN header is located
at JWOL on the motherboard. See the
table on the right for pin defi nitions.
(You must also have a LAN card with
a Wake-On-LAN connector and cable
to use this feature.)
Wake-On-Ring
Pin Defi nitions
(JWOR)
Pin# Defi nition
1
Ground
2
Wake-up
Wake-On-LAN
Pin Defi nitions
(JWOL)
Pin# Defi nition
1
+5V Standby
2
Ground
3
Wake-up

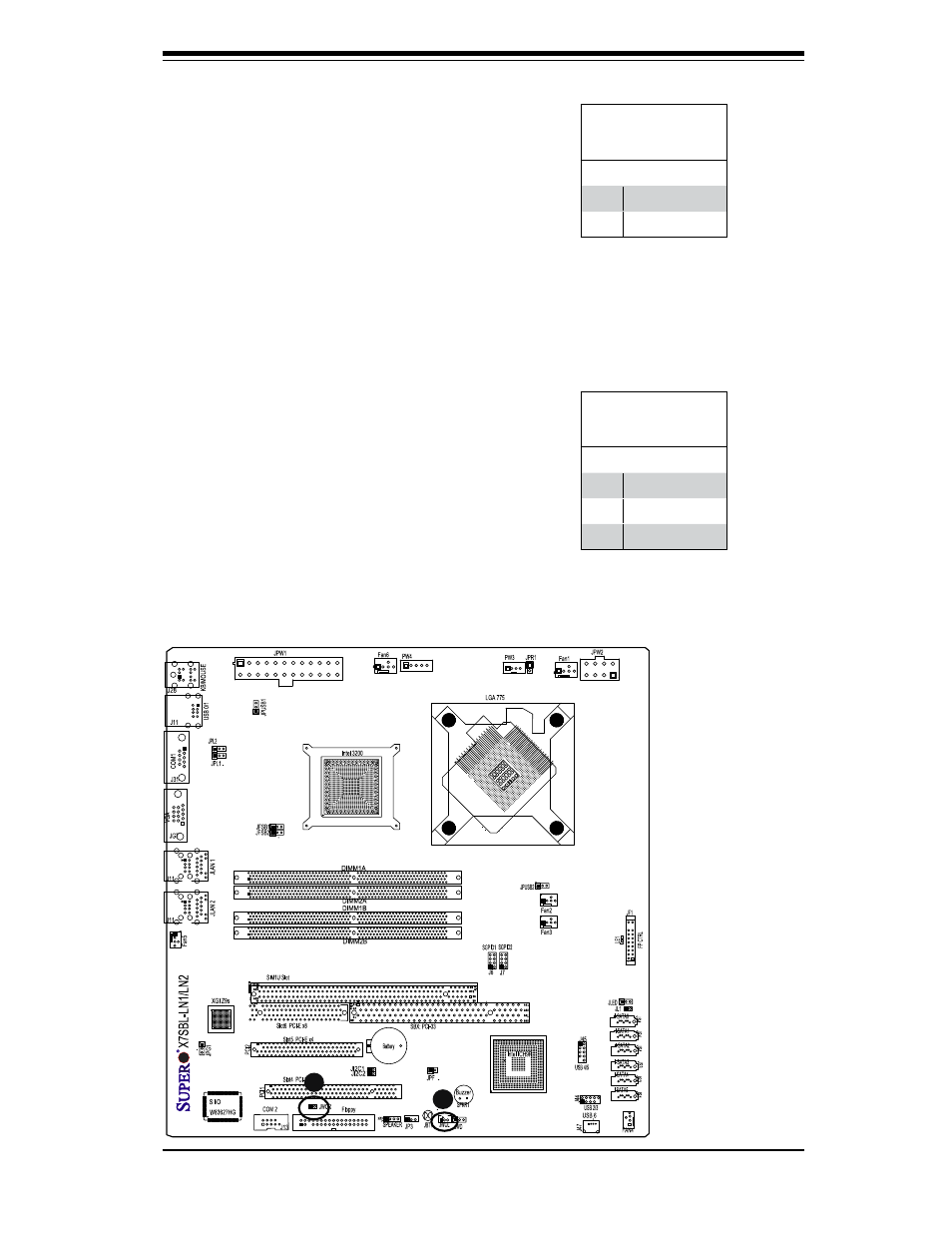

A. WOR
B. WOL
