Simer Pumps 3307P - Manual (Page 4)

Replacing an Existing Pump 4
DEEP WELL
Hazardous voltage. Disconnect power to
pump before working on pump or motor.
1. Drain and remove the old pump. Check pipe for
scale, lime, rust, etc., and replace it if necessary.
2. Install the control valve and pressure gauge in the
pump body (see Figure 1).
3. If your old pump has the suction pipe (the larger port
– see Figure 2) below the drive port, you will need to
install flexible pipe between the well head and the
pump so that the connection will be correct. (See
Figure 3).
NOTICE: Your old ejector (in the well) may not be
properly matched to your new pump. If the pump
does not perform properly, we recommend that you
install ejector kit FP4800 or 29660.
4. Install the pump in the system. Make sure that all pipe
joints in the suction pipe are air-tight as well as water
tight. If the suction pipe can suck air, the pump will not
be able to pull water from the well.
5. Adjust the pump mounting height so that the plumbing
connections do not put a strain on the pump body.
Support the pipe so that the pump body does not take
the weight of piping or fittings.
You have just completed the well plumbing for your
new deep well jet pump. Please go to Page 8 for
discharge pipe and tank connections.
SHALLOW WELL
Hazardous voltage. Disconnect power to
pump before working on pump or motor.
1. Drain and remove the old pump. Check the old pipe
for scale, lime, rust, etc., and replace it if necessary.
2. Install the control valve and pressure gauge in the
pump body (see Figure 1).
3. Install ejector kit FP4875 or 29650 (kits are sold sepa-
rately). Follow the instructions provided with the kit.
Be sure to align the venturi with the top hole on the
front of the pump (see Figure 4).
NOTICE: Always replace the ejector when replacing
the pump in a shallow well installation.
4. Install the pump in the system. Make sure that all pipe
joints in the suction pipe are air-tight as well as water
tight. If the suction pipe can suck air, the pump will not
be able to pull water from the well.
5. Adjust the pump mounting height so that the plumbing
connections do not put a strain on the pump body.
Support the pipe so that the pump body does not take
the weight of piping or fittings.
You have just completed the well plumbing for your
new shallow well jet pump. Please go to Page 8 for
discharge pipe and tank connections.
1379 1194
Drive Pipe
sends water
down the well
to drive water
up through the
Suction Pipe
to Pump Suction
Suction
(Larger)
Port
2175 1295
Piping omitted
for clarity
Discharge
Drive
(Smaller)
Port
Suction
Pipe
Drive
Pipe
Well
Head
If well head and pump
don't match, twist
reinforced flexible pipe
to connect drive
and suction pipes.
2174 1295
For parts or assistance, call Simer Customer Service at 1-800-468-7867 / 1-800-546-7867

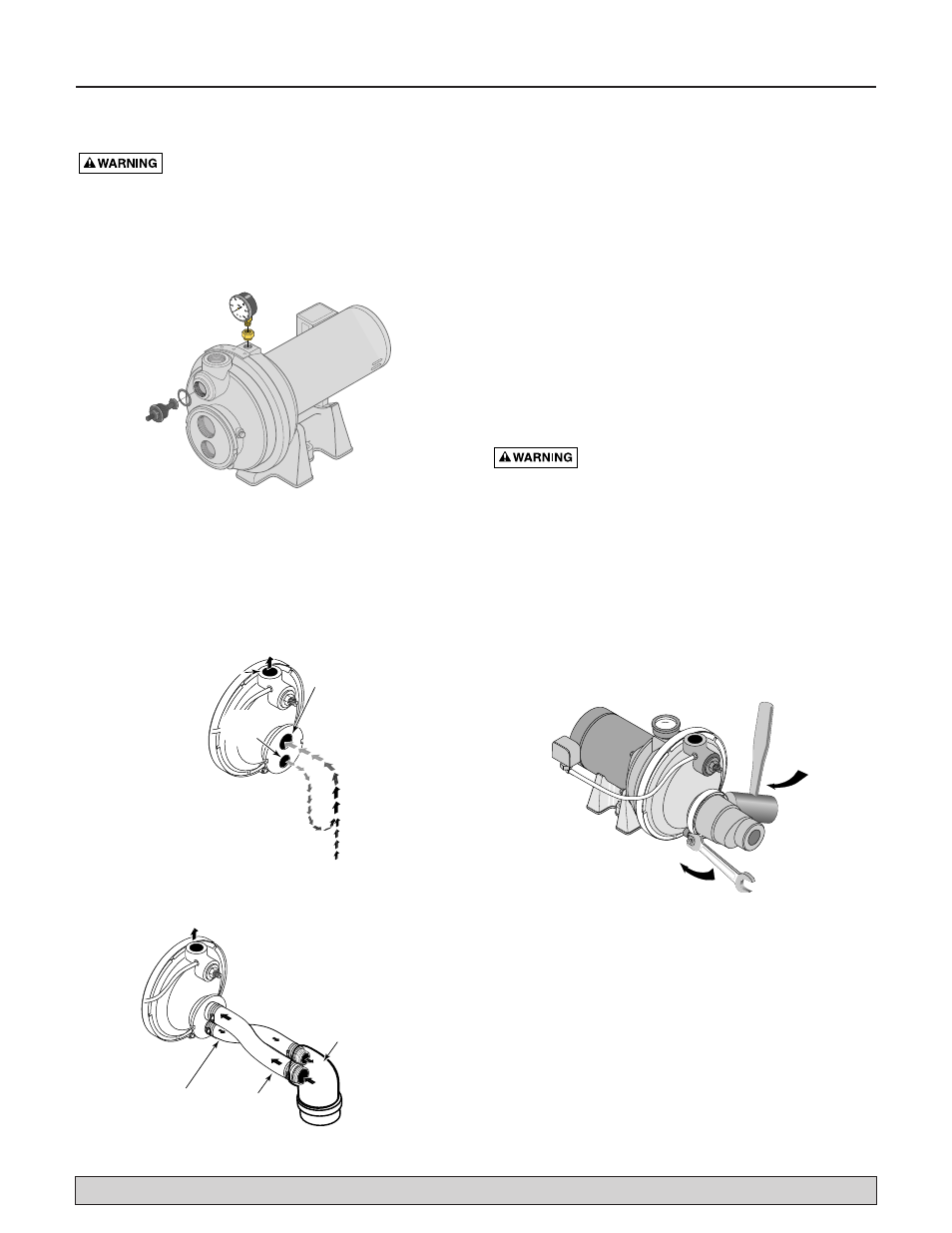

Figure 1: Install Control Valve and Gauge
Figure 2: Drive and Suction Functions
Figure 3: Reversed Connections to Well
Figure 4: Mount Ejector – Shallow Well
