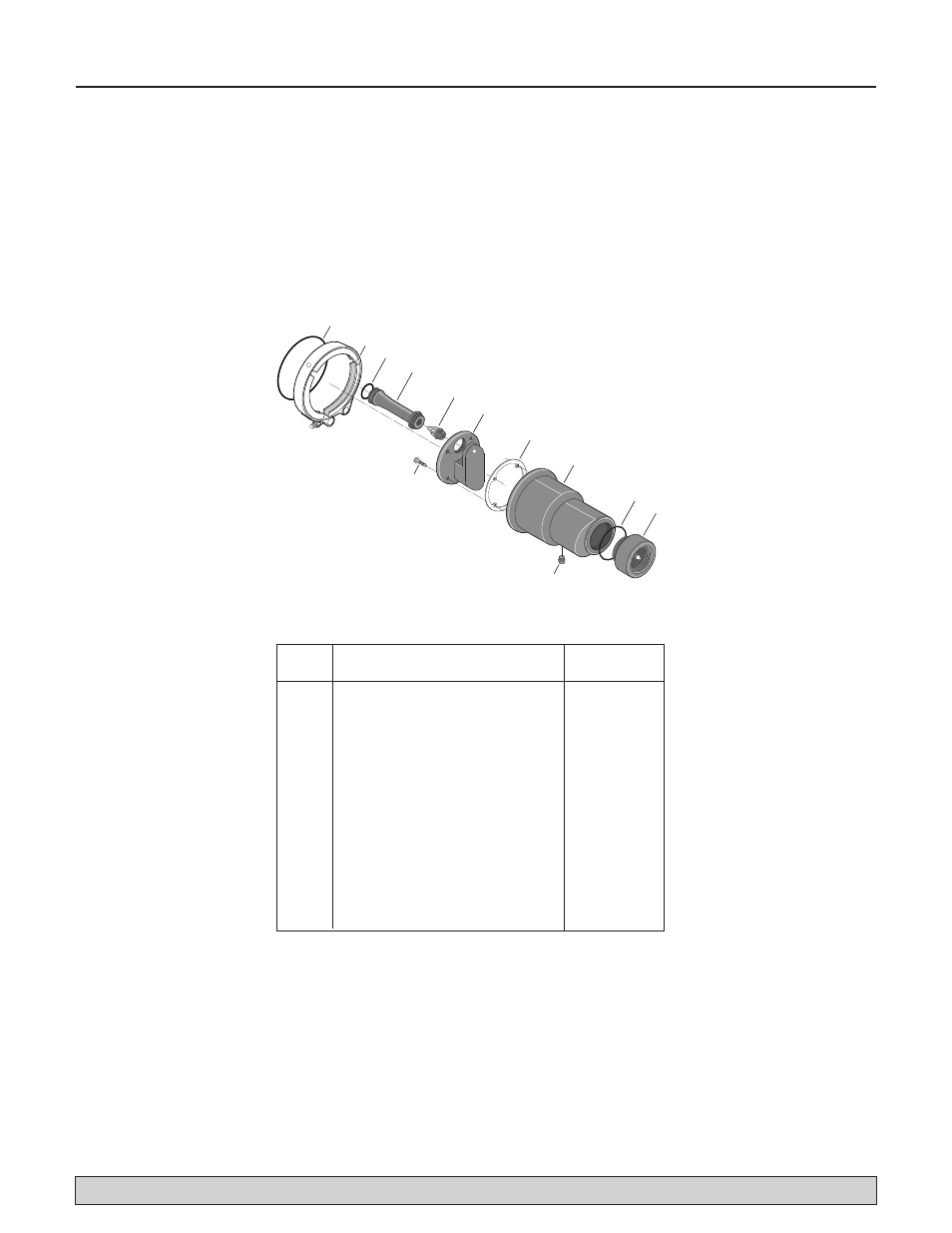

Ejector Package 15
For parts or assistance, call Simer Customer Service at 1-800-468-7867 / 1-800-546-7867
Shallow Well Installation
Ejector Packages are available for either shallow well or
deep well operation. Pump owners manual describes
conditions that define shallow well and deep well oper-
ation. Read manual over carefully to determine your pumping requirements. Note that the nozzle comes pre-
installed in ejector body and works with both shallow
well and deep well venturis.
1
2
3
4
5
12
6
7
8
9
10
11
1722 0495
Key Part Part
No. Description Number
1 O-Ring, Jet Body U9-202
2 Clamp J19-6
3 O-Ring, Venturi U9-201
4 Venturi N32P-63
4 Venturi N32P-64
4 Venturi N32P-72
5 Nozzle (#51) J34P-41
5 Nozzle (#54) J34P-44
6 Insert, Jet Body N40-39P
7 Gasket J20-18
8 Jet Body N40-38P
9 O-Ring, Check Valve U9-226
10 Check Valve - Complete N166-5P
11 Pipe Plug - 1/8" NPT - Sq. Hd. WC78-41T
12 Screw - #10 - 16 x 1-1/8" Lg. (4 Req.) U30-742SS
Shallow Well Kit FP4875 or 29650
