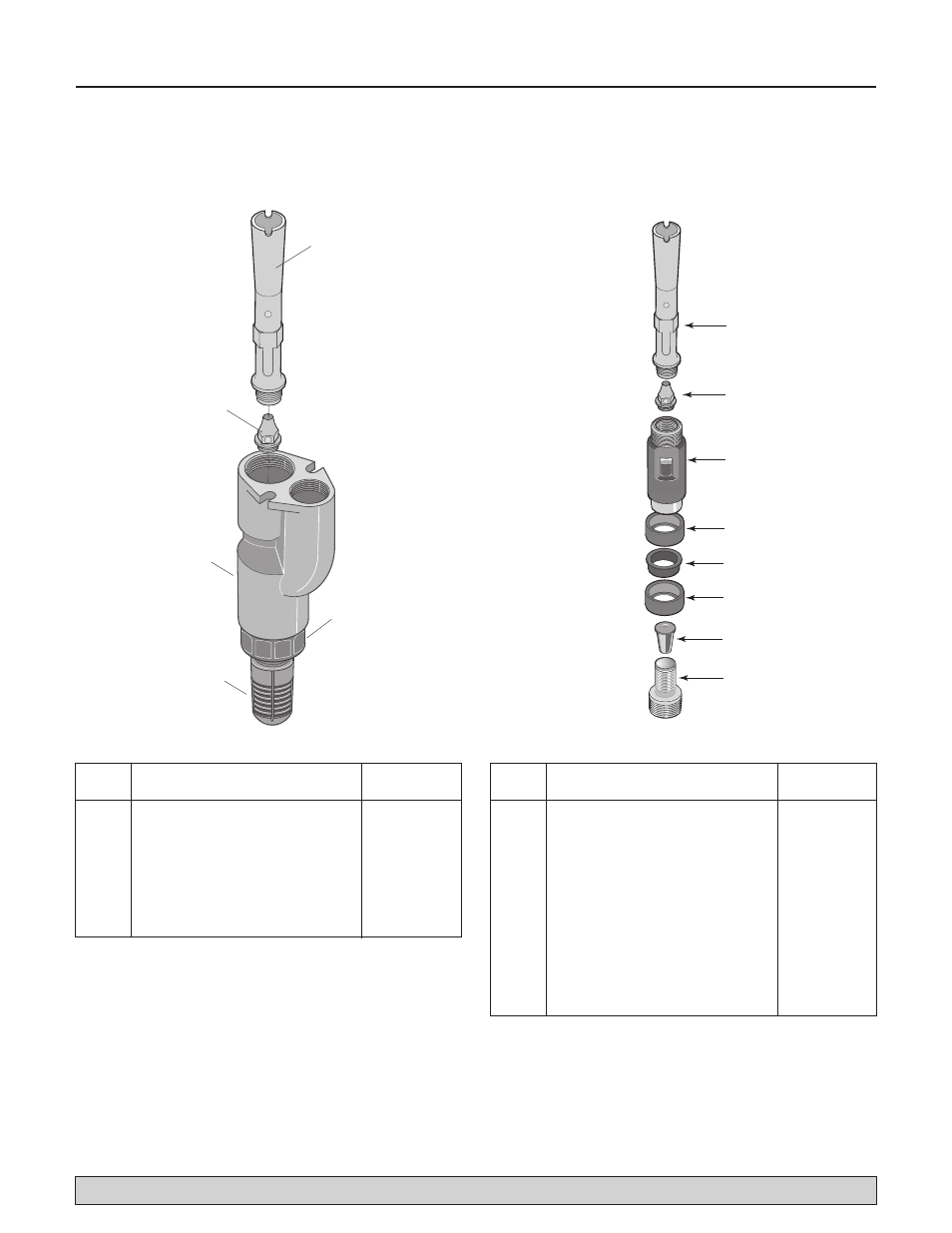

Ejector Package 16
For parts or assistance, call Simer Customer Service at 1-800-468-7867 / 1-800-546-7867
41
JET NO.
J32P-
24
1
2
3
5
4
1927 0895
Key Part Part
No. Description Number
1 Ejector Body N40-92
2 Nozzle (#51) J34P-41
2 Nozzle (#52) J34P-42
3 Venturi J32P-24
3 Venturi J32P-18
4 Check Valve N212-12P
5 Strainer L8-1P
4" Double Pipe Kit FP4800 or 29660
• Not Illustrated.
41
JET NO.
J32P-
24
1
2
3
4
5
4
6
7
Key Part Part
No. Description Number
1 Venturi J32P-24
1 Venturi J32P-18
2 Nozzle (#52) J34P-42
2 Nozzle (#54) J34P-44
3 Jet Body J40-24
4 Cup Leather (2) J57-1
5 Spacer J43-14P
6 Check Valve P122-10B
7 Valve Seat J66-13
• Casing Adapter L05548
• Turned Couplings 1-1/4 NPT (5) U11-1
2" Single Pipe Kit FP4840 or 29670
Deep Well Installation
