English
_41

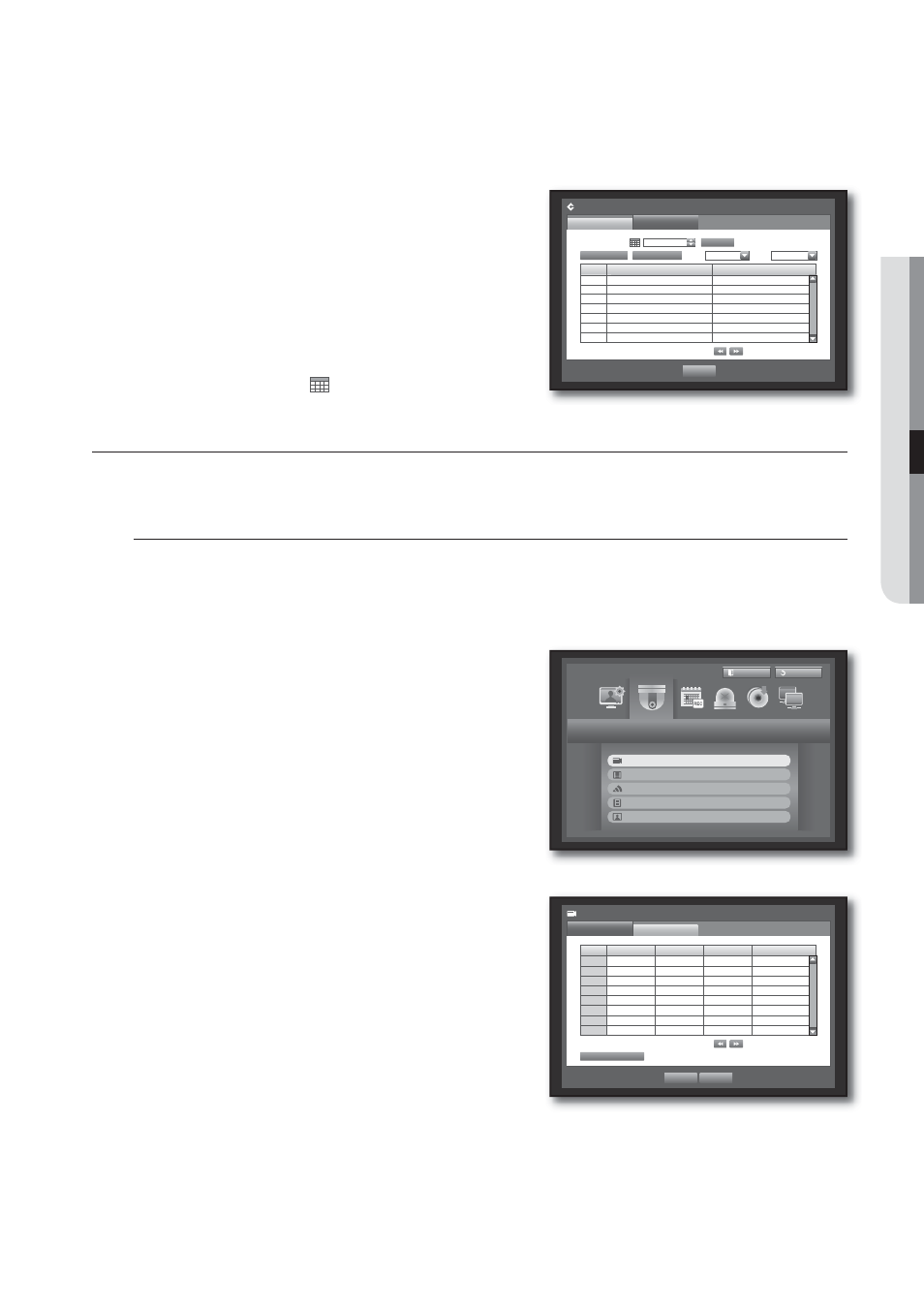

USING THE DVR
Event Log
Event log shows recorded events on alarms, motion detections and video loss.
It also shows the log and its timestamp.
Using the mouse may help easy setup.
Use the up/down buttons (▲▼) in <System> window to
move to <Log Information>, and press [ENTER] button.
Select <Event Log>.
Use direction buttons (▲▼◄ ►) to move to the desired
item.
Set Search Day, Channel and Type and the press
<Search>.
Refer to “Using the Calendar”. (Page 35)
Click on the calendar <
> to display the calendar window.
SETTING THE DEVICE
You can setup Camera, Storage Device, Remote Device, POS Device and Monitor.
Camera
Setting the Camera
You can set Video, Audio, Channel Name and Dwell Time of a Camera.
Using the mouse may help easy setup.
Press the [MENU] button on the remote control or front
panel.
Use the left/right button (◄ ►) to select <Device>.
Device setting menu is selected.
Use the up/down buttons (▲▼) to move to <Camera>,
and press [ENTER] button.
Select <Camera>.
A window for setting Video, Audio, Channel Name and
Dwell Time of a Camera appears.
Use direction buttons (▲▼◄ ►) to move to a desired
item, and set the value.
Video
- <ON/OFF> : You can turn ON/OFF the selected
channel’s camera.
- <Covert1> : Shows information other than the video of
the selected channel.
For privacy protection, it does not display the video while the recording continues.
- <Covert2> : Shows nothing but an empty screen while the recording continues.
3.
4.
5.
6.
1.
2.
3.
4.
5.
•
No.
Log
List
Date/Time
7
Motion Detection [CH 7]
2009-01-01 00:02:18
6
Motion Detection [CH 6]
2009-01-01 00:02:18
5
Motion Detection [CH 5]
2009-01-01 00:02:18
4
Motion Detection [CH 4]
2009-01-01 00:02:18
3
Motion Detection [CH 3]
2009-01-01 00:02:18
2
Motion Detection [CH 2]
2009-01-01 00:02:18
1
Motion Detection [CH 1]
2009-01-01 00:02:18
Log Information
Event Log
System Log
First Page
Search Day
2009-01-01
Previous
Previous/Next Page
CH
All CHs
Type
View all
Search
Last Page
Device
Logout
Exit
Camera
Storage Device
Remote Device
POS Device
Monitor
CH
Video Audio
CH
Name
SEQ-Dwell
Time
1
ON OFF
CAM 01
5 sec
2
ON OFF
CAM 02
5 sec
3
ON OFF
CAM 03
5 sec
4
ON OFF
CAM 04
5 sec
5
ON OFF
CAM 05
5 sec
6
ON OFF
CAM 06
5 sec
7
ON OFF
CAM 07
5 sec
8
ON OFF
CAM 08
5 sec
Camera
Camera
PTZ
Previous/Next Page
Screen Setup
OK
Cancel
