We strongly recommend that you mount your sander to a
workbench to prevent it from moving during operation.
Before doing so, remove the included feet. An unexpected
movement could result in an injury or property damage.
When you have chosen the location to mount the sander,
the strongest option is a "Through Mount" where holes are
drilled all the way through the workbench, and hex bolts,
washers, and hex nuts are used to secure the machine
(see Figure 5).
Another option for mounting is a "Direct Mount" where the
machine is simply secured to the workbench with a lag
screw (see Figure 6).

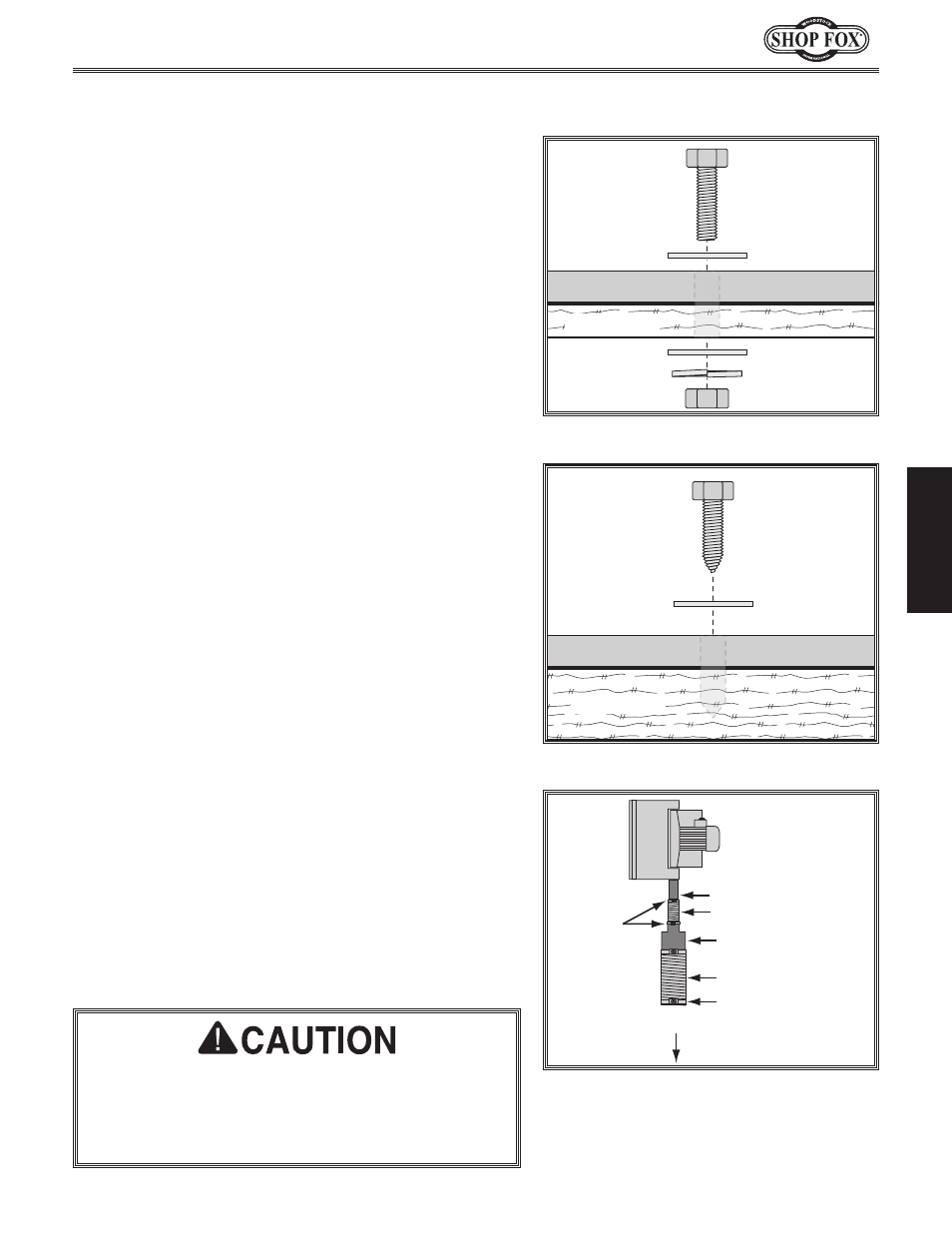

Bench Mounting
Machine Base
Workbench
Bolt
Flat Washer
Flat Washer
Lock Washer
Hex Nut
Figure 5. Example of a through mount.
Machine Base
Workbench
Lag Screw
Flat Washer
Figure 6. Example of a direct mount.
Recommended CFM at Dust Port: ..................98 CFM
Do not confuse this CFM recommendation with the rating
of the dust collector. To determine the CFM at the
dust port, you must take into account many variables,
including the CFM rating of the dust collector, the length
of hose between the dust collector and the machine, the
amount of branches or Y's, and the amount of other open
lines throughout the system. Explaining this calculation
is beyond the scope of this manual. If you are unsure of
your system, consult an expert or purchase a good dust
collection "how-to" book.
Dust Collection
DO NOT operate this machine without an adequate
dust collection system. This machine creates
substantial amounts of wood dust while operating.
Failure to use a dust collection system can result in
short and long-term respiratory illness.
4" Hose
4"x 2" Adapter
2" Hose
2" Port
2"
Clamps
To Dust Collector
4" Clamp
Figure 7. Typical dust collection setup for
the Model W1828.
