Model W1828 (For Machines Mfg. Since 4/11)

-10-

Grounding & Plug Requirements

This machine MUST be grounded. In the event of certain

malfunctions or breakdowns, grounding reduces the risk of

electric shock by providing a path of least resistance for

electric current.
This machine is equipped with a power cord that has an

equipment-grounding wire and a grounding plug (similar to

the figure on the right). The plug must only be inserted

into a matching receptacle (outlet) that is properly

installed and grounded in accordance with all local codes

and ordinances.

Serious injury could occur if you con-

nect the machine to power before

completing the setup process. DO NOT

connect to power until instructed later

in this manual.

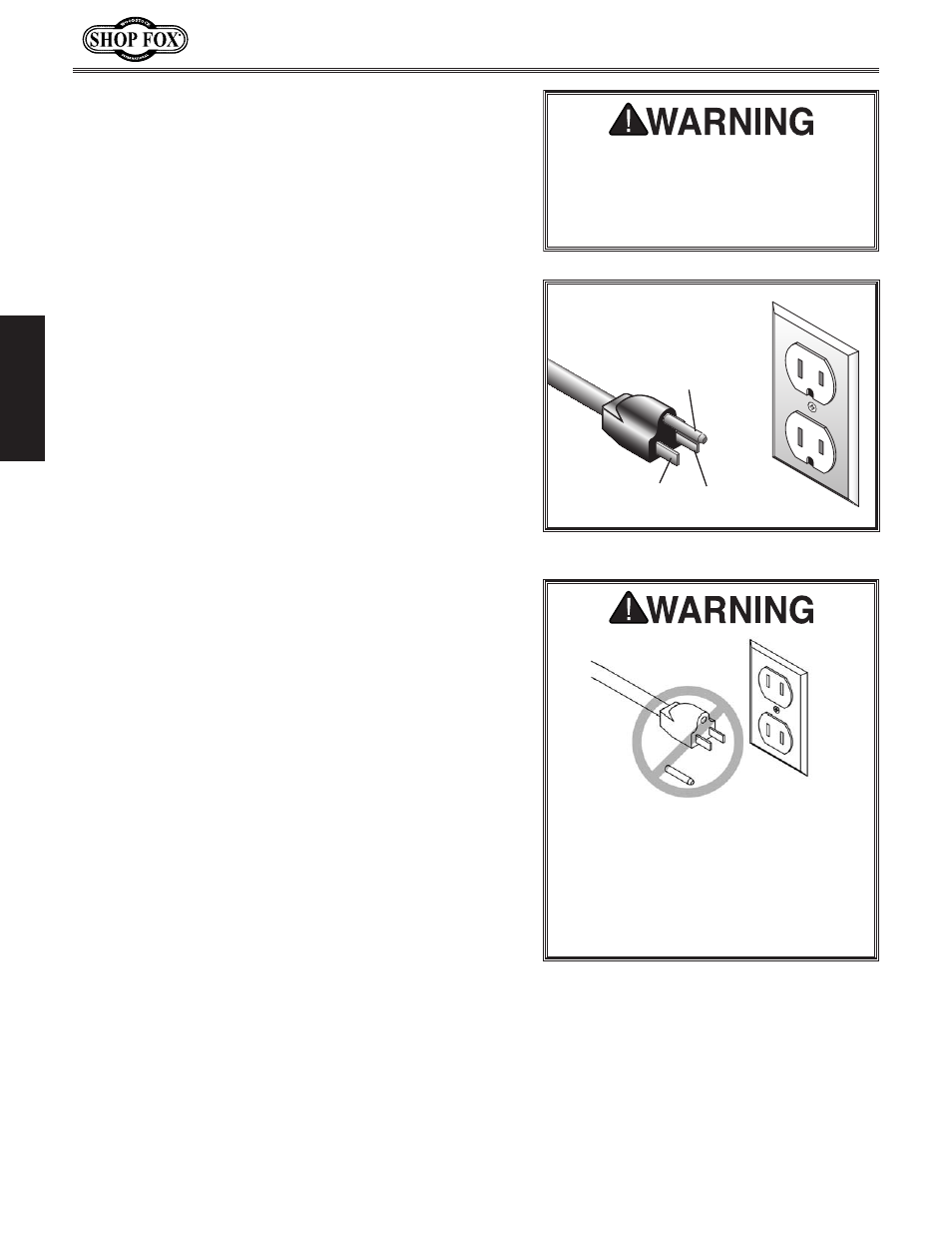

Grounding Prong

Neutral Hot

5-15 PLUG

GROUNDED

5-15 RECEPTACLE

110V

Figure 2. Typical 5-15 plug and receptacle.

Improper connection of the equipment-grounding wire

can result in a risk of electric shock. The wire with

green insulation (with or without yellow stripes) is the

equipment-grounding wire. If repair or replacement of

the power cord or plug is necessary, do not connect the

equipment-grounding wire to a live (current carrying)

terminal.

Check with a qualified electrician or service personnel

if you do not understand these grounding requirements,

or if you are in doubt about whether the tool is

properly grounded. If you ever notice that a cord or

plug is damaged or worn, disconnect it from power, and

immediately replace it with a new one.

Extension Cords

We do not recommend using an extension cord with this

machine. If you must use an extension cord, only use it if

absolutely necessary and only on a temporary basis.

Extension cords cause voltage drop, which may damage

electrical components and shorten motor life. Voltage

drop increases as the extension cord size gets longer

and the gauge size gets smaller (higher gauge numbers

indicate smaller sizes).

Any extension cord used with this machine must contain a

ground wire, match the required plug and receptacle, and

meet the following requirements:

Minimum Gauge Size ................................. 14 AWG

Maximum Length (Shorter is Better).................50 ft.

DO NOT modify the provided plug

or use an adapter if the plug will

not fit your receptacle. Instead, have

a qualified electrician install the

proper receptacle on a power supply

circuit that is grounded and meets the

requirements for this machine.
