-34-
Df[\cN(/)0D]^%J`eZ\0&((
J
M
@:<

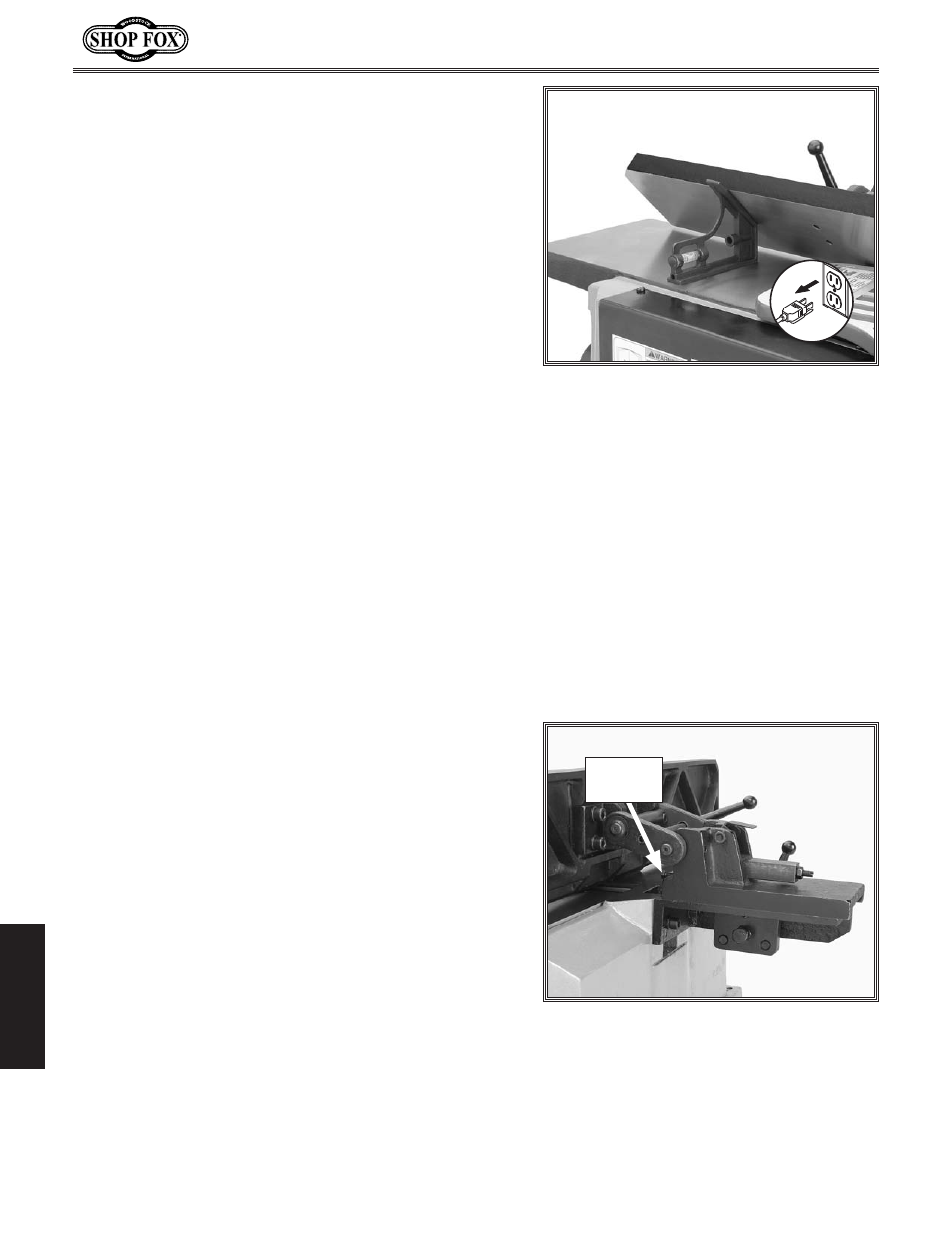

=`^li\+,. Checking the inward 45º stop.
=`^li\+-. Adjusting the inward stop bolt.
J\kk`e^+,—@enXi[Jkfg
(% DISCONNECT JOINTER FROM POWER!
)% With the fence positioned over the bed and the
sliding handle locked, loosen the fence tilting handle
and release the limit tab.
*% Tilt the fence towards the table as far as it will go,
then tighten the fence tilting handle.
Note: N_\epflk`ckk_\]\eZ\kfnXi[jk_\kXYc\#`k
n`ccjkfgn_\e`k_`kjk_\`enXi[jkfgYfck%
+% Use a combination square to check the angle of the
fence, as shown in =`^li\+,.
— If the fence leans 45º towards the table, the
inward 45º stop is set correctly; proceed to set the
outward 45º stop (see Page 35).
— If the fence does not lean 45º towards the table,
adjust the inward 45º stop by performing Jk\gj
,Æ0.
,% Loosen the fence tilting handle, bring the fence to
45º, then tighten the handle just enough to keep the
fence in position.
-% Remove the limit block from the fence bracket
assembly and set it aside.
.% Using two 8mm wrenches, adjust the inward stop
bolt (see =`^li\+-)until it contacts the fence
at precisely 45º inward, then tighten the jam nut
(where the bolt meets the bracket assembly) while
holding the stop bolt in place. Some trial-and-error
will be required to set this stop correctly.
Inward
Stop Bolt
/% Use two 8mm wrenches to tighten the hex nut on
the inward stop as you hold the stop in place.
0% Put the limit block back, bring the fence back to 90º
and tighten the tilting handle.
