Instructions for the Installer
2. INSTALLING THE OVEN
The oven is designed for free-standing installation on a horizontal work-
top. It must be far enough from the wall behind it to allow easy access to
the terminal board for connection of the power supply lead. Installation
must be carried out by a
qualified engineer in compliance with the
relevant EEC DIRECTIVES.

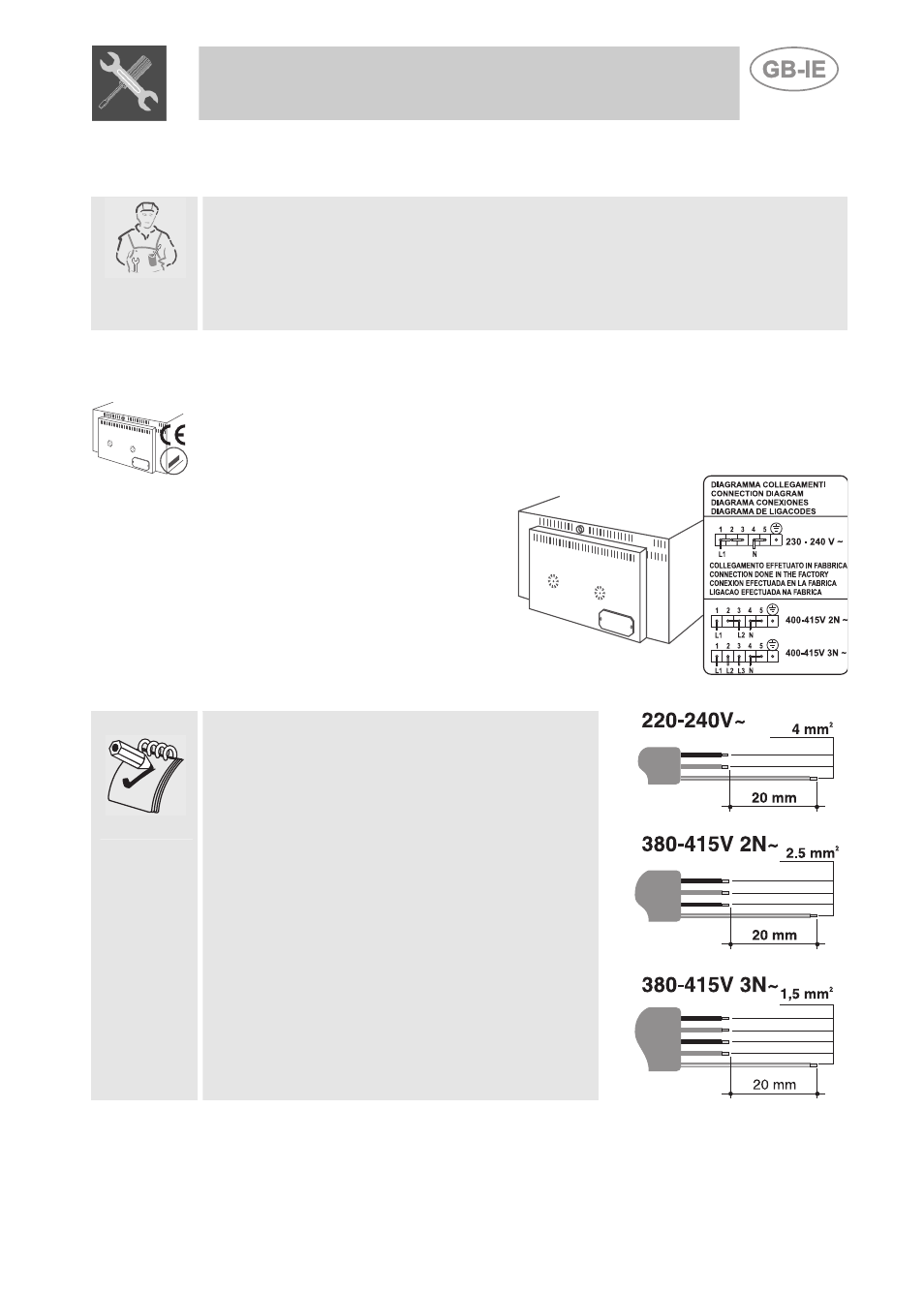

2.1 Electrical connection
Check that the power supply voltage and size are as specified on the
nameplate on the side of the oven. This nameplate must never be
removed.
The oven is fitted with a H07RN-F
three-core cable for operation at
240-240V
∼
.
For operation at 380-415V2N
∼
or
380-415V3N
∼
, the power supply
cable has to be replaced and the
connection to the terminal board
modified. The terminal board can
be accessed by removing the
panel on the back of the oven.
The power supply lead supplied is of
H07RN-F type, gauge 3 x 4 mm 2 .
For operation at 380-415V2N ∼ or 380-
415V3N ∼ , the power supply cable has to be
replaced with one of H07RN-F type. The
gauge of the wires in the new cable must be
at least 2.5-1.5 mm 2 (4 x 2.5 mm 2 - 5 x
1.5 mm 2 ), bearing in mind that the earth wire
(yellow-green) must be at least 20 mm
longer at the end for connection to the oven.
