Configuring Network Address Translation
62
Viewing NAT Rules and Rule Statistics
To view the NAT rules currently defined on your system, select
[NAT Rule Entry] in the [NAT Options] drop-down list. The [Network
Address Translation (NAT) Rule Configuration] page appears,
as shown in Figure 18:

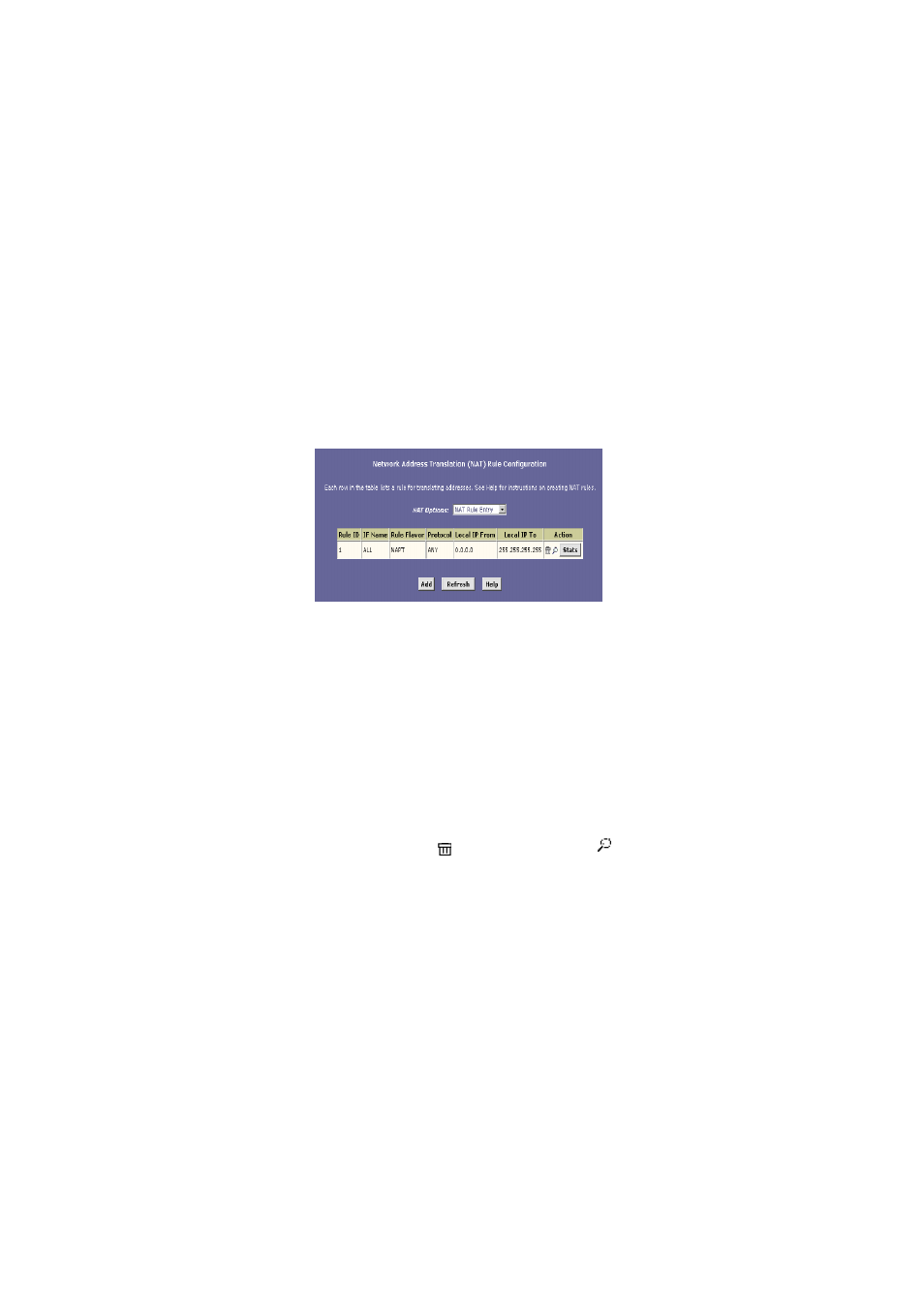

Figure 18. Network Address Translation (NAT) Rule
Configuration Page
The [Network Address Translation (NAT) Rule Configuration]
table displays a row containing basic information for each rule.
For a description of these fields, refer to the instructions for
adding rules (pages 66 through 79).
From the [Network Address Translation (NAT) Rule Configuration]
page, you can click [Add] to add a new rule, or use the icons in
the right column to delete (
) or view details on (
) a rule.
To view data on how often a specific NAT rule has been used,
click [Stats] in the [Action] column. A page appears similar to
the one shown in Figure 19.
