Samson Trovis 5100 - Manual (Page 32)

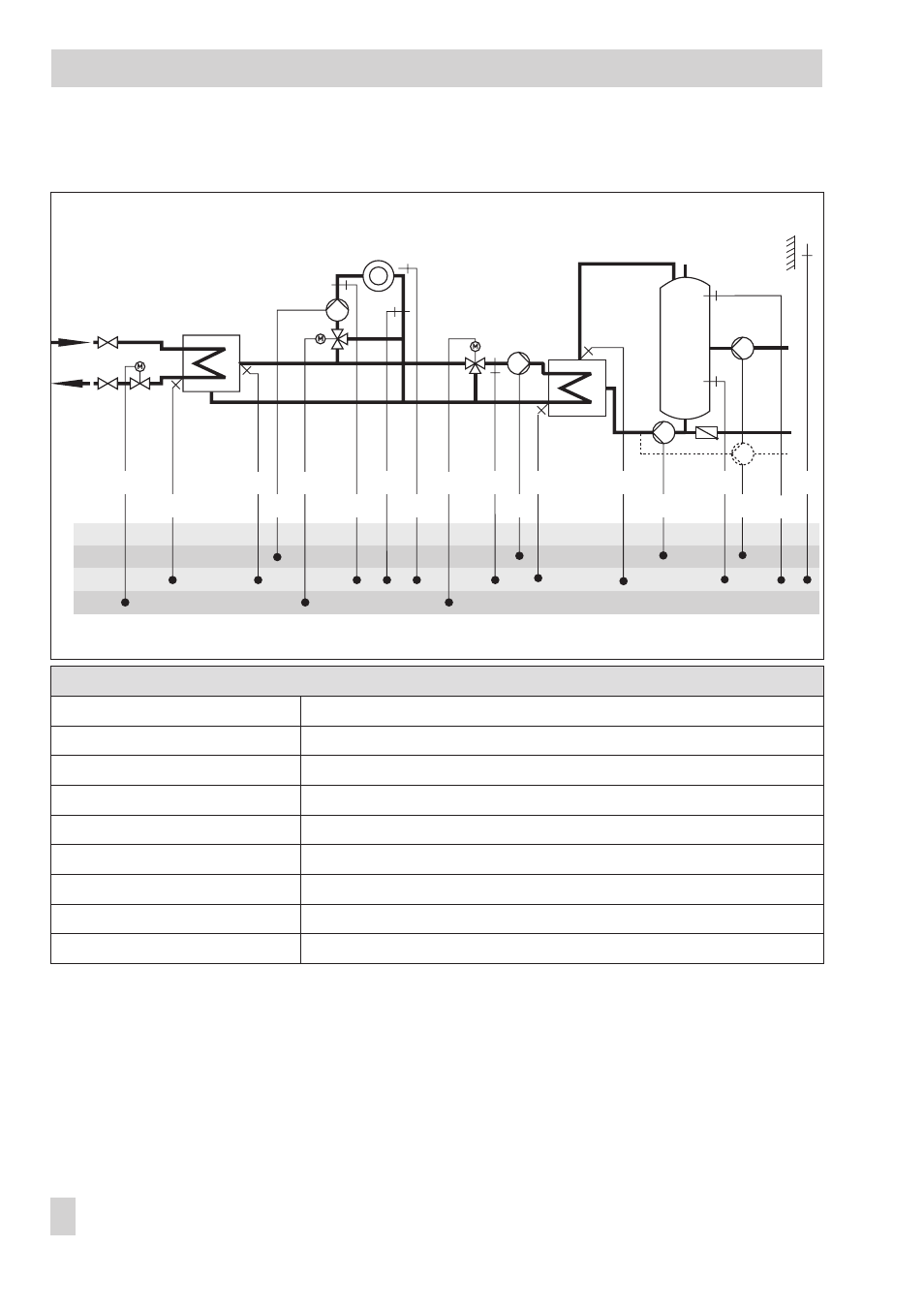

System Anl 4
Default setting
Co1 -> Fb00 = OFF (without RF1)
Co1 -> Fb01 = OFF (without RüF1)
Co1 -> Fb02 = ON (with AF1)
Co4 -> Fb00 = ON (with SF1)
Co4 -> Fb01 = ON (with SF2)
Co4 -> Fb02 = OFF (without RüFTW)
Co4 -> Fb03 = ON (with VFS, with VFT)
Co5 -> Fb00 = ON (with VFsek)
Co5 -> Fb01 = ON (with RüFprim)
Set Co4 -> Fb11 = ON if the instrumentation represented by the broken line is required.
