Supplied Accessories
Operation manual (1)
Installation manual (1)
Optional Boards
BKPF-012A 525-line component digital to
NTSC composite analog/digital video
converter board
BKPF-021 NTSC Composite Digital to
525-Line Component Digital Video Converter
Board
BKPF-205 Audio/Video Multiplexer Board
BKPF-206 Audio/Video Demultiplexer Board
BKPF-300 Digital Video Selector Board
BKPF-301 Analog Video Selector Board
BKPF-350 Digital Audio Selector Board
BKPF-351 Analog Audio Selector Board
BKPF-R70A Routing Switcher Controller
Board
Optional Software
BZR-IF310 S-BUS SUB-NET Controller
Software
Specifications
General
Power requirements:
100 to 240 V AC, 50/60 Hz
Power consumption:
100 V: 0.8 A, 240 V: 0.4 A
Maximum power supply capacity:
+5 V DC: max. 2.4 A
For installed board -5 V DC: max. 2.4 A
Operating temperature:
5 to 40 °C (41 to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Operating humidity:
10 to 90%
Dimensions (W x H x D):
424 x 44 x 426 mm
(16 3/4 x 1 3/4 x 16 7/8 inches)
Mass:
Approx. 5 kg (11 lb 4 oz)
(not including the optional boards)
BKPF Series boards provide a wide range of audio and
video signal processing and distribution functions for
analog and digital signals. The PFV-D10 digital video
interface unit accommodates any one of these boards,
providing an interface for system connections. The
PFV-D10 supplies power to the board and includes BNC
connectors for a looped video reference signal input and
S-BUS remote control. The PFV-D10 mounts into a
standard 19-inch rack and is 1U high.
Features
* Accommodates and powers one BKPF Series board *
S-BUS control and reference video connectors
118
Inter
face Pr
ocessor D Series
Interface Processor D Series

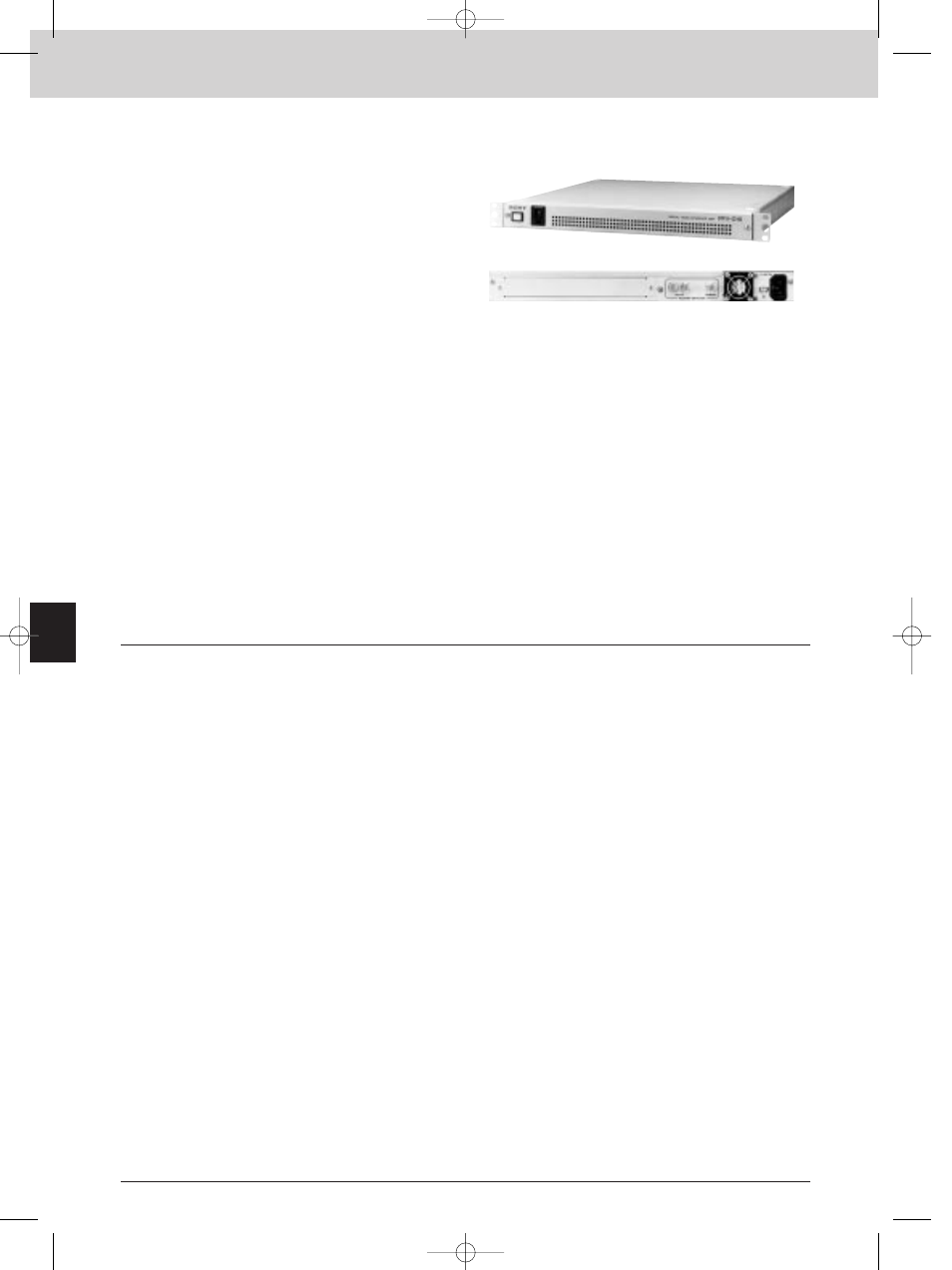

PFV-D10
Digital Video Interface Unit
