CAUTIONS: Be careful not to activate, deactivate or alter the normal
functions of the home’s heating and cooling system, except to coordinate
the systems’ air moving operation with the humidifier.
If these precautions are not heeded, hazardous conditions could result,
causing serious damage to the heating and cooling system, and to the
home.

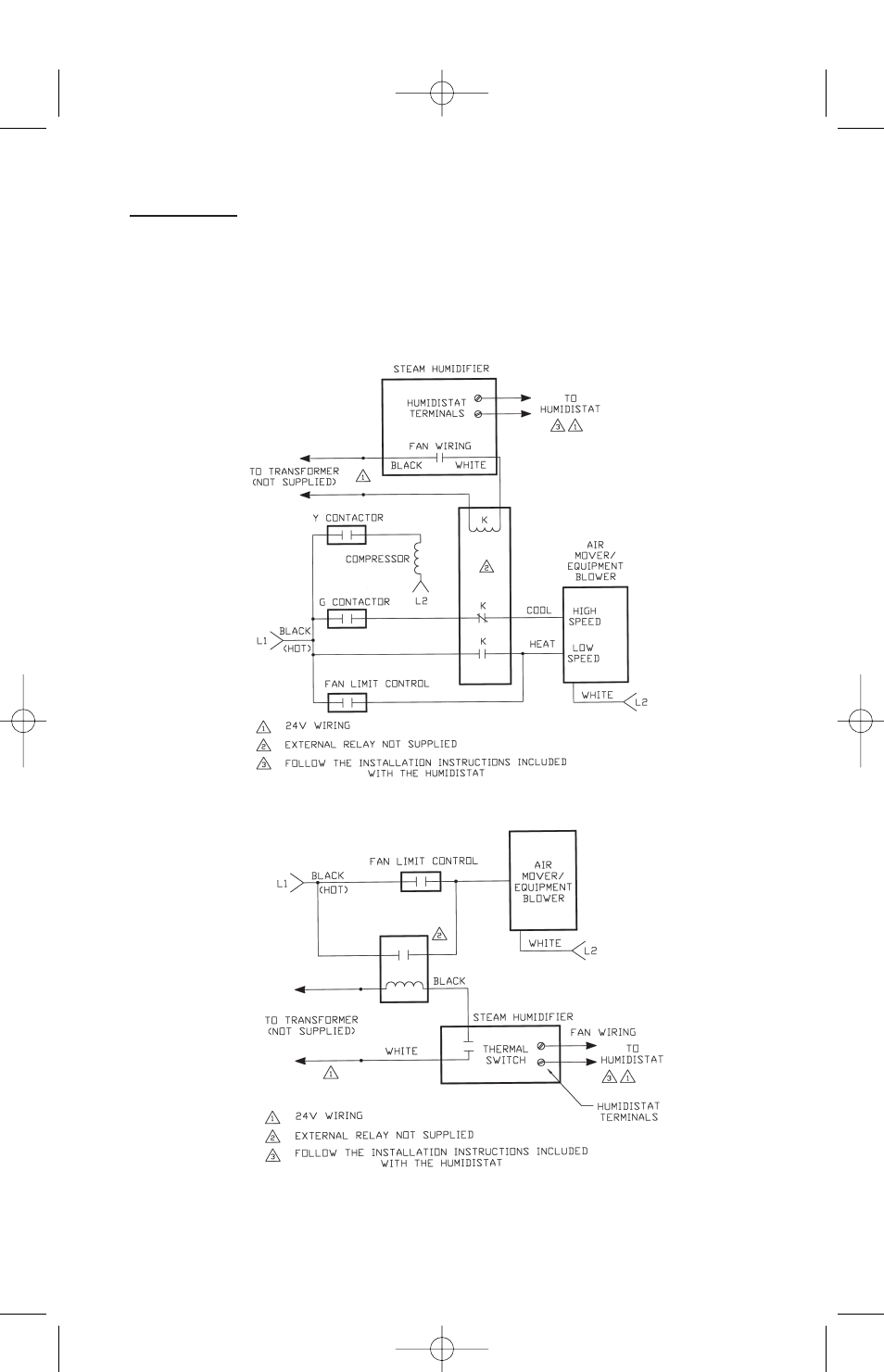

Figure 7 - Typical wiring for a humidifier in a dual-speed air mover application with
air conditioning.
Figure 8A - Typical wiring for a humidifier in a single-speed air mover application
without air conditioning (switching through an external relay).
