Option B: External Side Mount

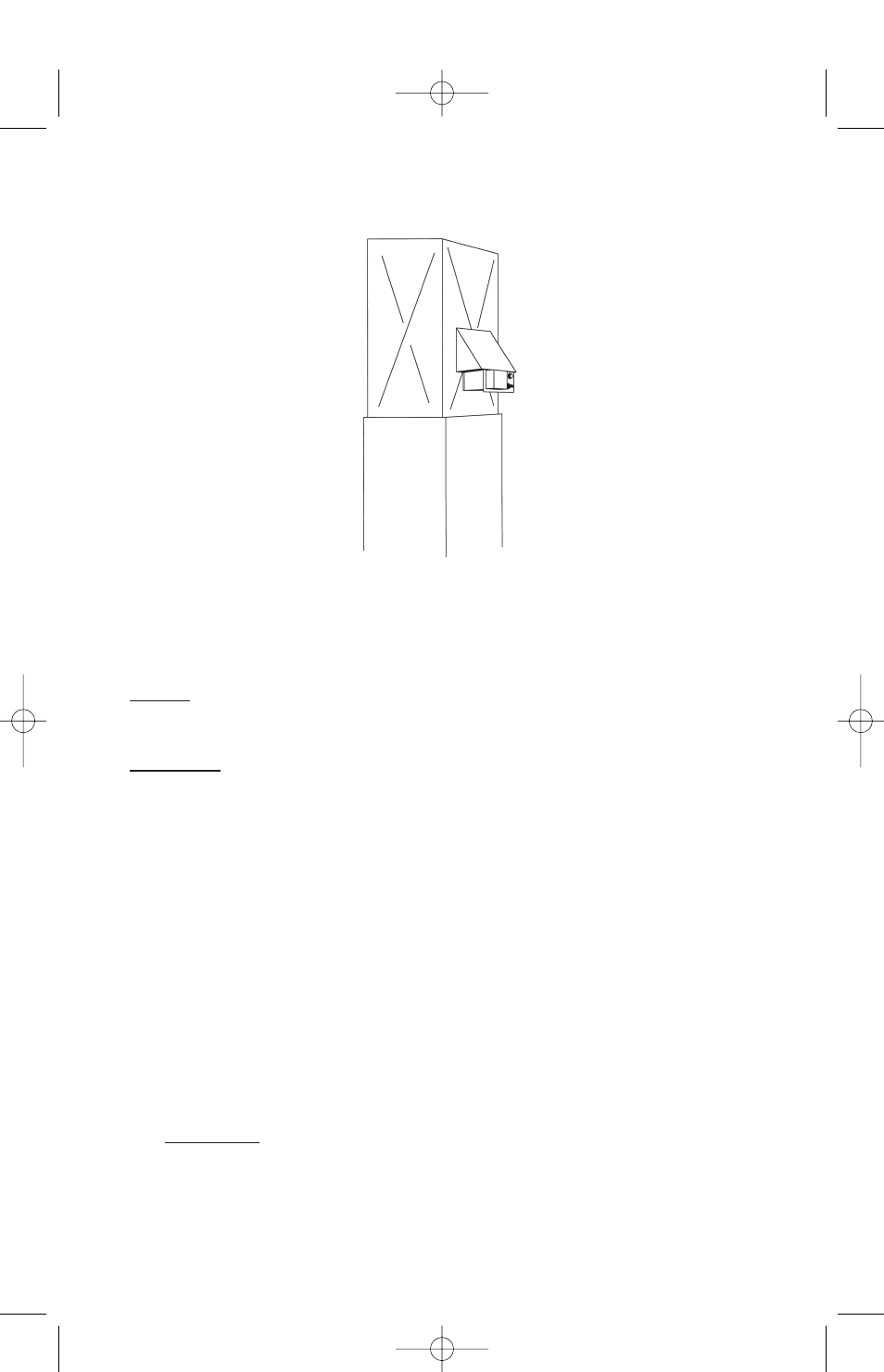

Figure 2 - External Side Mount
Option B requires a transition to be made and usually needs duct
reinforcement to hold the humidifier securely in place (see Figure 2).
NOTE: For this configuration, the humidifier is mounted on the outside of
the plenum, rather than the inside, so as not to restrict airflow.
DANGER: Wear safety glasses when cutting or drilling. Do not cut
into any air conditioning or electrical accessories during installation.
Electrocution is possible if you come in contact with a live electrical
wire; blindness can occur if Freon contacts your eyes.
To install:
1.
Construct a transition and attach it to the plenum.
2.
Attach the humidifier mounting template to the location selected at
the base of the transition.
3.
Drill two (2) holes marked “B” with a 7/64" drill bit. Drill a hole in the
center of the shaded area of the template and remove the shaded
area using snips.
CAUTION: Follow the dotted line carefully.
4.
Remove the template.
