10
Mounting the Humidifier

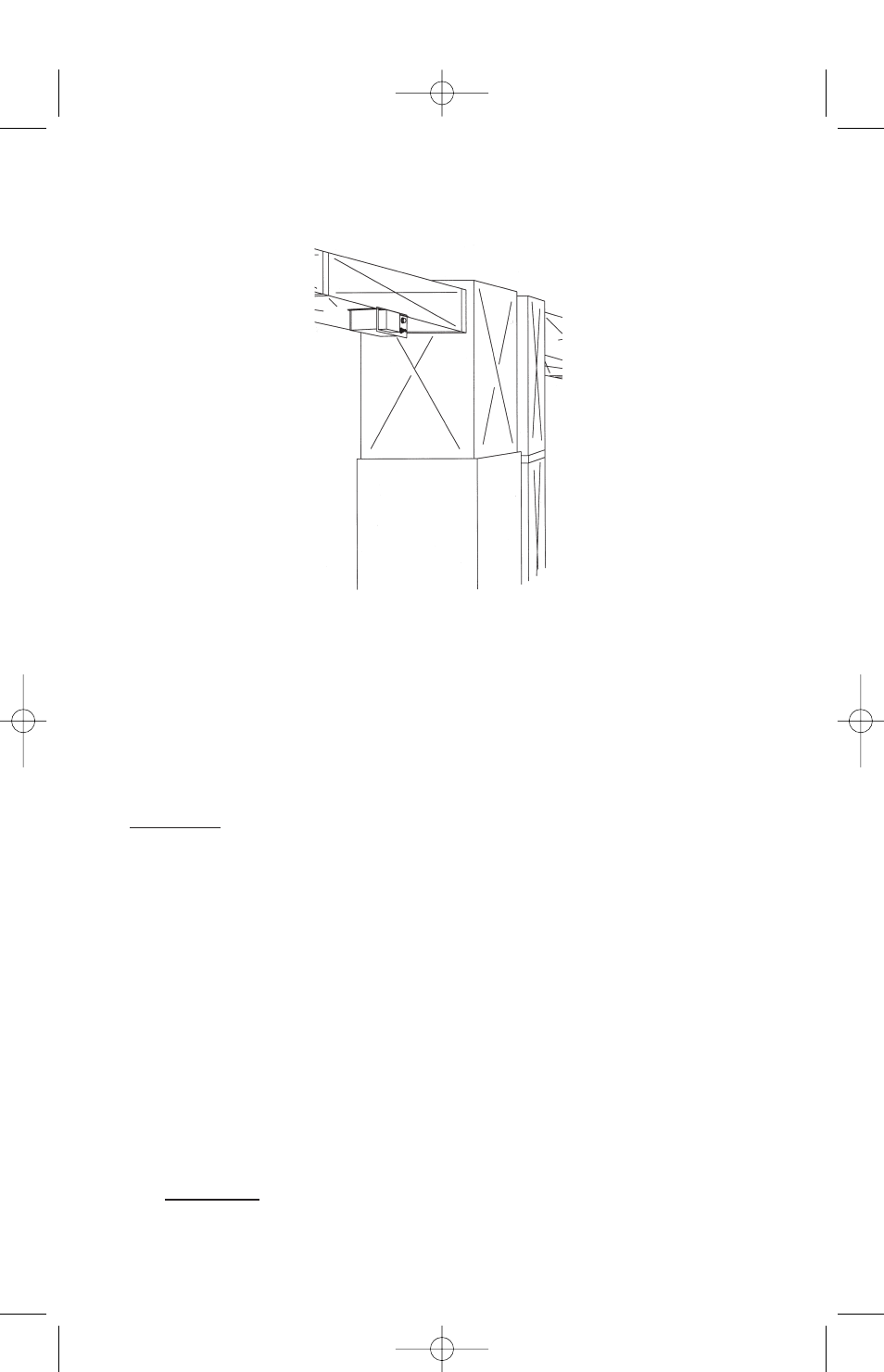

Figure 1 - Duct Edge Mount
Option A: Duct Edge Mount
Option A is the preferred method of mounting because it requires the
least amount of duct reinforcement to support the humidifier and keep it
level. A duct width of at least 10 inches is necessary. Wider ducts may
need to be reinforced in order to hold the humidifier level.
DANGER: Wear safety glasses when cutting or drilling. Do not cut
into any air conditioning or electrical accessories during installation.
Electrocution is possible if you come in contact with a live electrical
wire; blindness can occur if Freon contacts your eyes.
To install:
1. Fold the humidifier mounting template along the line marked “FOLD
LINE”. Attach the template so the top/front is located on the side of
the duct, and the remainder of the template is on the bottom of the
duct.
2. Drill three (3) holes marked “A” with a 7/64" drill bit. Drill a hole in the
center of the shaded area of the template and remove the shaded
area using tin snips.
CAUTION: Follow the dotted line carefully.
