Option C: Duct Center Mount

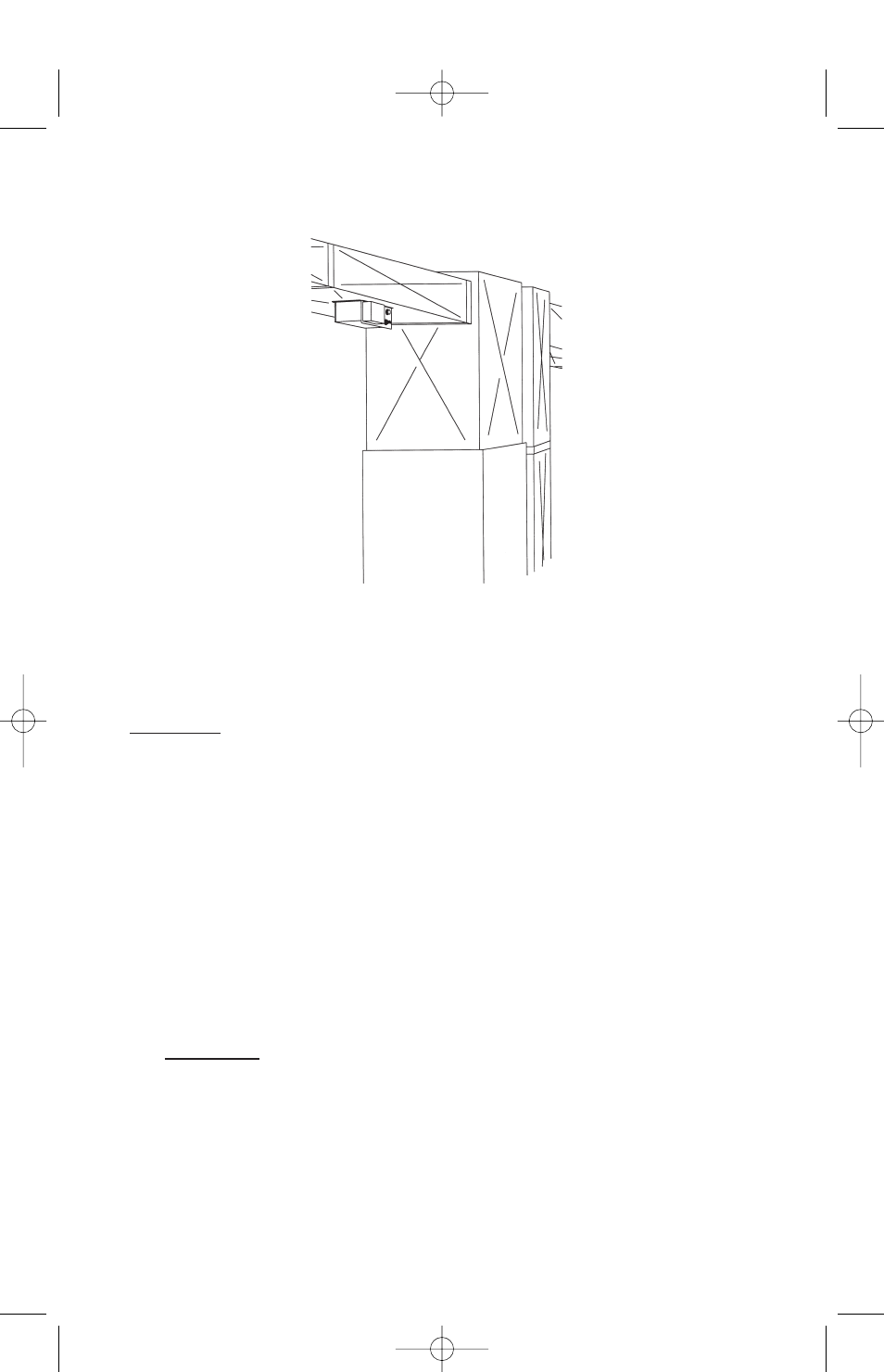

Figure 3 – Duct Center Mount
Option C requires duct reinforcement to hold the humidifier securely in
place (see Figure 3).
DANGER: Wear safety glasses when cutting or drilling. Do not cut
into any air conditioning or electrical accessories during installation.
Electrocution is possible if you come in contact with a live electrical
wire; blindness can occur if Freon contacts your eyes.
To install:
1.
Attach the humidifier mounting template to the selected location on
the bottom of the duct.
2.
Drill two (2) holes marked “B” with a 7/64" drill bit. Drill a hole in the
center of the shaded area of the template and remove the shaded
area using tin snips.
CAUTION: Follow the dotted line carefully.
3.
Remove the template.
4.
Cut two (2) pieces of S-Cleat 8" long and one (1) piece 10-1/2" long.
