Use of Tension Gauge sgb007
5. Check the adjustment of the right foot control pedal
for full forward speed. The pedal should rest on the
foot plate when the pump is stroked in the full
forward position. To make an adjustment, discon-
nect the ball joint from the pedal arm and loosen the
jam nut (See Figure 6). Place the foot control pedal
forward against the foot rest and adjust the ball joint
on the rod until the stud aligns with the hole in the
arm. Bolt the ball joint to the arm and tighten the
jam nut.
6. Start the engine. The wheels should rotate only
when the foot control pedal is depressed.
BELT TENSION
Stop engine and remove the key from the ignition
before making any adjustments. Wait for all
moving parts to come to a complete stop before
beginning work.
-NOTE-
The Hydro Drive Belt is spring-loaded and
does not require adjustment.
To adjust cutter deck drive and blade belts:
1. Remove belt cover.
CAUTION:

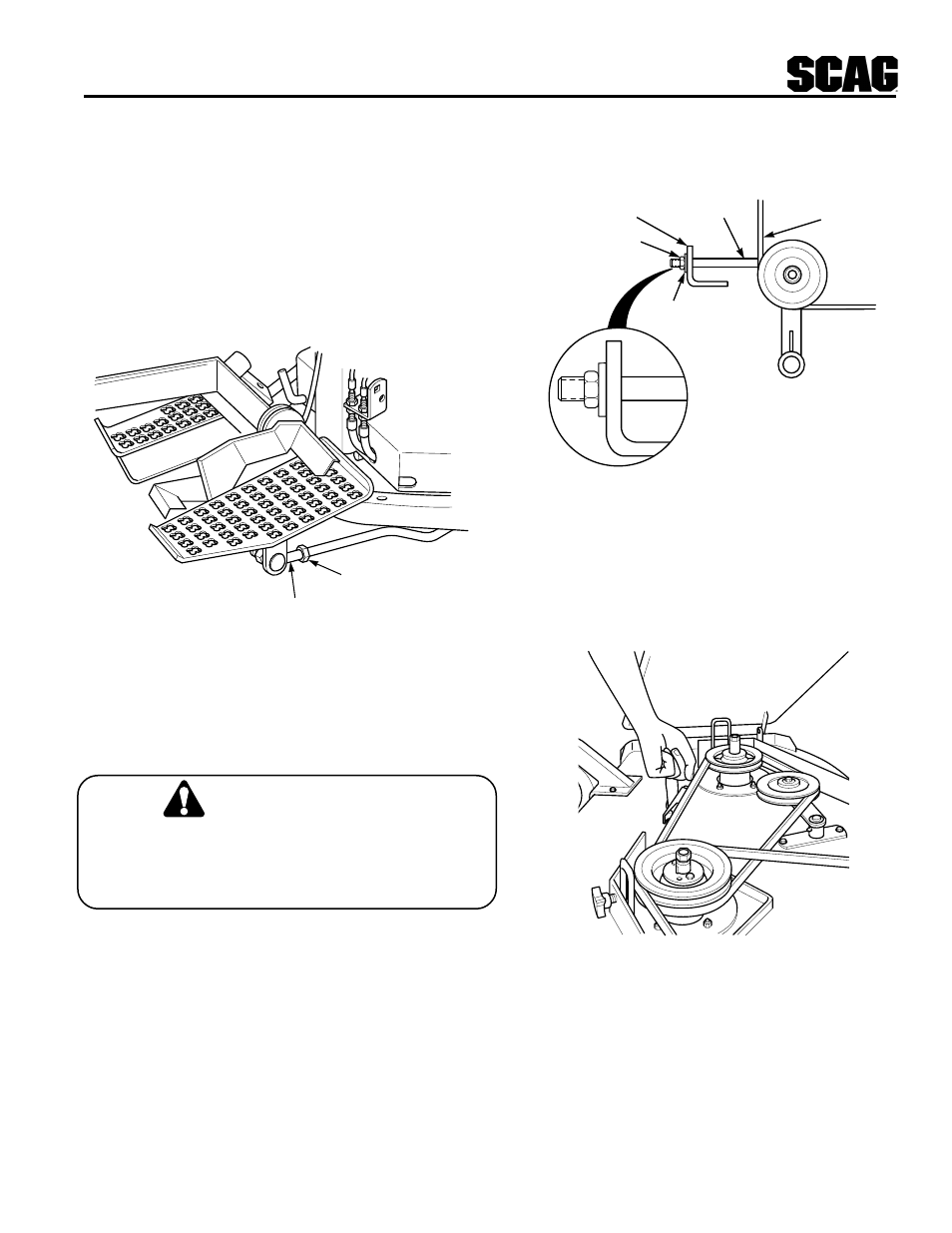

Figure 7. Cutter Deck Drive Belt Tension
Figure 6. Foot Control Pedal Adjustment
SGB030
Jam Nut
Ball Joint
Figure 8. Blade Drive Belt Tension Check
3. To adjust blade drive belt: Using a belt tension
gauge, check the belt tension so that the belt moves
1/2" with 10 pounds of pressure. (See Figure 8).
Nut
"J" Bolt
Belt
End Of L-Shaped
Bracket
Washer
SGB044
2. To adjust cutter deck drive belt: Adjust the nut so
that the belt moves 1/2" with 10 pounds of pres-
sure. (See Figure 7).
