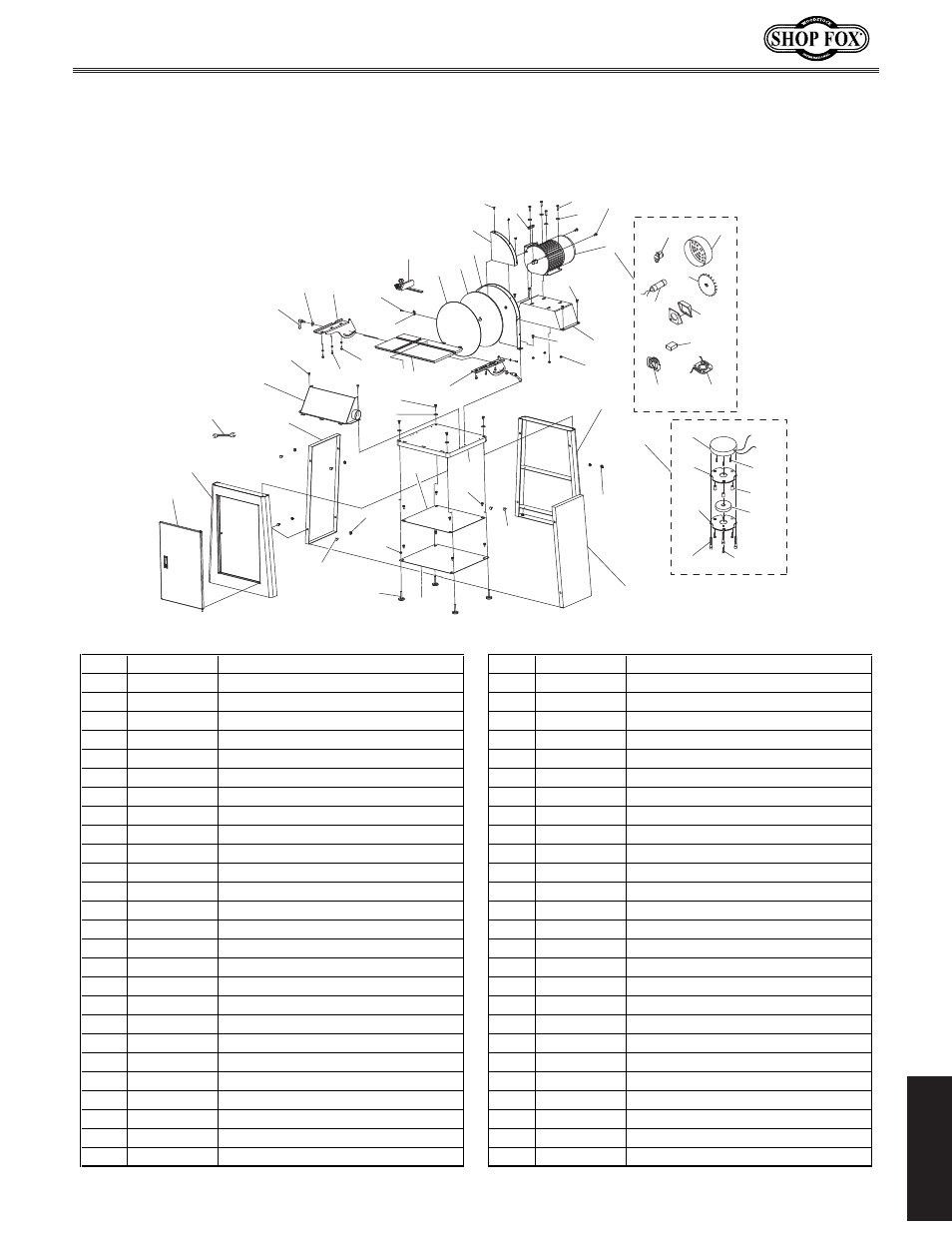

Woodstock W1815 - Manual (Page 31)

-29-
Model W1815 (Mfg. Since 10/10)
PA
RT
S
REF PART # DESCRIPTION REF PART # DESCRIPTION
1 X1815001 DUST COLLECTION HOOD 20 XPW07 FLAT WASHER 5/16
2 X1815002 MOTOR BASE 21 XPB118M HEX BOLT M8-1.25 x 45
3 X1815003 MOTOR 1-1/2HP 220V 1PH 22 XPB06M HEX BOLT M8-1.25 x 12
3-1 X1815003-1 MOTOR FAN COVER 23 XPB03 HEX BOLT 5/16-18 X 1
3-2 X1815003-2 MOTOR FAN 24 XPLW03M LOCK WASHER 6MM
3-3 XPC500 S CAPACITOR 500M 125V 25 X1815025 POINTER
3-4 X1815003-4 MOTOR JUNCTION BOX 26 XPS38M PHLP HD SCR M4-.7 X 10
3-5 X1815003-5 ON/OFF SWITCH 27 X1815027 FOOT 1/2"D 3/8-16 X 1-1/2
3-6 X1815003-6 REGULATOR CHE 200-230VAC 28 XPS45M PHLP HD SCR M5-.8 X 5
3-7 X1815003-7 CENTRIFUGAL SWITCH 29 X1815029 STAND UPPER SHELF
3-8 X1815003-8 CONTACT PLATE 30 XPFB01M FLANGE BOLT M6-1 x 12
4 X1815004 KEY 31 XPCB05 CARRIAGE BOLT 5/16-18 X 3/4
5 X1815005 DISC COVER 32 XPFN02 FLANGE NUT 5/16-18
6 X1815006 DISC 15" 33 X1815033 DOOR WITH LATCH
7 X1815007 SANDING DISC 15" 80 GRIT PSA 34 XPN02 HEX NUT 5/16-18
8 X1815008 LOCK HANDLE ASSEMBLY 35 X1815035 MITER GAUGE ASSEMBLY
9 X1815009 LEFT TABLE BRACKET 36 XPN08 HEX NUT 3/8-16
10 X1815010 RIGHT TABLE BRACKET 37 X1815037 MOTOR BRAKE ASSEMBLY
11 X1815011 TABLE 37-1 X1815037-1 BRAKE
12 X1815012 DISC GUARD 37-2 X1815037-2 INSIDE PLATE
13 X1815013 STAND TOP PLATE 37-3 X1815037-3 OUTSIDE PLATE
14 X1815014 STAND DOOR PANEL 37-4 XPCAP95M CAP SCREW M5-.8 X 30
15 X1815015 STAND REAR PANEL 37-5 PS22M PHLP HD SCR M5-.8 X 25
16 X1815016 STAND SIDE PANEL 37-6 X1815037-6 BRAKE PAD
17 X1815017 STAND LOWER SHELF 37-7 X1815037-7 SPACER
18 XPB03M HEX BOLT M8-1.25 X 16 37-8 X1815037-8 COMPRESSION SPRING
19 XPB02M HEX BOLT M6-1 X 12 38 XPWR1013 WRENCH 10 X 13
