-24-

Model W1815 (Mfg. Since 10/10)

SE

RV

IC

E

Table Tilt Calibration

When the table is perpendicular to the sanding disc, the

scale should read 0˚. If not, follow this procedure.

Tools Needed:

Machinist's Square ..............................................1

Phillips Head Screwdriver .....................................1

To calibrate the table tilt, do these steps:

1. DISCONNECT MACHINE FROM POWER!

2. Using a try square or machinist’s square, set one

edge on the table surface and the other against the

face of the disc, as shown in

Figure 19.

Note: This can be done with the sandpaper

installed, although it is somewhat more precise

without the sandpaper.

3. Loosen the lock handles and adjust the table angle

until it is perfectly perpendicular to the disc, then

tighten the lock handles while holding the table in

place.

4. Loosen the degree scale pointer, index the pointer

on 0˚, then retighten the screw.

5. Recheck the scale accuracy with the square.

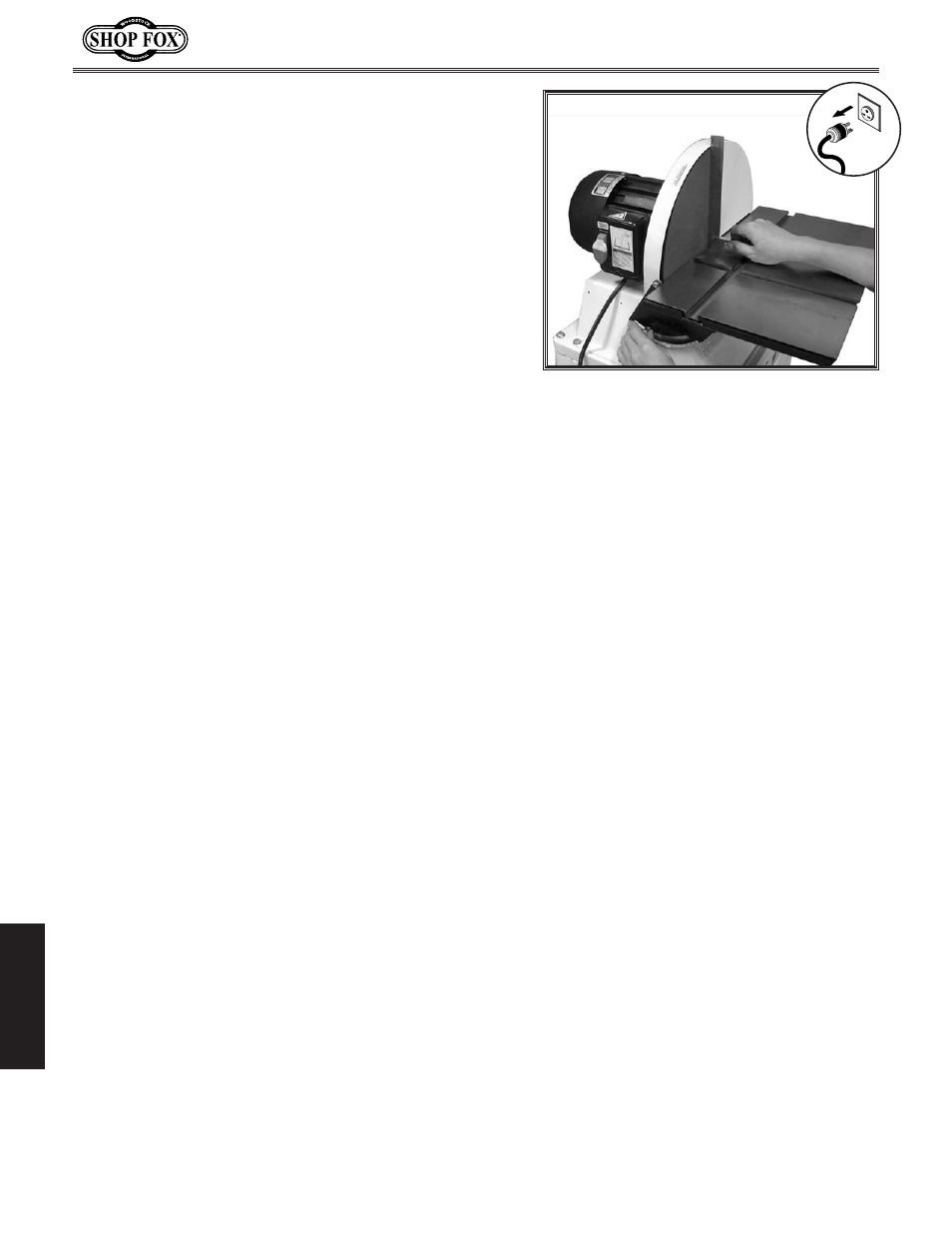

Figure 19. Squaring the table.
