Model W1815 (Mfg. Since 10/10)

SE

TU

P

This machine has been carefully packaged for safe

transportation. If you notice the machine has been

damaged during shipping, please contact your authorized

Shop Fox dealer immediately.

Unpacking

SETUP

The following is a description of the main components

shipped with the Model W1815. Lay the components out

to inventory them.

Note: If you can't find an item on this list, check the

mounting location on the machine or examine the

packaging materials carefully. Occasionally we pre-install

certain components for safer shipping.

Main Inventory (Figure 3)

Qty

A. Sander Assembly ...........................................1

B. Left Side Panel ............................................1

C. Right Side Panel ...........................................1

D. Upper Shelf 16

3

4

" x 15

3

8

" ..............................1

E. Lower Shelf 16" x 18

3

8

" ..................................1

F. Rear Panel ..................................................1

G. Panel and Door Assembly .................................1

H. Miter Gauge Assembly ....................................1

I. Wrench 10 x 13 ............................................1

J. Bolt Bag .....................................................1

Flat Washers

5

16

" ........................................4

Hex Bolts M8-1.25 x 45 .................................4

Hex Nuts

3

8

"-16 .........................................4

Feet ........................................................4

Flange Bolts M6-1 x 12 ..................................8

Carriage Bolts

5

16

"-18 x

3

4

" ...........................8

Flange Nuts

5

16

"-18 .....................................8

Inventory

A

J

I

H

B

C

D

E

F

G

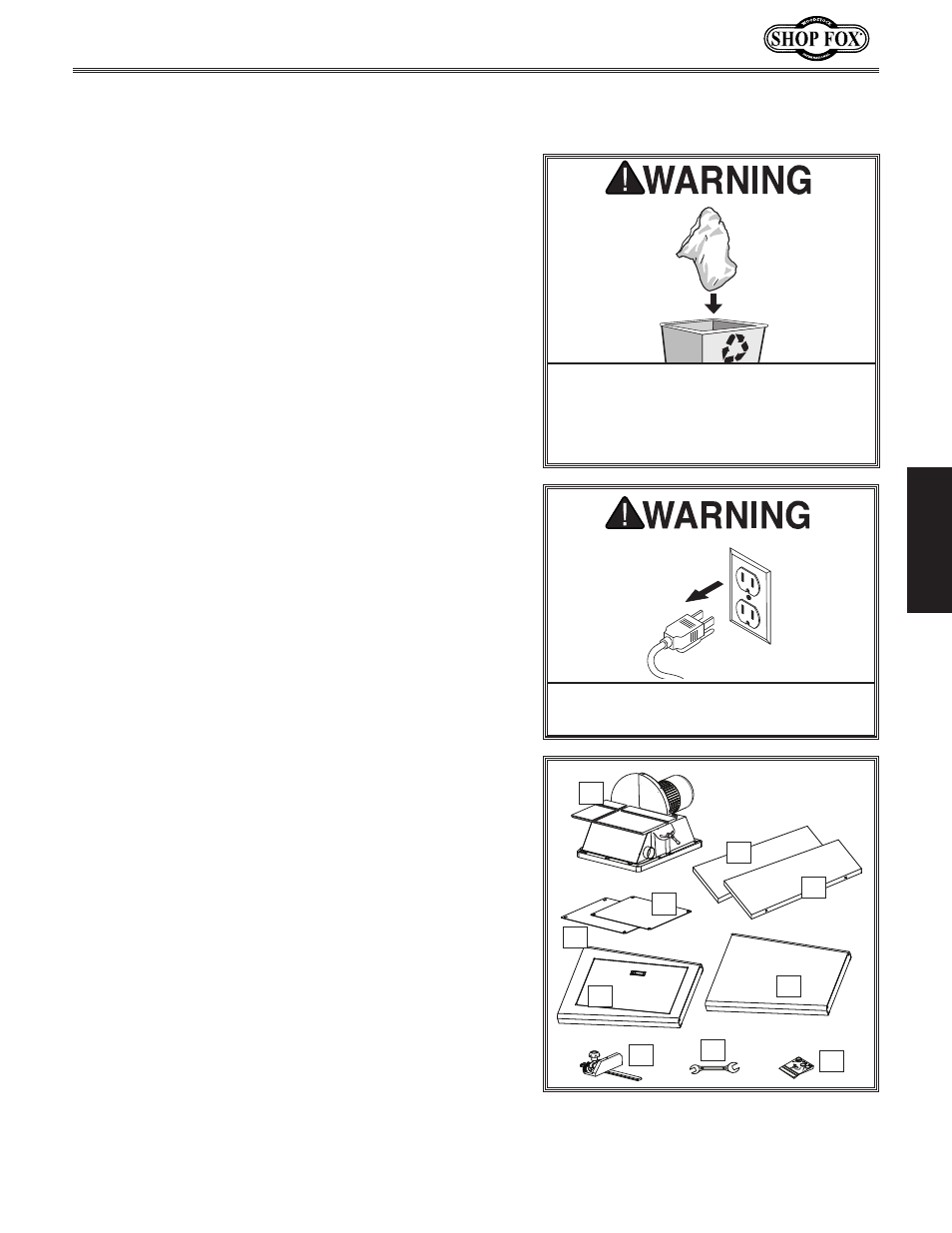

Figure 3. Inventory.

Keep machine disconnected from

power until instructed otherwise.

Immediately discard all plastic bags

and packing materials to eliminate a

choking and suffocation hazard for

children and animals.
