Grounding Requirements

This machine MUST be grounded. In the event of certain

types of malfunctions or breakdowns, grounding provides

a path of least resistance for electric current to travel—in

order to reduce the risk of electric shock.

Improper connection of the equipment-grounding wire will

increase the risk of electric shock. The wire with green

insulation (with/without yellow stripes) is the equipment-

grounding wire. If repair or replacement of the power

cord or plug is necessary, do not connect the equipment-

grounding wire to a live (current carrying) terminal.

Check with a qualified electrician or service personnel

if you do not understand these grounding requirements,

or if you are in doubt about whether the tool is

properly grounded. If you ever notice that a cord or

plug is damaged or worn, disconnect it from power, and

immediately replace it with a new one.

Grounding Prong

Current Carrying Prongs

6-15 PLUG

GROUNDED

6-15 RECEPTACLE

220V

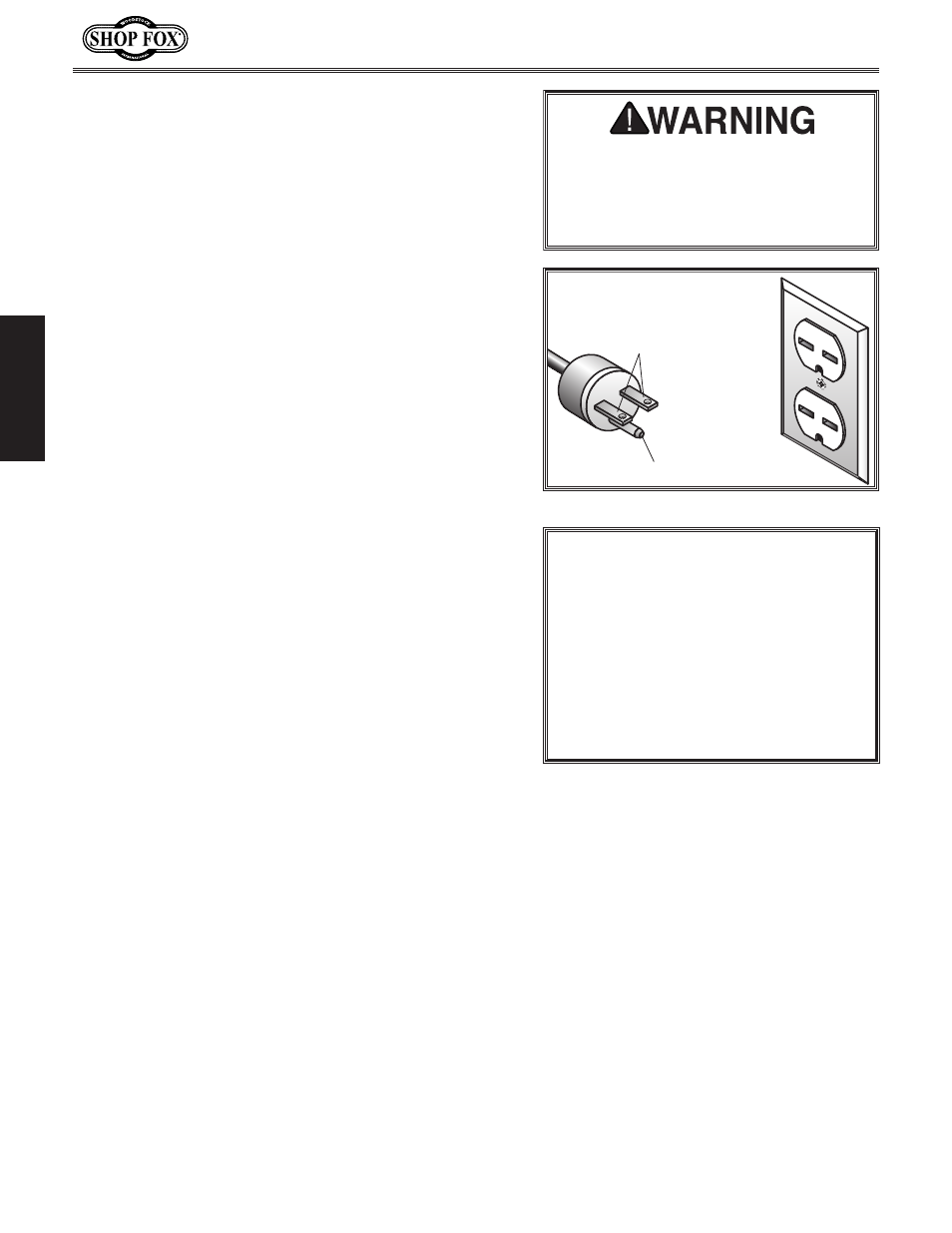

Figure 2. NEMA 6-15 plug & receptacle.

This machine is equipped with a power cord that has an

equipment-grounding wire and NEMA 6-15 grounding plug.

The plug must only be inserted into a matching receptacle

(see

=`^li\) that is properly installed and grounded in

accordance with local codes and ordinances.

For 220V Connection

K_\ dXZ_`e\ dljk Y\ gifg\icp j\k lg

Y\]fi\ `k `j jX]\ kf fg\iXk\% ;F EFK

Zfee\Zk k_`j dXZ_`e\ kf k_\ gfn\i

jfliZ\ lek`c `ejkilZk\[ kf [f cXk\i `e

k_`jdXelXc%

Extension Cords

We do not recommend using an extension cord with this

machine. Extension cords cause voltage drop, which may

damage electrical components and shorten motor life.

Voltage drop increases with longer extension cords and

the gauge smaller gauge sizes (higher gauge numbers

indicate smaller sizes).

Any extension cord used with this machine must contain a

ground wire, match the required plug and receptacle, and

meet the following requirements:

Minimum Gauge Size at 220V ...................... 14 AWG

Maximum Length (Shorter is Better) ................50 ft.

NOTICE

No adapter is available or should

be used with this machine. If the

machine must be reconnected for

use on a different type of electric

circuit, the reconnection should be

made by qualified service personnel;

and after reconnection, the machine

must comply with all local codes and

ordinances.
