Model W1815 (Mfg. Since 10/10)
SE
TU
P

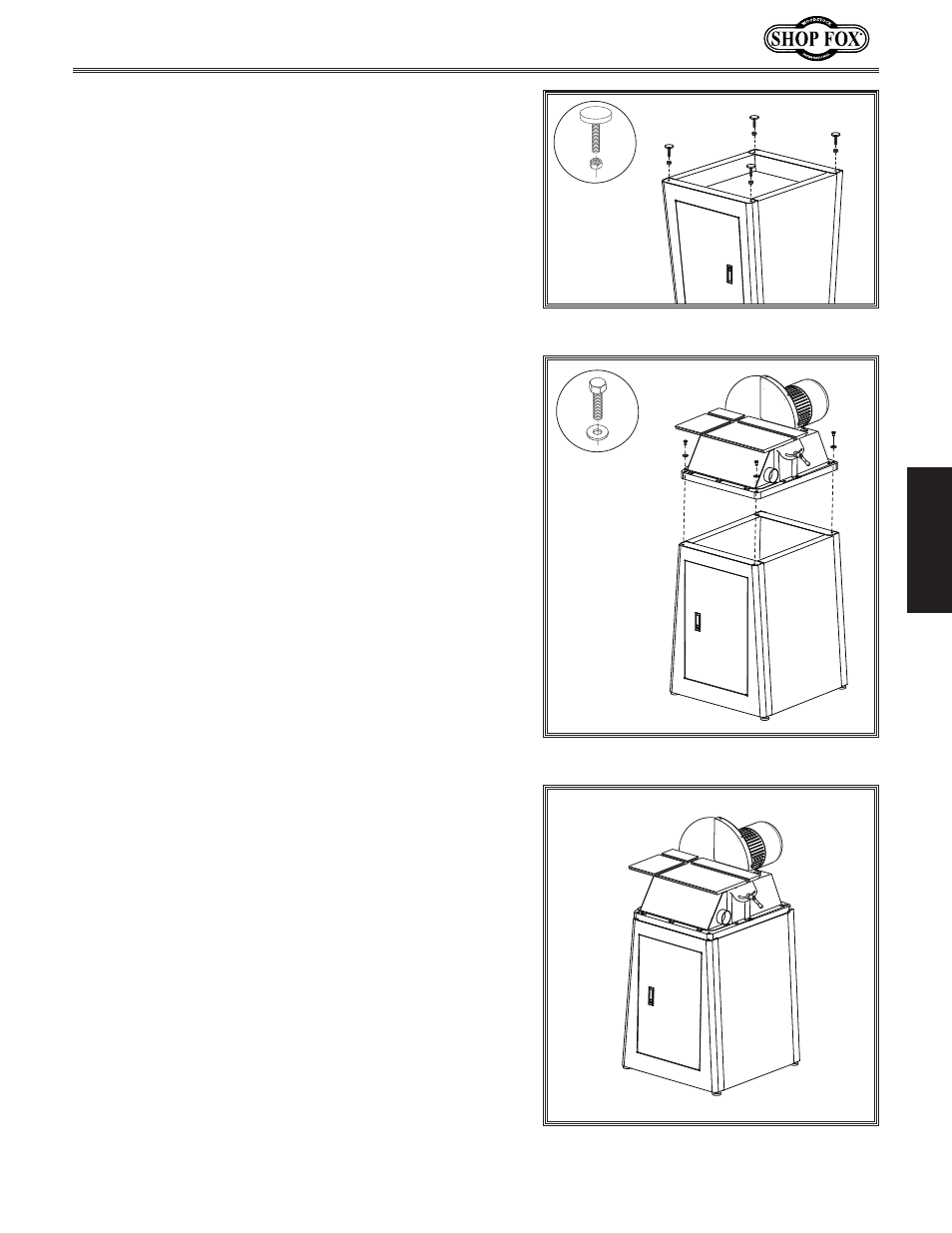

Figure 9. Sander installation.
Figure 10. Fully assembled sander.
Figure 8. Foot installation.
7. Make sure that all tools and objects used for setup
are cleared away from the machine.
The machine is now fully assembled, and ready for
the test run procedure.
4. Invert the cabinet, thread the (4) hex nuts onto the
feet, and install the feet into the base, as shown in
Figure 8.
5. Adjust the feet to the same height, tighten the hex
nuts against the cabinet base to lock the feet in
place, then return the cabinet right side up.
6. With the help of another person, place the sanding
unit onto the top of the cabinet, as shown in Figure
9, and fasten it to the cabinet using (4) M8-1.25 x 45
hex bolts and (4) 5 ⁄
16
" flat washers.
