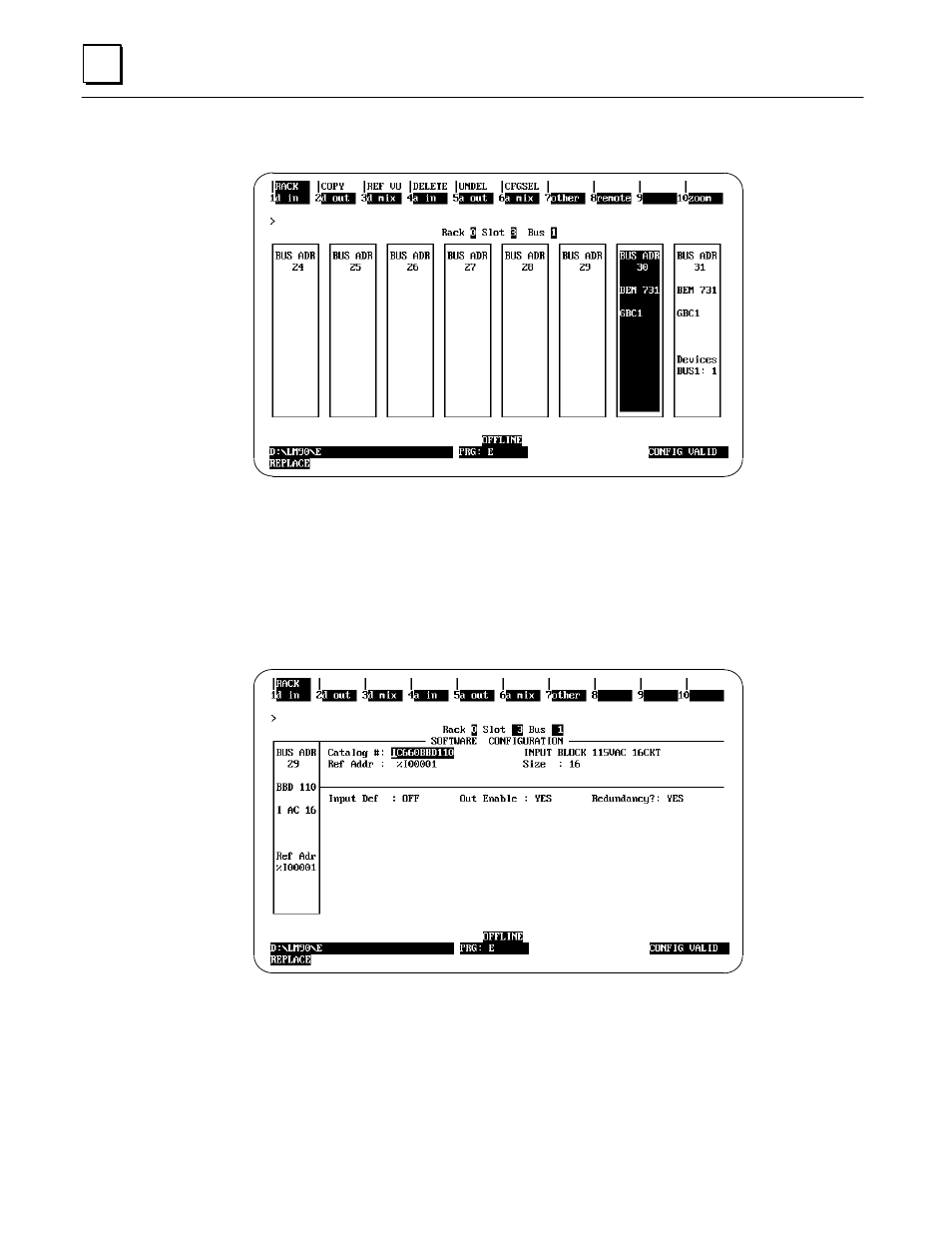

At this point, Press the Esc key and the bus screen will appear as shown below.
Configure Genius I/O Blocks
We will now configure a block for Bus Address 29. Move the cursor to block 29 and
configure a bus block (Discrete Input block IC660BBD110 for this example) by selecting
the F1 function key (d in), then Enter. The bus block’s detail screen will appear as shown
below.
The Redundancy? parameter at the middle right of the screen is based on the Redund
Mode that was selected for the Genius Bus Controller. At this point, you may configure
the required type and number of blocks on the Genius bus.
