Series 90-70 Hot Standby CPU Redundancy User’s Guide – December 1993

GFK-0827

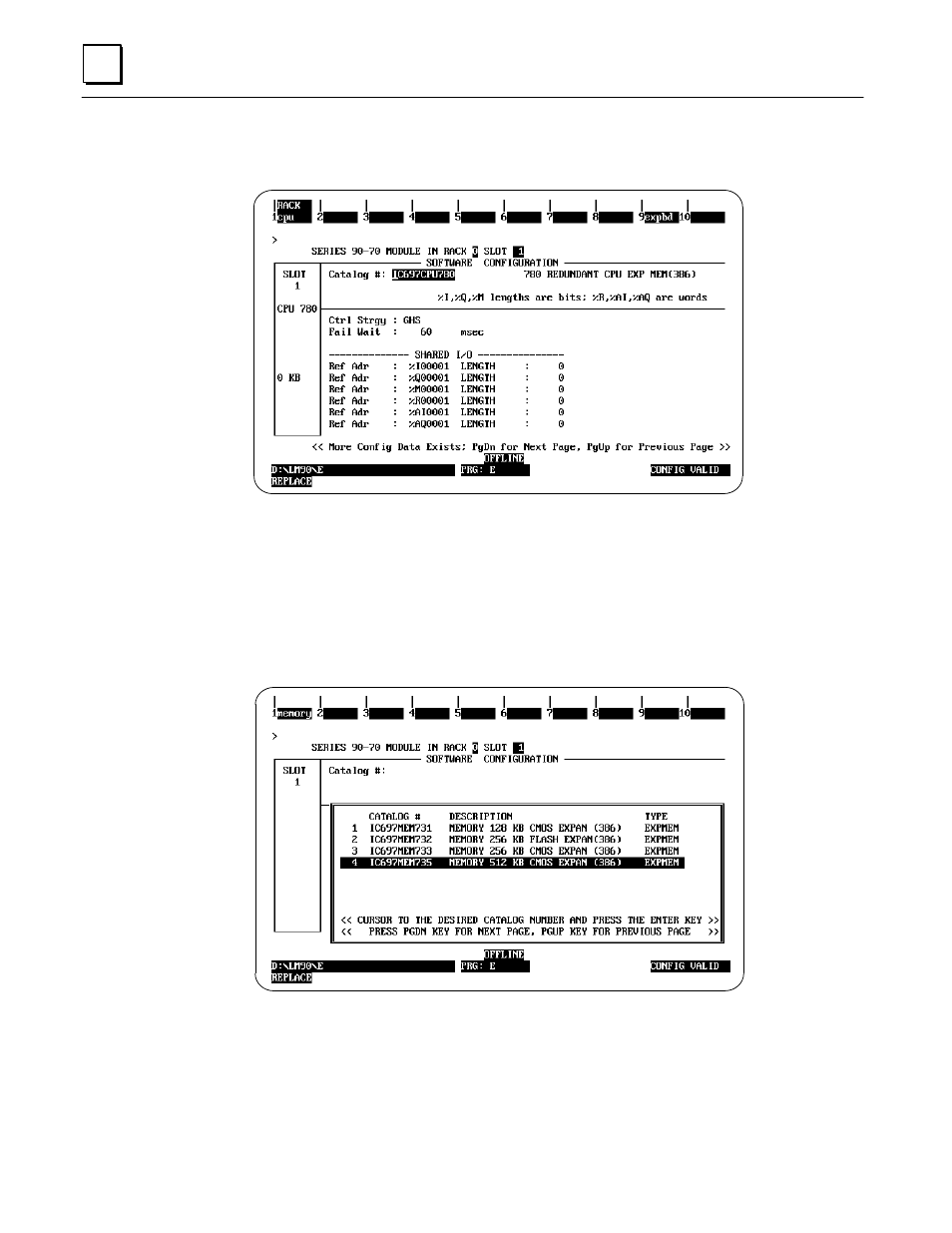

Press the PgDn key again to go to the next page of the CPU module. The default screen
for page 3 of the CPU detail screen appears as shown below:

Select an Expansion Memory Board

To configure a CPU expansion memory board for the CPU 780, press the expnd softkey
(F9), then the memory softkey (f1). The detail screen for selection of the expansion
memory board with the catalog list of the CPU expansion memory modules appears as
follows: Position the cursor on the desired memory board and press Enter.
