6

Daily Operations / Connections

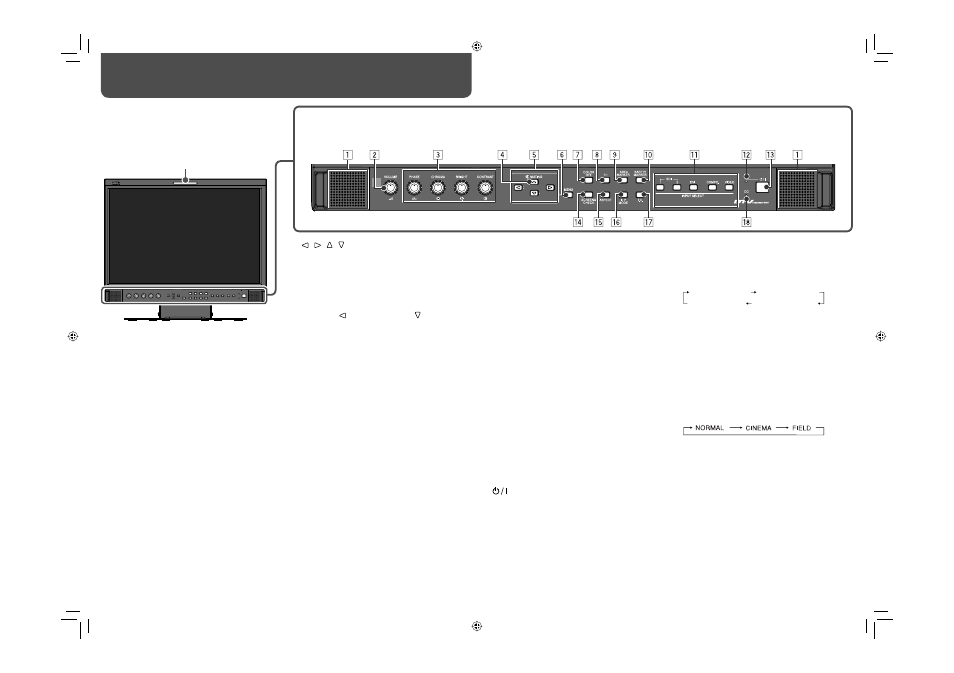

7 Front panel

p SAFETY MARKER button/lamp

Displays/hides the safety marker.
• Adjust the area of the safety marker in “AREA

MARKER” of the MAIN MENU (

☞ page 10).

• This function does not work when displaying the

picture in the 1:1 mode.

• This function does not work when “SAFETY

MARKER” or “R-SAFETY MARKER” is set to
“OFF” (

☞ “AREA MARKER” in the MAIN MENU

on page 10).

q INPUT SELECT buttons/lamps

Selects an input.
SDI 1: E. AUDIO HD/SD SDI (IN 1) terminal
SDI 2: E. AUDIO HD/SD SDI (IN 2) terminal
DVI: DVI-D (HDCP) terminal
COMPO.: COMPO. terminal
VIDEO: VIDEO terminal
• The lamp for the selected input lights.

w Power lamp

Unlit: The monitor is completely off (both the
POWER and DC switch on the rear panel are
turned off).
Lights in Green: The monitor is on.
Lights in orange: The monitor is off (on standby).
Flashes in orange: The monitor is in the P. SAVE
(power save) mode (

☞ “NO SYNC ACTION” in

“SYNC FUNCTION” on page 11).

e

button

Turns on and off (on standby) the monitor.
• The power switches (POWER and DC) are

equipped on the rear panel of the monitor (

☞ p,

w on page 8).

r SCREENS CHECK button/lamp

Displays only the selected element (R, G, or B) of
the video signal.
• Each time you press this button, the screen

changes in the following order.

t ASPECT button/lamp

Changes the aspect ratio of the picture from 4:3
to 16:9 when the picture of 16:9 aspect ratio is
squeezed into 4:3 format signal.
• To return to 4:3, press the button again.
• This function does not work when displaying the

picture in the 1:1 mode.

y I / P MODE button/lamp

Selects a proper mode corresponding to the input
picture.
• Each time you press the button, the mode

changes as follows.

u T.C. (time code) button/lamp

Activates/deactivates the display of the time data
(time code) contained in the SDI signal.

i DC lamp

When the DC 12 V power voltage is being lowered
due to the battery consumption, the lamp changes
to orange from green. When the voltage becomes
lower than a certain level, the monitor automatically
turns off and the lamp turns to red.
• Make sure to turn off the DC switch on the rear

panel before replacing the battery.

• The length of time that the lamp lights in orange

differs depending on the type of battery or the
battery condition. It is recommended to replace
the battery when the lamp turns to orange.

Tally lamp
This lamp is controlled by the tally function
of the MAKE/TRIGGER terminal (

☞ “ TALLY

SELECT” in “FUNCTION SETTING” on page
12 and “External Control” on page 14).

• “NO EFFECT” is displayed when you press a button which is not available for the current input or signal format (the lamp lights even when the function does not

actually work).

• The items controlled by the MAKE system cannot be controlled by the buttons on the front panel (“REMOTE ON” is displayed and the lamps do not light).

5

/ / / buttons

When a menu screen is displayed
\ Selects or adjusts menu items.

☞ “Menu Operations” on page 7

When no menu screen is displayed
\ Selects the audio channels of EMBEDDED

AUDIO signals.
☞ “Audio Channel Selection” on page 7

• Pressing button while holding button displays

the SET-UP MENU.
☞ “Menu Operations” on page 7

6 MENU button

Displays the MAIN MENU.
☞ “Menu Operations” on page 7

7 COLOR OFF button/lamp

Displays only the luminance signal.

8 1:1 button/lamp

Displays the picture in the original resolution of the
input signal.
• When the input video signal has a higher

resolution than the resolution of the panel, the
picture is trimmed and center portion is displayed.

• The aspect ratio of the picture may change

depending on the input signal.

9 AREA MARKER button/lamp

Displays/hides the area marker.
• Select the style of the area marker in “AREA

MARKER” of the MAIN MENU (

☞ page 10).

• This function works when the picture is displayed

in 16:9 aspect ratio.

• This function does not work when “MARKER

SELECT” or “R-MARKER SELECT” is set to
“OFF” (

☞ “AREA MARKER” in the MAIN MENU

on page 10).

1 Speakers (stereo)

The speakers emit the same audio signal emitted
from the AUDIO (MONITOR OUT) terminals.
☞ “ 5 AUDIO (MONITOR OUT) terminals” on
page 8

2 VOLUME adjustment knob

Adjusts the volume.

3 Picture adjustment knob

PHASE: Adjusts the picture hue.
CHROMA: Adjusts the picture color density.
BRIGHT: Adjusts the picture brightness.
CONTRAST: Adjusts the picture contrast.

4 MUTING button

Turns off the sound when a menu screen is not
displayed.
• To cancel the function, press the button again or

turn the VOLUME adjustment knob.

• Muting function is also canceled when

“BALANCE” of “AUDIO SETTING” in the MAIN
MENU is changed (

☞ page 11).

Normal screen

Red screen

Green screen

Blue screen
