SECTION 2: INSTALLATION/OPERATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS (CONTINUED)
32
ELECTRIC HEAT: The thermostats for the machines covered in this manual are factory set. They should not be adjusted except
by an authorized service agent.

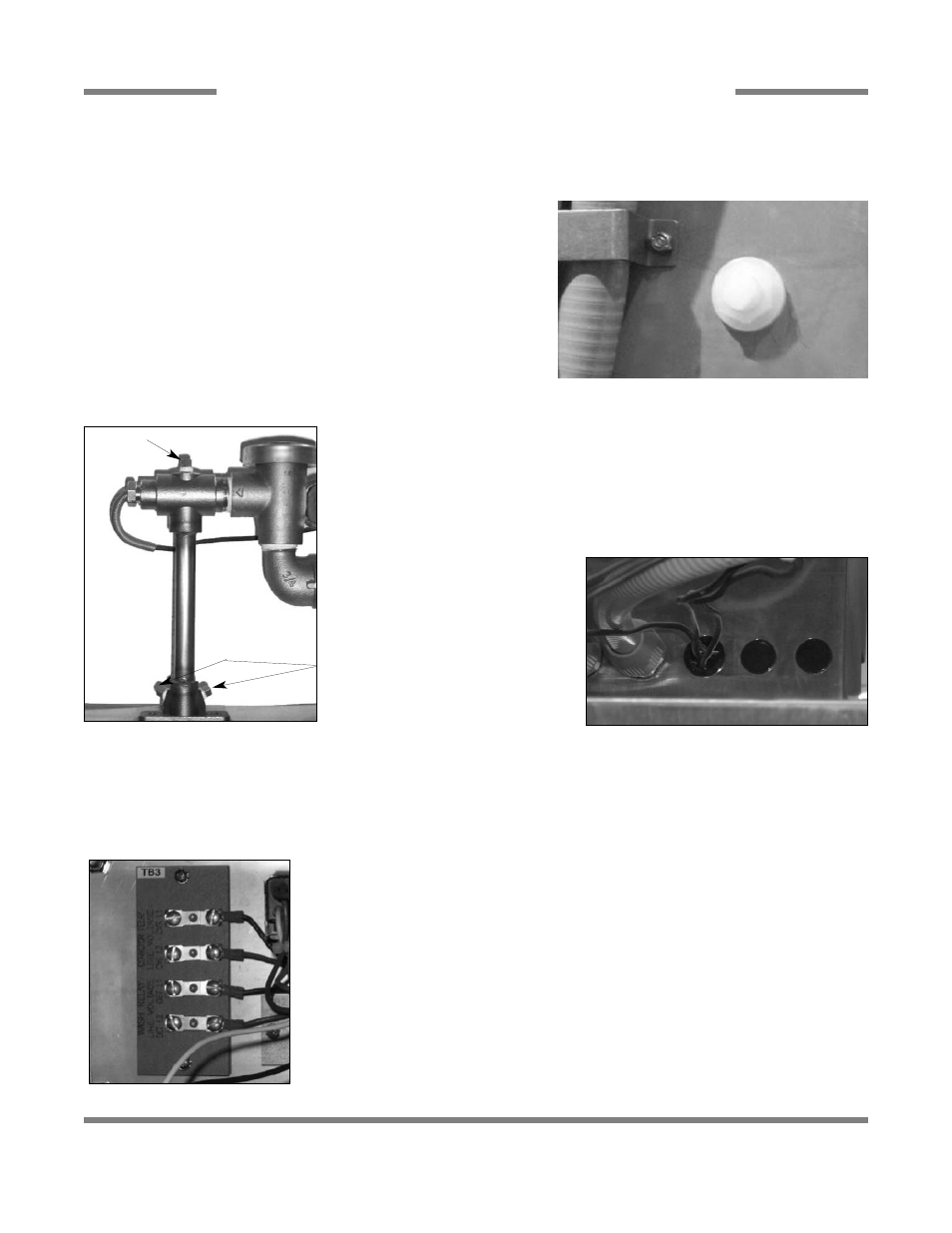

CHEMICAL FEEDER EQUIPMENT: Detergent may be introduced
into the unit through the removal of the bulkhead plug in the rear of the
tub and replacing it with the third party detergent injection fitting.
Remove the bulkhead plug in the side of the tub to install the deter-
gent concentration probe.
For more information concerning detergent concerns, please refer to
the page entitled “Detergent Control”.
The 1/8” brass plugs on the incoming plumbing rinse injector may be removed to install
rinse aid injection fittings.
All wires for the chemical injectors should be routed through
one of the extra openings in the back of the control box.
Terminals in the control box marked “CVS” provide a constant voltage signal whenever the
drive motor is operating.
Terminals in the control box marked “DET” provide a voltage signal whenever the wash motor
is operating.
Connection Points
Detergent Connection Point
(Machine rear view)
Brass Plug
Brass Plugs
