AJ-64 Conveyor Series Technical Manual 7610-003-30-93
Issued: 05-02-2006 Revised: N/A
SECTION 1: SPECIFICATION INFORMATION

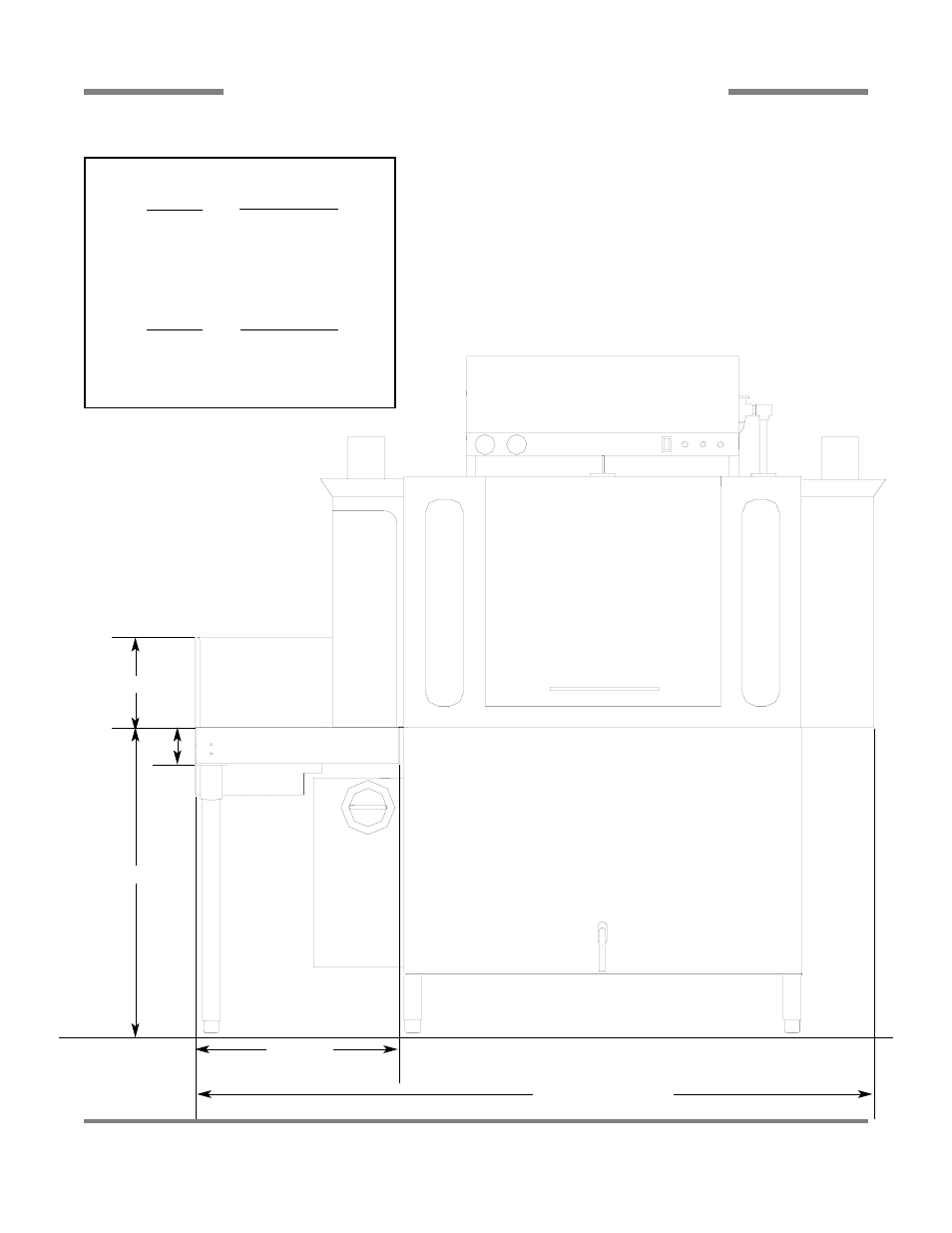

SIDE LOADER INSTALLATION DIMENSIONS
25
Refer to chart above.
34”
23” or 30”
10”
4”
23” SIDE LOADER DIMENSIONS
30” SIDE LOADER DIMENSIONS
MODEL
AJ-64
AJ-86
AJ-100
MODEL
AJ-64
AJ-86
AJ-100
DIMENSIONS
95”
117”
131”
DIMENSIONS
102”
124”
138”
(Left to Right installation shown for reference.)
NOTE: ALL DIMENSIONS ARE TYPICAL.
Depending on the width of the
sideoloader.
