Page 6
4

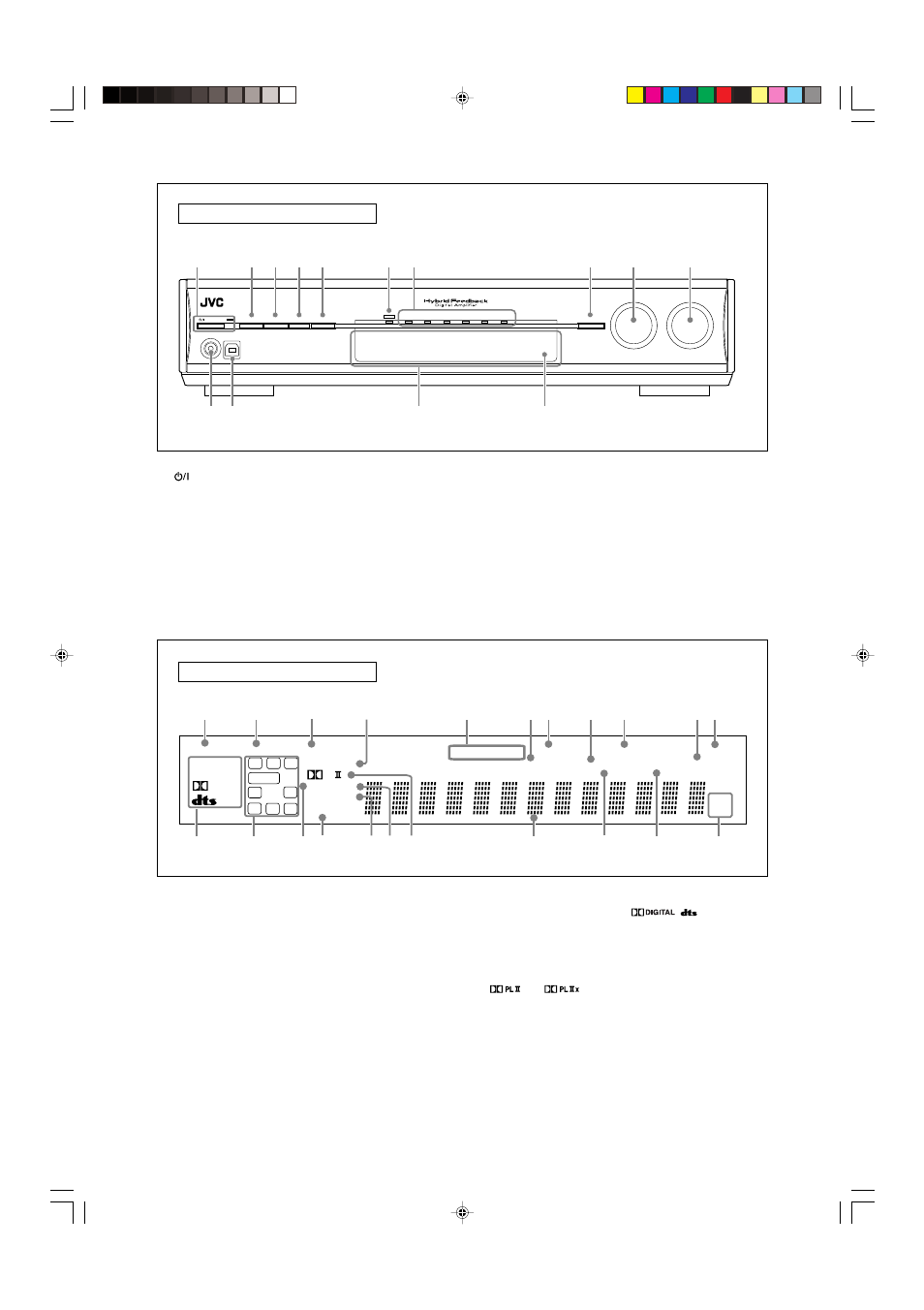

Front panel
1
STANDBY/ON button and standby lamp (16)
2 DIMMER button (18)
3 SETTING button (20, 22)
4 ADJUST button (27)
5 SURROUND button (37)
6 HDMI lamp (9)
7 Source lamps
DVR/DVD, VCR, DBS, TV, USB, FM/AM
8 • SET button (20, 22, 27)
• TUNER PRESET button (32)
9 • SOURCE SELECTOR (16, 32)
• MULTI JOG (20, 22, 27, 32, 37)
p MASTER VOLUME control (17)
q PHONES jack (17)
w USB terminal (15)
e Display window (see below)
r Remote sensor (6)
See pages in parentheses for details.
1 ANALOG indicator (17)
2 DUAL MONO indicator (24)
3 AUTO SURR (surround) indicator (37)
4 HEADPHONE indicator (17, 35)
5 Tuner operation indicators (31)
TUNED, STEREO
6 DIGITAL EQ indicator (28)
7 AUTO MUTING indicator (32)
8 C (center).TONE indicator (30)
9 ONE TOUCH OPERATION indicator (26)
0 INPUT ATT (attenuate) indicator (29)
- SLEEP indicator (19)
= Digital signal format indicators (18, 33, 34)
DIGITAL AUTO, LINEAR PCM,
,
, 96/24
~ Signal and speaker indicators (19)
! NEO:6 indicator (34)
@ VIRTUAL SB indicator (36)
# 3D-PHONIC indicator (34, 35)
$ DSP indicator (35)
%
and
indicator (33 – 36)
^ Main display
& B (bass).BOOST indicator (29)
* MIDNIGHT indicator (25)
( Frequency unit indicators
MHz (for FM stations), kHz (for AM stations)
Display window
A U D I O / V I D E O C O N T R O L R E C E I V E R
STANDBY/ON
DIMMER
SETTING
ADJUST
SURROUND
DVR / DVD
VCR
DBS
TV
USB
FM/AM
SOURCE
SELECTOR
/ MULTI JOG
MASTER
VOLUME
SET / TUNER PRESET
PHONES
USB
HDMI
4 5
6
q
e
r
8
9
p
3
2
1
7
w
DIGITAL EQ
LINEAR PCM
L
LS
SB
RS
S.WFR
PL
NEO : 6 DSP
3D-PHONIC
LFE
C
R
96 / 24
AUTO SURR
C.TONE
VIRTUAL SB
B.BOOST
TUNED
STEREO
SLEEP
AUTO MUTING
INPUT ATT
HEADPHONE
MHz
kHz
x
MIDNIGHT
DIGITAL
DIGITAL AUTO
ANALOG
DUAL MONO
SB
S
SB
ONE TOUCH OPERATION
CC CONVERTER 1 2
1
2
3
7
6
%
@
#
~
!
-
=
$
4
5
0
9
8
^
&
*
(
