22

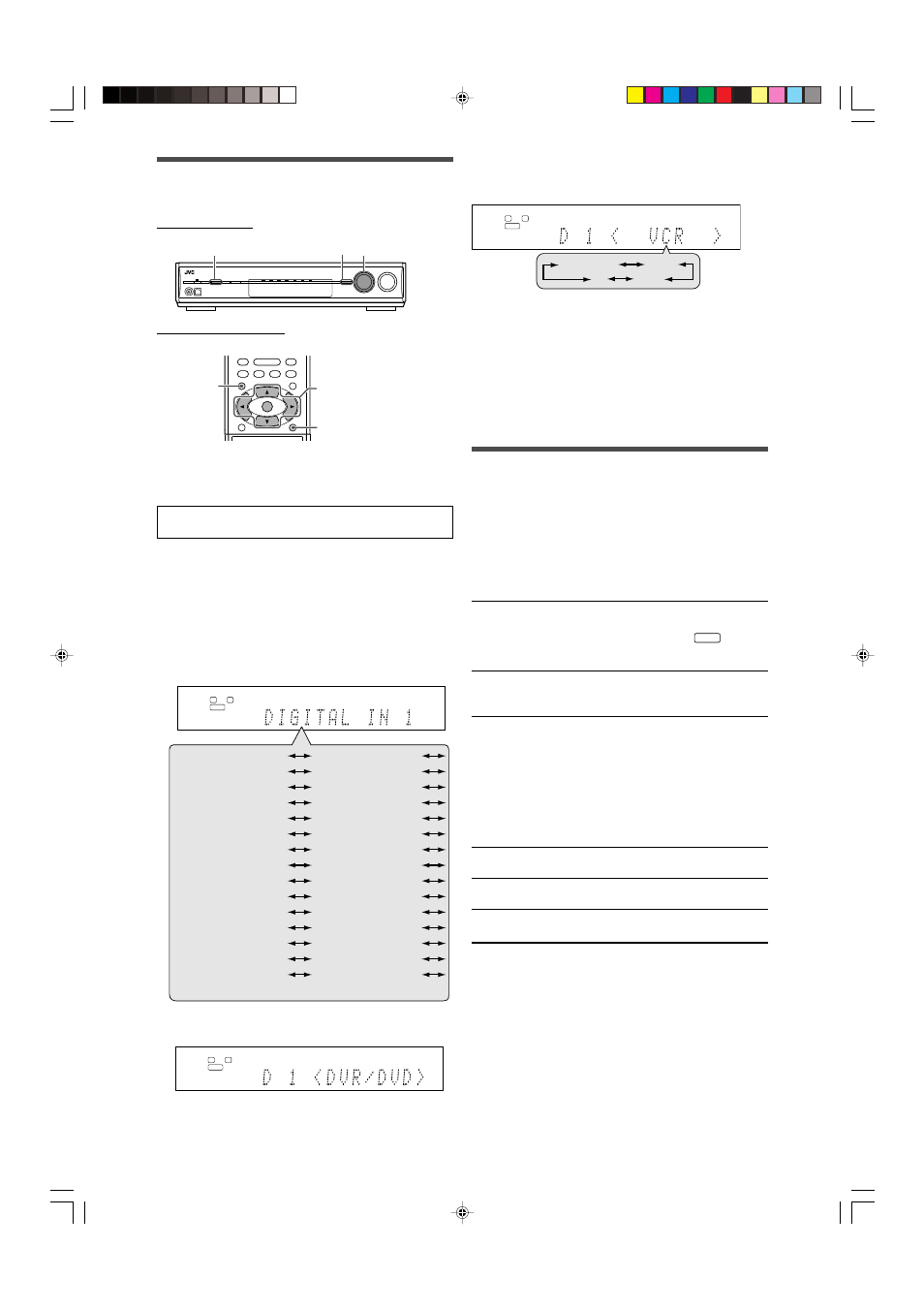

Operating procedure
Menu operation buttons
On the front panel:
From the remote control:
Before you start, remember...
There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step
1 again.
In this section, the operation of the remote control is used for
explaining.
Ex.: When setting DIGITAL IN 1 terminal.
1
Press SETTING.
MULTI JOG now works for the setting operation.
2
Press 5 / ∞ button repeatedly until the item
you want to set appears on the display.
• On the front panel, turn MULTI JOG.
• As you press
5 / ∞ button, the setting items change as
follows:
3
Press SET.
The current setting of the selected item appears.
Setting the speakers
To obtain the best possible surround effect from the Surround and
DSP modes, register the setting about the speaker after all
connections are completed.
• If you have used Quick Speaker Setup on page 20, this setting
is not required.
Setting subwoofer information—SUBWOOFER
Select whether you have connected a subwoofer or not.
SUBWFR
<
YES
>
Select when you have connected a
subwoofer.
The subwoofer indicator (
S.WFR ) lights up
on the display. You can adjust the
subwoofer output level (see page 28).
SUBWFR
<
NO
>
Select when you have disconnected a
subwoofer. Selecting this changes the
front speaker size to “LRG” (see below).
Initial setting: SUBWFR < NO >
Setting the speaker size—FRONT SPK (front
speakers), CENTER SPK (center speaker),
SURROUND SPK (surround speakers), S BACK SPK
(surround back speakers)
Register the sizes of all the connected speakers.
<
LRG
>
(large) Select when the cone speaker size is larger
than 12 cm (4 3 / 4 inches).
< SML > (small) Select when the cone speaker size is smaller
than 12 cm (4 3 / 4 inches).
<
NO
>
Select when you have disconnected a speaker.
(Not selectable for the front speakers.)
Initial setting:
<
LRG
>
(for the front speakers)
<
SML
>
(for other speakers)
L
S.WFR
R
ANALOG
CENTER SPK
SURROUND SPK
FRONT R DIST
CENTER DIST
S BACK SPK
SUBWOOFER
FRONT SPK
DIST UNIT
FRONT L DIST
SURR L DIST
S BACK DIST
SURR R DIST
DUAL MONO
CROSSOVER
SUBWOOFER OUT
EX/ES/PLIIx
LFE ATT MIDNIGHT MODE
HDMI SELECT
VIDEO OUTPUT
AUDIO DELAY
ONE TOUCH OP
DIGITAL IN 1 DIGITAL IN 2
QUICK SPK SET
S BACK OUT
S BACK L DIST S BACK R DIST
DIGITAL IN 3
(Back to the beginning)
CMPNT SELECT
4
Press 2 / 3 button repeatedly to select the
appropriate setting.
• On the front panel, turn MULTI JOG.
Your setting is stored.
5
Press SET.
6
Repeat steps 2 to 5 to set other items if
necessary.
7
Press EXIT.
• On the front panel, press SETTING.
The source indication resumes on the display.
