27

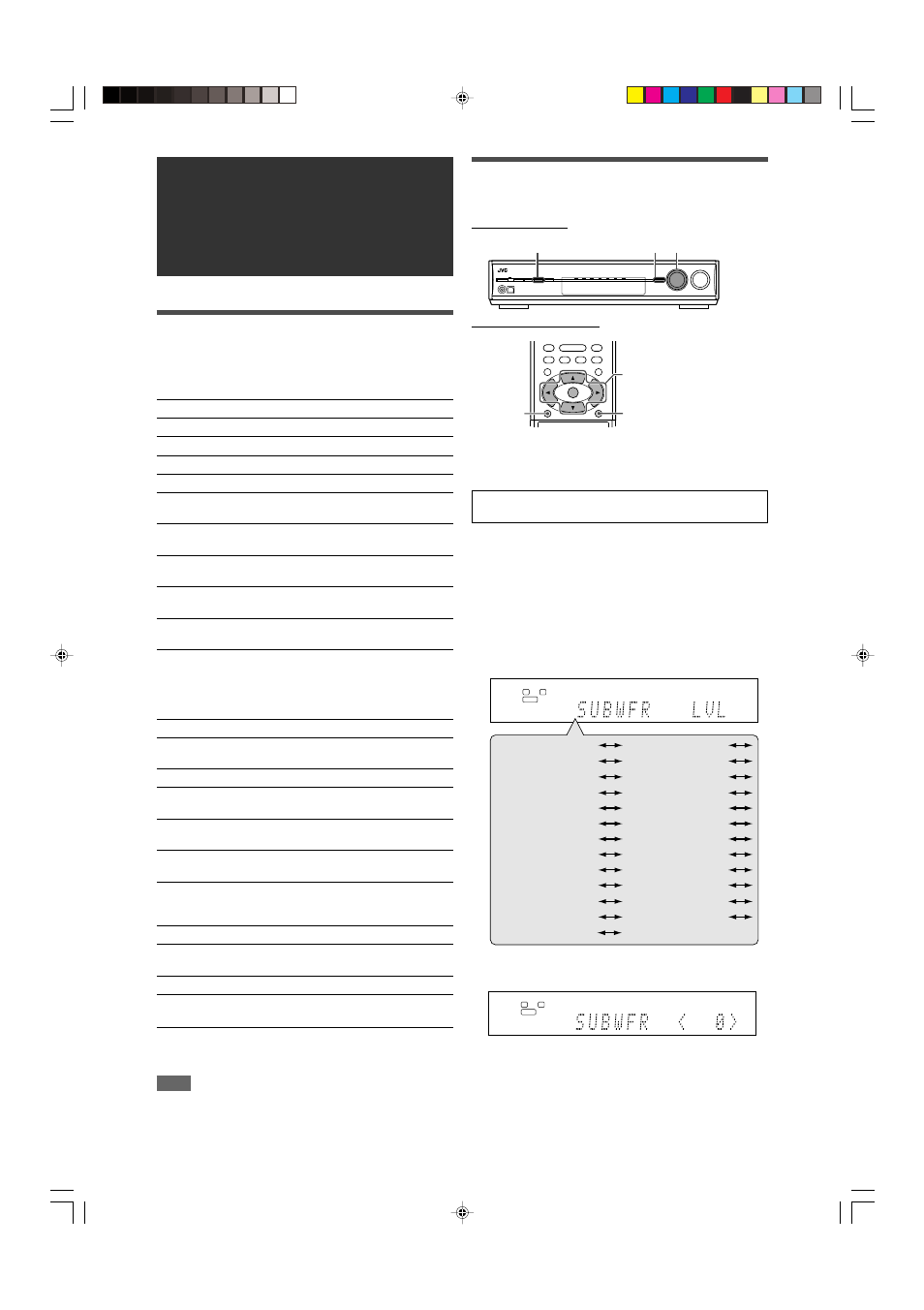

Sound adjustments
You can make sound adjustment to your preference after
completing basic setting.
Basic adjustment items
You can adjust the following items. See pages in parentheses for
details.
• You cannot select the items which is not available with the
current setting.
Items To do
SUBWFR LVL* 1 Adjust the subwoofer output level. (28)
FRONT L LVL* 1 * 2 Adjust the left front speaker output level. (28)
FRONT R LVL* 1 * 2 Adjust the right front speaker output level. (28)
CENTER LVL* 1 * 2 Adjust the center speaker output level. (28)
SURR L LVL* 1 * 2 Adjust the left surround speaker output level.
(28)
SURR R LVL* 1 * 2 Adjust the right surround speaker output
level. (28)
S BACK LVL* 1 * 2 Adjust the surround back speaker output
level. (28)
S BACK L LVL* 1 * 2 Adjust the left surround back speaker output
level. (28)
S BACK R LVL* 1 * 2 Adjust the right surround back speaker
output level. (28)
D EQ 63Hz* 1 Adjust the equalization pattern of each
D EQ 250Hz* 1 band. (28)
D EQ 1kHz* 1
D EQ 4kHz* 1
D EQ 16kHz* 1
BASS BOOST* 1 Boost the bass level. (29)
INPUT ATT Attenuate the input level of analog source.
(29)
EFFECT* 1 Adjust the effect level. (29)
ROOM SIZE Select the room size for your virtual listening
room. (29)
LIVENESS* 1 Select the liveness level for your virtual
listening room. (29)
PANORAMA Add “wraparound” sound effect with side-
wall image. (30)
CENTER WIDTH Adjust the center channel localization
between the center speaker and the left/
right speakers. (30)
DIMENSION Adjust sound localization pattern. (30)
CENTER GAIN Adjust the sound localization of the center
channel. (30)
CENTER TONE* 1 Make the center tone soft or sharp. (30)
CENTER ALIGN Align the vertical localization of the center
channel signals. (30)
* 1 You can adjust these items directly from the remote control.
* 2 If you have used Quick Speaker Setup on page 20, these
settings are not required.
NOTE
Some items above are not available when multi channel PCM
(see page 34) signals recorded in DVD-Audio are coming. See
page 11 for details.
Operating procedure
Menu operation buttons
On the front panel:
From the remote control:
Before you start, remember...
There is a time limit in doing the following steps. If the setting is
canceled before you finish, start from step
1 again.
In this section, the operation of the remote control is used for
explaining.
Ex.: When adjusting subwoofer output level.
1
Press ADJUST.
On the front panel, MULTI JOG now works for the sound
adjustment.
2
Press 5 / ∞ button repeatedly until the item
you want to adjust appears on the display.
• On the front panel, turn MULTI JOG.
• As you press
5 / ∞ button, the adjustment items change as
follows:
3
Press SET.
The current setting for the selected item appears.
L
S.WFR
R
ANALOG
CENTER LVL
SURR L LVL
D EQ 63Hz
D EQ 250Hz
(Back to the beginning)
SURR R LVL
FRONT L LVL
FRONT R LVL
S BACK L LVL
S BACK R LVL
D EQ 4kHz
BASS BOOST D EQ 16kHz
LIVENESS
CENTER WIDTH PANORAMA
ROOM SIZE
DIMENSION
CENTER GAIN CENTER TONE
CENTER ALIGN
SUBWFR LVL
S BACK LVL
INPUT ATT
EFFECT
D EQ 1kHz
CONTINUED ON THE NEXT PAGE
1 7
2 ( 5 / ∞ button)
3,5 (SET button)
4 ( 2 / 3 button)
L
S.WFR
R
ANALOG
2,4 1,7 3,5
