3
A/V CONTROL RECEIVER
REMOTE CONTROL RM-SRXD401J
TV/VIDEO AUDIO
TV DBS/CATV DVR/DVD
FM USB
VCR
TV DBS DVR/DVD
AM
VCR
TV VOL CHANNEL VOLUME
MUTING
TUNING/REW FF/TUNING
SETTING DVD MENU
ADJUST EXIT
AUDIO INPUT
VIDEO INPUT
DECODE MODE
D.EQ FREQ
D.EQ LEVEL
C.TONE SLEEP
EFFECT LIVENESS TEST
L – FRONT – R
L – SURR – R
CENTER SUBWFR
L – S. BACK – R
1 2 3
4 5 6
7 8 9
10 0 10
RETURN
B.BOOST MEMORY
FM MODE
DIMMER
100
DVR
DVD
MIDNIGHT
EX/ES/PL x
SURROUND
SET 8
2
3
;
5
6
7
l
1
4
9
p
e
r
h
g
f
d
s
o
t
y
i
u
q
w
j
k
a

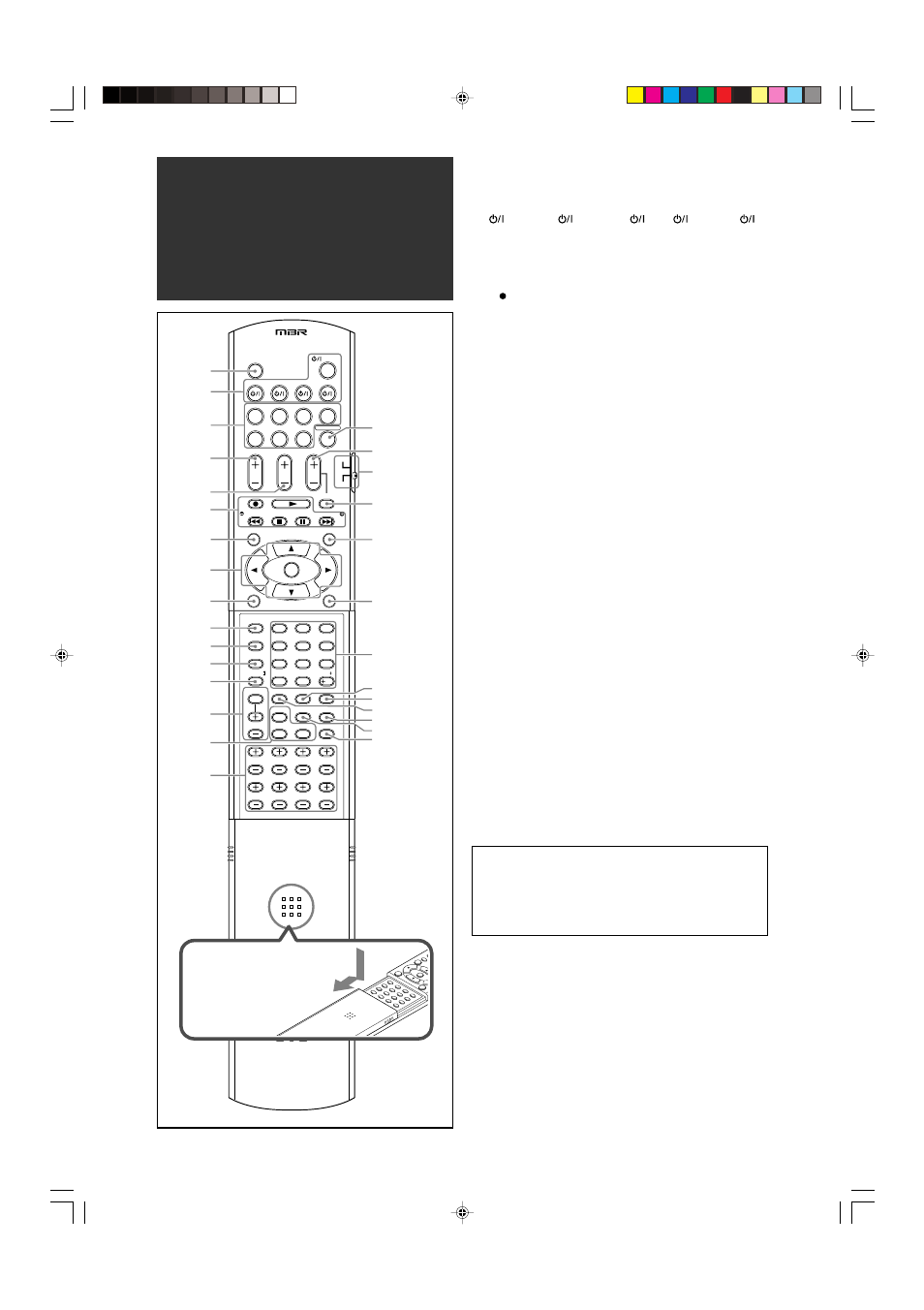

Remote control
See pages in parentheses for details.
1 TV/VIDEO button (40, 42)
2 Standby/on buttons (16, 40– 44)
AUDIO, TV , DBS/CATV , VCR , DVR/DVD
3 Source selecting buttons (16, 31, 40– 44)
TV, DBS, VCR, DVR/DVD, FM, AM, USB
4 TV VOL (volume) +/– button (40, 42)
5 CHANNEL +/– button (40– 44)
6 • Operating buttons for video components (40, 41, 43, 44)
, 3, REW, 4, 7, 8, FF, ¢
• Operating buttons for tuner (31, 32)
( TUNING, TUNING 9
7 SETTING button (20, 22)
8 • Cursor buttons* (
3, 2, 5, ∞) (20, 22, 27, 41, 44)
• SET button* (20, 22, 27, 41, 44)
9 ADJUST button (27)
p VIDEO INPUT button (17)
q AUDIO INPUT button (16)
w DECODE MODE button (18)
e EX/ES/PLIIx button (24)
r Adjusting buttons for Digital Equalizer (28)
D.EQ FREQ, D.EQ LEVEL +/–
t Adjusting buttons for Surround/DSP modes’ parameters
C (center).TONE, EFFECT, LIVENESS (29, 30)
y Adjusting buttons for speaker and subwoofer output levels (28)
FRONT L +/–, FRONT R +/–, CENTER +/–, SUBWFR +/–,
SURR L +/–, SURR R +/–, S.BACK L +/–, S.BACK R +/–
u SURROUND button (37)
i VOLUME +/– button (17)
o DVR/DVD mode selector (41, 44)
; MUTING button (18)
a DVD MENU button* (41, 44)
s EXIT button (20, 22, 27)
d • Numeric buttons (32, 40– 44)
1 – 10, 0, +10, 100+
• RETURN button (40)
• FM MODE button (32)
f MEMORY button (31)
g DIMMER button (18)
h B (bass).BOOST button (29)
j SLEEP button (19)
k MIDNIGHT button (25)
l TEST button (28)
* These buttons can be used for operating a JVC DVD recorder
or DVD player with the mode selector set to “DVR” or “DVD”
(see page 41).
If these buttons do not function normally, use the remote control
supplied with your DVD recorder or DVD player. Refer also to
the manuals supplied with the DVD recorder or DVD player for
details.
• When operating a DVD recorder (for JVC products
ONLY), set the mode selector (o) to “DVR.”
• When operating a DVD player, set the mode selector (o)
to “DVD.”
Parts identification
To open the cover of the remote
control, push here then slide
downward.
