JVC RX-D401S User Manual

Page 25

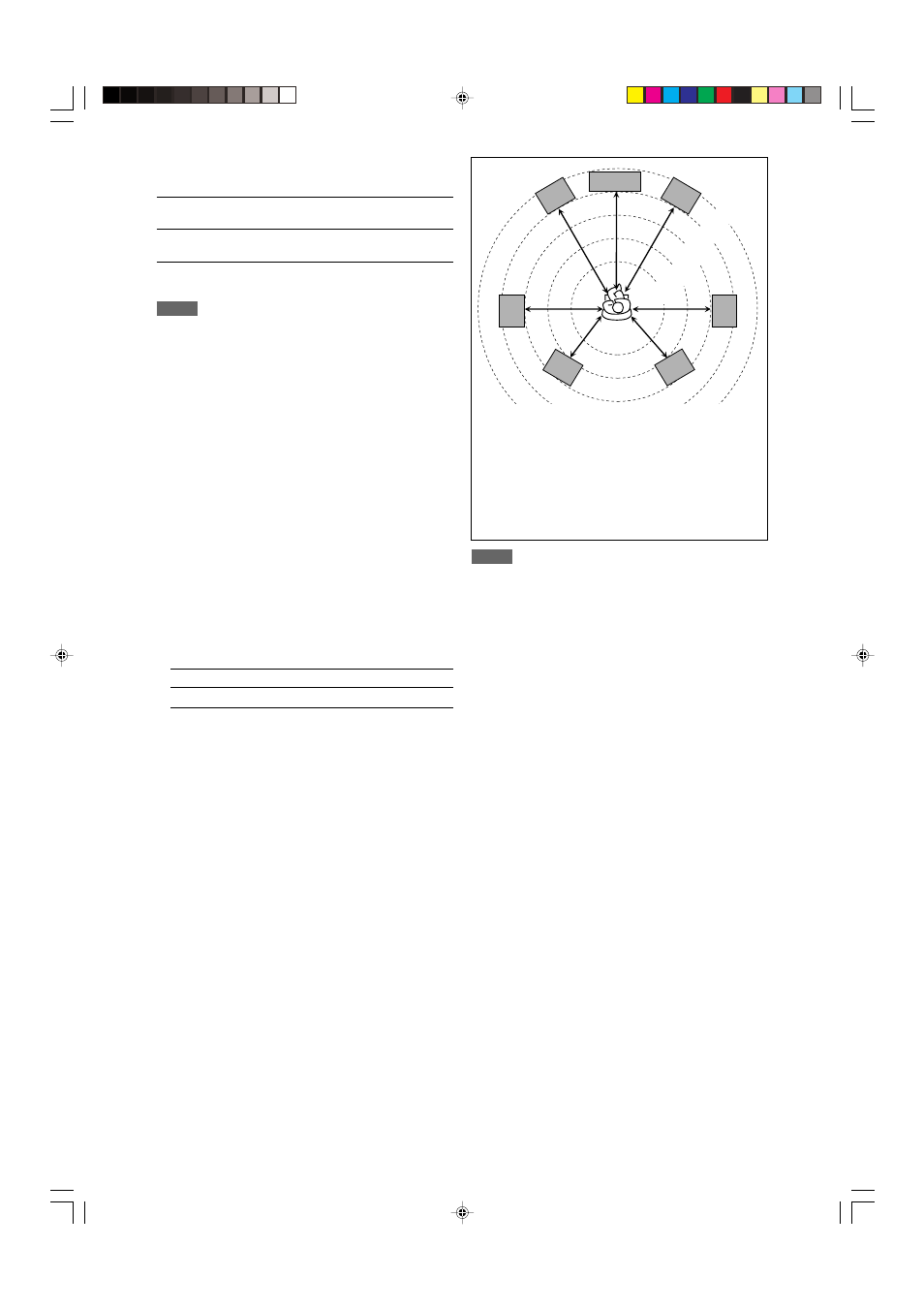

In this case, set the distance as follows:
Left front speaker (FL):

“FRONT L <3.0m> (10ft)”

Right front speaker (FR):

“FRONT R <3.0m> (10ft)”

Center speaker (C):

“CENTER <3.0m> (10ft)”

Left surround speaker (SL):

“SURR L <2.7m> (9ft)”

Right surround speaker (SR):

“SURR R <2.7m> (9ft)”

Left surround back speaker (SBL) :

“S BACK L <2.4m> (8ft)”

Right surround back speaker (SBR) : “S BACK R <2.4m> (8ft)”

NOTES

• You cannot set the speaker distance for the speakers you have

set to “NO.”

• If you have selected “SB OUT

1SPK

” for “S BACK OUT”

(see the left column), “S BACK DIST” appears instead of “S
BACK L DIST” and “S BACK R DIST.”

Setting the surround back speaker(s)—S BACK OUT

SB OUT

1SPK

Select when you use 1 surround back
speaker.

SB OUT

2SPK

Select when you use 2 surround back
speakers.

Initial setting: SB OUT

2SPK

NOTES

• If you have selected “SML (small)” for the front speaker size,

you cannot select “LRG (large)” for other speakers.

• When “SUBWOOFER” is set to “SUBWFR

,” the front

speaker size is fixed to “LRG” (and you cannot select “SML”).

• When “SURROUND SPK” is set to “SML (small),” you cannot

select “LRG (large)” for the surround back speaker.

• When “SURROUND SPK” is set to “NO,” the surround back

speaker is fixed to “NO.”

• When “S BACK SPK” is set to “NO,” you cannot select “S BACK

OUT.”

• When “S BACK OUT” is set to “SB OUT

1SPK

,” connect the

surround back speaker to the left surround back speaker
terminal (see page 8). No sound comes from the surround back
speaker if you connect it to the right surround back speaker
terminal.

Setting the speaker distance

The distance from your listening point to the speakers is one of
the important elements to obtain the best possible sound effect
from the Surround/DSP modes.
By referring to the speaker distance, the receiver automatically
sets the delay time of the sound through each speaker so that
sounds through all the speakers can reach you at the same time.
7 Measuring unit—DIST UNIT

Select which measuring unit you use.

UNIT

meter

Select to set the distance in meters.

UNIT

feet

Select to set the distance in feet.

Initial setting: UNIT

meter

7 Speaker distance—

FRONT L DIST (for the left front speaker),
FRONT R DIST (for the right front speaker),
CENTER DIST (for the center speaker),
SURR L DIST (for the left surround speaker),
SURR R DIST (for the right surround speaker),
S BACK L DIST (for the left surround back speaker),
S BACK R DIST (for the right surround back speaker)

Adjustable range: 0.3 m to 9.0 m in 0.3 m intervals

(1 ft to 30 ft in 1 ft intervals)

Initial setting: 3.0 m (10 ft) for all speakers

SBL

SBR

2.1 m

(7 ft)

2.4 m

(8 ft)

2.7 m

(9 ft)

3.0 m

(10 ft)

3.3 m

(11 ft)
