10
ı О ‰ П М З
Е
DVR
OUT(REC)
DVR/DVD
IN(PLAY)
Y
P B
P R
COMPONENT VIDEO
MONITOR
OUT
DVR/DVD
IN
VCR(DBS)
IN
DVR
OUT(REC)
DVR/DVD
IN(PLAY)
FRONT
Audio/video connection
In addition to the HDMI terminal, this receiver is equipped with three
video terminals—composite video, S-video, and component video
terminals, and two audio jacks—analog discrete 5.1 channel audio input
jacks (DVD MULTI IN), and stereo audio jacks.
• If your video components have S-video (Y/C-separation) and/or
component video (Y, P B , P R ) jacks, connect them using an S-
video cable (not supplied) or component video cable (not
supplied). By using these terminals, you can get a better picture
quality in the order:
Component > S-video > Composite
IMPORTANT:
The video signals from one type of these input jacks are
transmitted only through the video output jacks of the same
type. Therefore, if a recording video component and a playing
video component are connected to the receiver through the video
terminals of different type, you cannot record the picture. In
addition, if the TV and a playing video component are connected
to the receiver through the video terminals of different type, you
cannot view the playback picture on the TV.
NOTES
• Select the audio and video input setting according to the connection method.
See pages 16 and 17 for details.
• You can enjoy digital sound if using a digital coaxial or optical cable. When
shipped from the factory, the digital coaxial terminal (DIGITAL IN 1 (DVR/
DVD)) on the rear of the receiver is set for a DVD recorder and DVD player.
For details of digital audio connection, see page 14.
DO NOT use a TV through a VCR or a TV with a built-in
VCR; otherwise, the picture may be distorted.
CAUTION:
If you connect a sound-enhancing device such as a graphic
equalizer between the source components and this receiver, the
sound output through this receiver may be distorted.
If your video components have AV COMPU LINK terminal
See also page 38 for detailed information about the connection
and the AV COMPU LINK remote control system.
Å To component video output
• Connect Y, P B , and P R correctly.
ı To left/right audio channel output
Ç Only for DVD recorder: To left/right audio
channel input
Î To composite video output
‰ To S-video output
Ï Only for DVD recorder: To S-video input
Ì Only for DVD recorder: To composite
video input

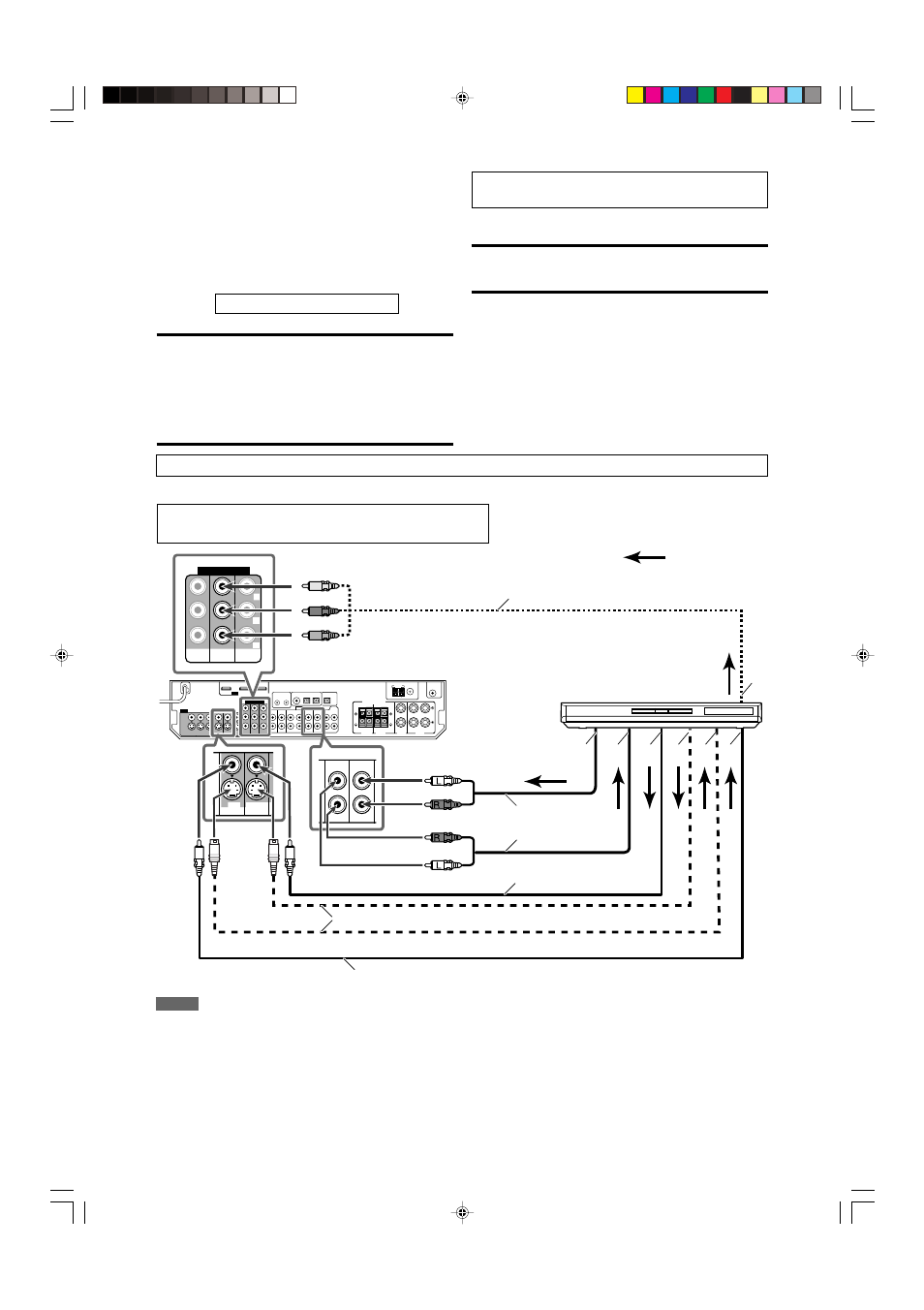

7 Connecting a DVD recorder or DVD player with its stereo output jacks:
White
Red
DVD recorder or
DVD player
White
Red
Stereo audio cable
(not supplied)
Green
Blue
Red
Component video cable (not supplied)
S-video cable (not supplied)
Composite video cable
(not supplied)
Composite video cable (not supplied)
Do not connect the AC power plug to the wall outlet until all connections are completed.
: signal current
Turn off all components before making connections.
• When you connect other components, refer also to their manuals.
