COMPU LINK EX

COMPU LINK-III

COMPU LINK

COMPU LINK-

III

AV COMPU LINK
remote control
system

The AV COMPU LINK remote control system allows you to
operate JVC’s video components (TV, DVD player*, and VCR)
through this receiver.

This receiver is equipped with the AV COMPU LINK-III, which has
added a function to operate JVC’s video components through the
component video jacks. To use this remote control system, you
need to connect the video components you want to operate,
following the diagrams below and the procedures on page 37.
• Refer also to the manuals supplied with your video components.

* “DVD player” on pages 38 and 39 can be replaced with “DVD

recorder.”

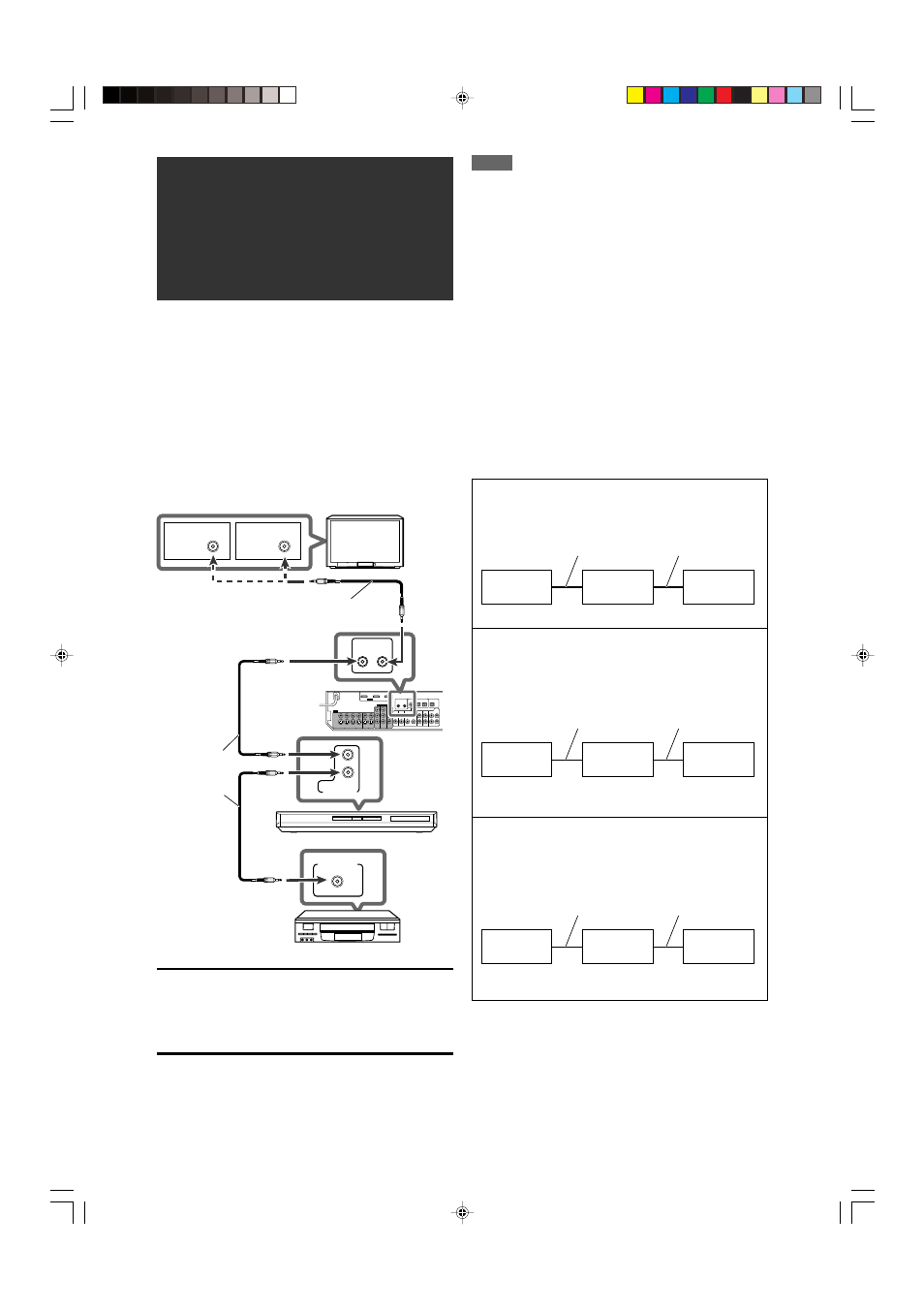

Connections 1: AV COMPU LINK connection

NOTES

• When connecting the receiver and a TV with the AV COMPU LINK

EX terminal by using a component video cable, you cannot use
Automatic selection of TV’s input mode (see page 39).

• When connecting only the VCR and DVD player to this receiver,

connect it directly to the receiver using cable with the monaural
mini-plugs.

• You can connect only the TV with AV COMPU LINK EX or AV

COMPU LINK-III terminal to the AV COMPU LINK-III terminal.

Connections 2: Video cable connection

This receiver is equipped with three types of the video terminals
other than the HDMI terminals—composite video, S-video, and
component video, and the signals coming into this receiver
through one type of video terminals can output only through the
terminal of the same type. So you need to connect the video
components to this receiver using one of the following three ways.
• When using the AV COMPU LINK remote control system, set

the video output and video input setting for the DVD player and
the VCR correctly (see “Selecting the video input setting” on
page 16 and “Selecting the output video signals—VIDEO
OUTPUT” on page 26); otherwise, the correct input for this
receiver will not be selected on the TV.

To video input 1

S-video cable

VCR

DVD player

Monaural mini-plugs
(not supplied)

Case 1:
When connecting the source equipment to the receiver
through the S-video terminals, connect this receiver to the
TV’s video input 1 terminal using S-video cables.

Monaural
mini-plugs
(not supplied)

IMPORTANT:

• The AV COMPU LINK remote control system cannot control the

DBS tuner connected to the DBS IN jacks.

• When “VIDEO OUTPUT” is set to “VIDEO

HDMI

” (see page

26), the AV COMPU LINK remote control system may not
operate properly. In this case, do not make the AV COMPU
LINK connection.

Case 2:
When connecting the source equipment to the receiver
through the composite video jacks, connect this receiver
to the TV’s video input 2 terminal (composite video input)
using composite video cables.

Case 3:
When connecting the source equipment to the receiver
through the component video jacks, connect this receiver
to the TV’s video input 2 terminals (component video
input) using component video cables.

To video input 2
(Composite)

Composite video cable

To video input 2
(Component)

Component video cable

Source

equipment

Source

equipment

RX-D401S
RX-D402B

Source

equipment

RX-D401S
RX-D402B
